ทางบริษัทฯ เป็นตัวแทนจำหน่ายอย่างเป็นทางการจากโรงงานผู้ผลิต ที่ได้รับการรับรองมาตรฐาน ISO 9001
ยี่ห้อ Carver จากประเทศสหรัฐอเมริกา
Standard Bench Manual Presses for Laboratory Use
Heated Lab Presses with Digital Temperature Controls and Safety Shields in Varying Capacities
These manually heated bench top lab presses have digital temperature controls and safety shields and are available in 7.5, 12, 25 and 30 ton capacities and two and four post configurations. They are used for molding, laminating, embossing and bonding of various materials in a laboratory setting.

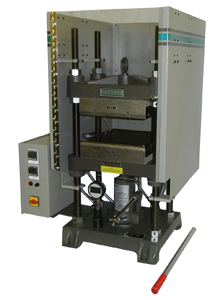

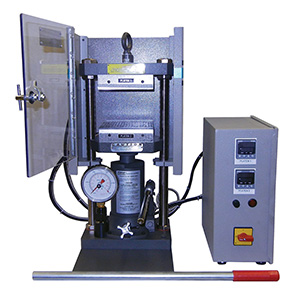

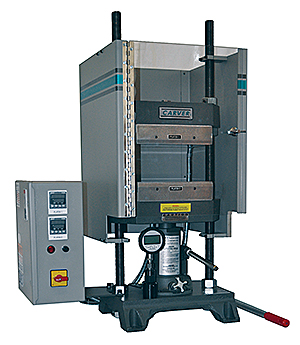

NOTE: Pictures shown with both analog gauge and digital gauge. Standard manual presses come with analog gauge. Digital gauges available upon request. Consult factory for details. Please click on the images below for more information on that specific press model.
| Catalog Number | 3690 | 5420 | 4386 | 4120 | 4122 | 4123 | 4389 | 3856 | 4126 | 3693 | 4128 | 4129 |
| Model | 7.5-15 | Mini CH | CH | 12-10H | 12-12H | 12- 12H,C |
MH,C | 25-12H | 25- 12H,C |
25-15 | 30-12H | 30-12- 2H |
| Old Press Number | 3736 | 2086 | 3725 & 2625 |
2697 & 2625 |
3377 & 2729 |
2089 | 2518 | 2730 | 3737 | 2699 & 2629 |
2731 | |
| Clamping Force: U.S. Tons |
7.5 | 12 | 12 | 12 | 12 | 12 | 25 | 25 | 25 | 25 | 30 | 30 |
| Clamping Force: (lb) |
15,000 | 24,000 | 24,000 | 24,000 | 24,000 | 24,000 | 50,000 | 50,000 | 50,000 | 50,000 | 60,000 | 60,000 |
| Max. Temperature (°F) |
650° | 650° | 650° | 650° | 650° | 650° | 650° | 650° | 650° | 650° | 650° | 650° |
| Platens (in) |
15 x 15 | 6 x 6 | 6 x 6 | 10 x 7 | 12 x 12 | 12 x 12 | 9 x 9 | 12 x 12 | 12 x 12 | 15 x 15 | 12 x 12 | 12 x 12 |
| Ram Stroke (in) |
5.1 | 5.1 | 5.1 | 5.1 | 5.1 | 5.125 | 6.5 | 6.5 | 6.5 | 6.5 | 6 | 6 |
| Daylight Opening (in) |
5 | 0 to 4 | 0 to 15 | 0 to 9 | 0 to 10 | 2 @ 2.5 | 2 @ 3 | 0 to 9.5 | 2 @ 3 | 5 | 0 to 12 | 2 @ 3 |
| Overall Size w x d (in) |
32 x 28 | 19 x 16 | 19 x 16 | 26 x 18 | 29 x 27 | 29 x 27 | 23 x 24 | 29 x 27 | 29 x 27 | 32 x 28 | 32 x 27 | 32 x 27 |
| Height (in) |
30 | 25 | 39 | 39 | 44 | 46 | 38 | 42 | 46 | 35 | 46 | 46 |
| Weight (lb) |
900 | 225 | 300 | 420 | 770 | 1,062 | 450 | 805 | 1,065 | 1,200 | 835 | 1,100 |
