หมวดหมู่สินค้า: Auto Compression Densimeter
เครื่องมือที่ใช้วัดว่าวัสดุมีความหนาแน่น (Density) มากน้อยแค่ไหนโดยใช้แรงกด/แรงอัดกับตัวอย่าง และเครื่องจะทำงานแบบอัตโนมัติทั้งหมด
ราคา 0.00 บาท
01 เมษายน 2569
ผู้ชม 6 ผู้ชม

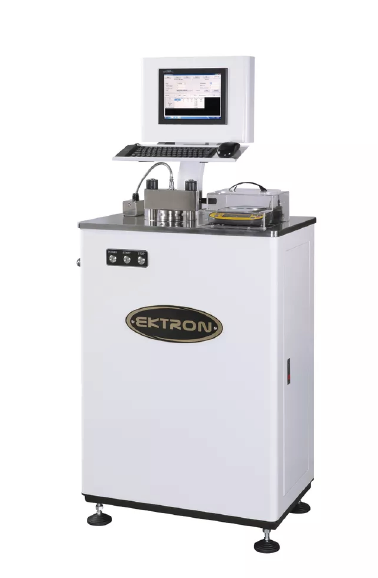

Auto Compression Densimeter
| Model : EKT-2005CDR |
|---|
| EKT-2005CDR Auto Compression Densimeter is a new design auto system to measure the density of uncured rubber compounds or polymers. |
| Description |
|---|
|
EKT-2005CDR Auto Compression Densimeter is a new design auto system to measure the density of uncured rubber compounds or polymers. |
| Dimensions | 680mm (W) x486mm(D) x1614mm(H) |
| Power supply |
200-240V, 50/60Hz +N +PE
or 115-127V, 50/60Hz
|
| Accuracy | 0.1% (0.001 g/cm3) |
| Integrated scale | Resolution 1 mg |
| Pneumatics |
Necessary air supply pressure: 5.5-10 bar
Pressure range for compression: 4.5-5.5 bar
|
|
Environmental
requirements for testing operation
|
+5°C ~ +45°C
Relative humidity: 5-95%
|
|
Compression cylinder
|
Diameter: 59mm
Max stroke: 80mm
Sample volume: 40-120 cm3, 100 cm3 is recommended
|
|
Instrument functions
|
Basic functions:
|
| Features |
|---|
|
Friendly software design can help the user to operate the process quickly. A quality control software can check the rubber compounds or polymers iswithin the upper limit and lower limit quality. Pass/Fail status warning will be displayed on the monitor and have a buzz voice warning. A powerful data base system can save all the testing data and can be called out.
The measuring process is as follows:
|
|
|
|
Then the sample is compressed to a specific volume. |
|
From the displacement of cylinder the volume of sample is calculated. |
|
From the volume and mass of sample the density of sample is calculated. |
|
All these processes are done by the computer control and displayed on the monitor automatically. |
