ตู้ทดสอบโอโซน ((Paper Recorder/Temp:Ambient +10~60℃)  ยี่ห้อ Ektron Tek ตู้ทดสอบโอโซน ((Paper Recorder/Temp:Ambient +10~60℃)  ยี่ห้อ Ektron Tek
หมวดหมู่สินค้า: Automatic Ozone Test Chamber Series
ตู้ทดสอบการเสื่อมสภาพของยางและโพลิเมอร์ด้วยก๊าซโอโซนโดยรุ่นนี้มีจุดเด่นคือ ระบบบันทึกข้อมูลแบบกระดาษ (Paper Recorder) และควบคุมอุณหภูมิได้ที่ สูงกว่าอุณหภูมิห้อง +10°C ถึง 60°C
ราคา 0.00 บาท

แท็ก:

31 มีนาคม 2569

ผู้ชม 5 ผู้ชม

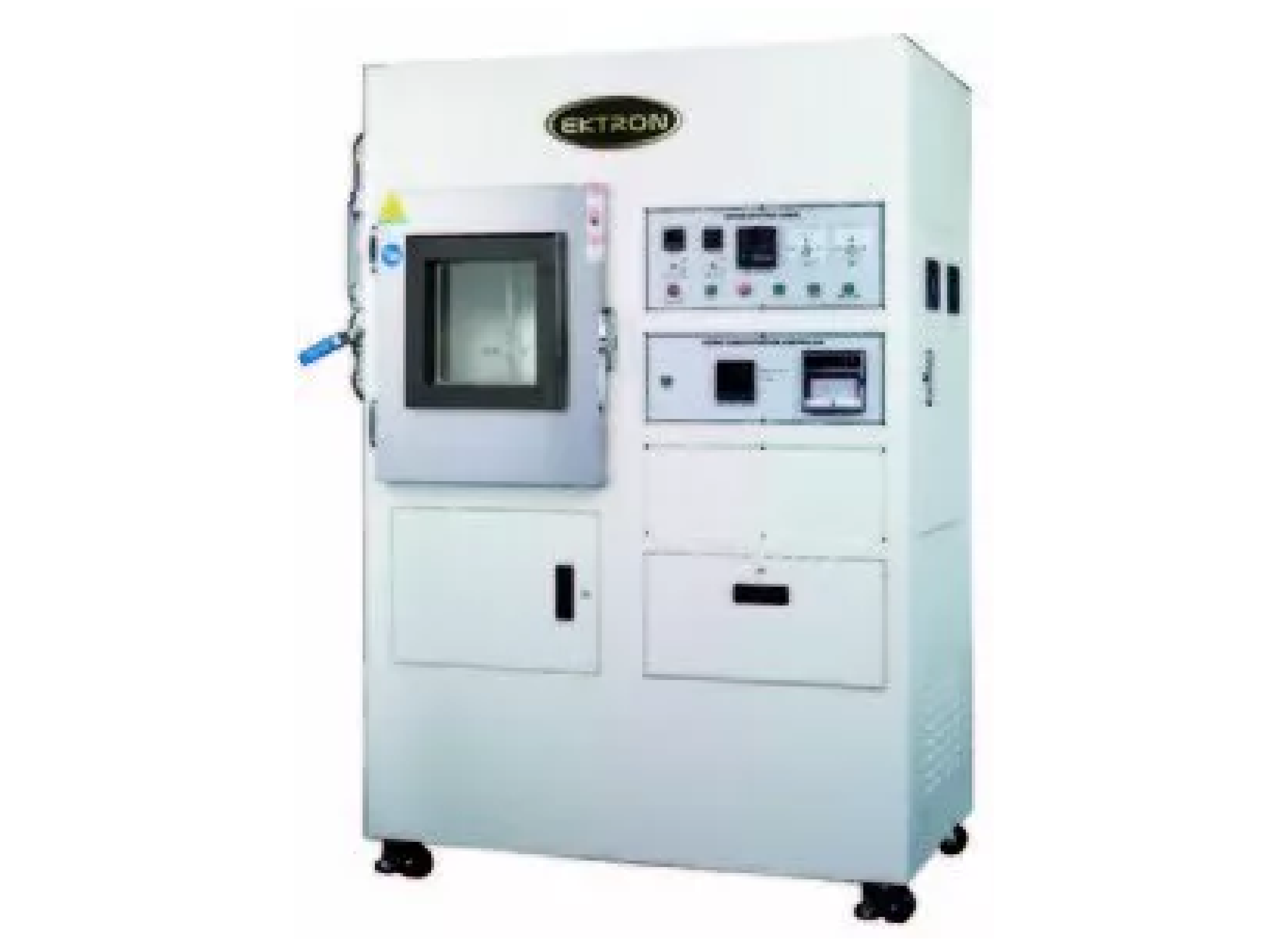

Ozone Test Chamber
(Paper Recorder/Temp:Ambient +10~60℃)

Model : EKT-2001OZ-HPSSX
  • Ozone generated by Ultraviolet rays
  • Customer-specific solutions (e.g. Tire, hose, belt, etc.)
  • Providing selective static and dynamic testing mode
  • Paper Recorder/Humidity: Optional/Temp:Ambient +10~60℃
Description
  • Designed and manufactured in accordance with ASTM D1149, ISO1431 & JIS K6259 standards.
  • Providing precise and accurate ozone (OZ) concentration environment for rubber and polymer test.
  • Widely applied to (1) Accelerated ageing research (2) Quality control and assurance tests and (3) R&D laboratory formula experiments for cracking resistance.
  • Wide ranges of ozone concentration (normal 20~250pphm, or according to customer's request) can satisfy user's different requirements.
  • The real ozone concentration is controlled and measured accurately by means of precise detecting system.

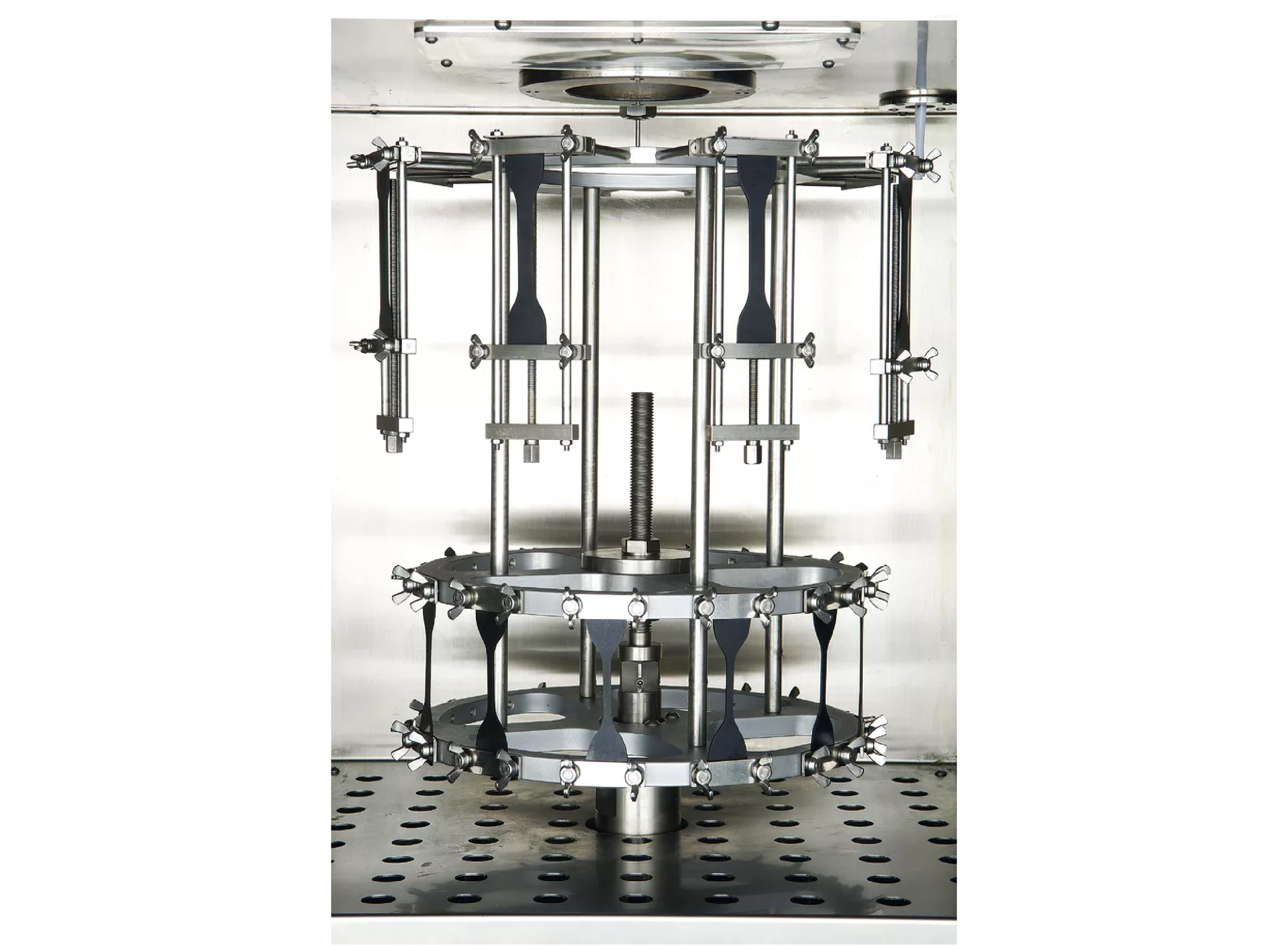

  • The ozone test chamber provides both static and dynamic strain sample holders that conform to international standards.
  • Excellent system control: (1) Maintaining rapid resumption of OZ concentration during continuous circulation (2) With the ability of automatically and steadily keeping the chamber temperature.
  • Economy and efficiency: (1) Full automatic test after simple settings (2) Physical method produced ozone unnecessary any chemical additives.
Specifications
Model: EKT-2001OZ-HPSSX
Ozone Concentration Range: 25~250pphm
Data Record Type: Paper Recorder
Temperature Range: Ambient +10~60℃
Chamber Size(HxWxD): 50x50x50cm
