ชุดเครื่องทดสอบยางรถยนต์ (Tire Testing Series) ยี่ห้อ Ektron Tek

หมวดหมู่สินค้า: Tire Tester Series

ชุดเครื่องมือหรือระบบการทดสอบยางรถยนต์แบบครบวงจรที่รวมอุปกรณ์หลายชนิดไว้เพื่อใช้ตรวจสอบ คุณภาพ ความปลอดภัย และสมรรถนะของยาง

ราคา 0.00 บาท

แท็ก:

31 มีนาคม 2569

ผู้ชม 4 ผู้ชม

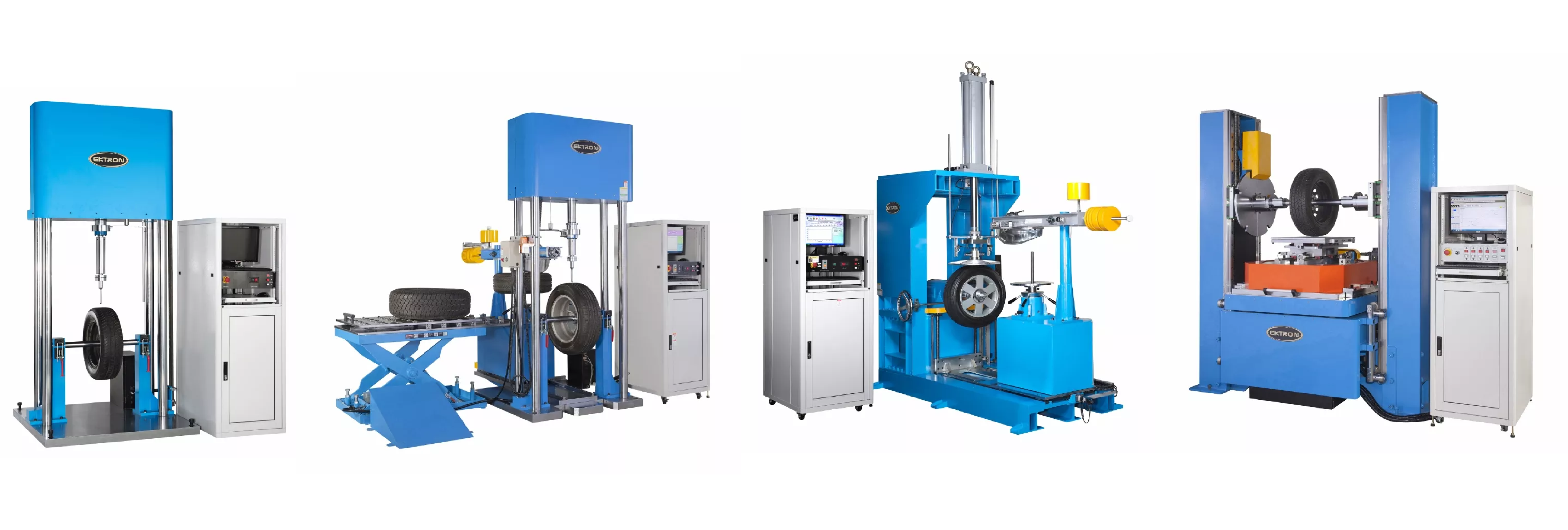

Tire Testing Series

Model : PL-2000 Series

• Computerize automatic control

• Measure plunger energy, Bead unseating force, Tread foot print pressure distribution, Lateral elasticity, Radial elasticity…etc.

• Overload protection device

Description
New generation of PL-2000X series Plunger Tester, the tire testing machine equipped with servo-hydraulic system to control the testing speed, are available for customers to select the suitable model.
Designed and manufactured in accordance with ASTM F414, DOT571.109, F870 & JIS D4230 standards.
Plug Test functions include Radial elasticity test, Tread footprints test, Tire dimension test, Bead unseating test, Lateral elasticity test and Pressure distribution analysis for Footprints. (Note: Test function is different from machine's models)
Wide range capacities of load cells are available for customers to select the suitable ones to test the different sizes of tires.
Different operations modules are designed in accordance with different test functions. They can simplify the procedures of operation settings and efficiently manage the massive data.
Software provides three types of mean calculations, including Arithmetic mean, Weighted mean, and Median mean.
During the test, data and curves will be displayed on the monitor and then they will be saved automatically into the memory device such as hard dish when the operatio is done.
Tire Tread Analysis System (TTAS), the latest professional software developed by Ektron Tek, is used to deal with the pressure value of each point in the area of footprints; and then provides digital pressure values and color image of pressure distribution.

Models	Plunger Energy	Bead Unseating	Vertical Elasticity	Lateral Elasticity	Footprints Tread Area
PL-2001	V	-----	-----	-----	-----
PL-2001 B	V	-----	-----	-----	-----
PL-2002	V	V	-----	-----	-----
PL-2002 B	V	V	-----	-----	-----
PL-2003	V	V	Optional	Optional	Optional
PL-2004	V	V	-----	-----	-----
PL-2004 B	V	V	-----	-----	-----
PL-2000 X	Custom Need of Structure and Spec.	Custom Need of Structure and Spec.	Custom Need of Structure and Spec.	Custom Need of Structure and Spec.	Custom Need of Structure and Spec.
