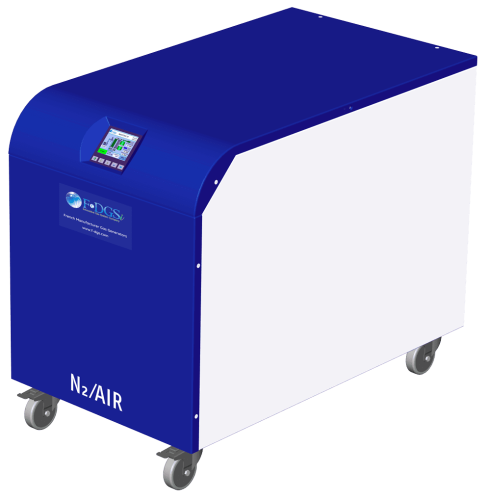

The ZEPHYR Nitrogen provides nitrogen solution for Circular Dichroism Spectrometer.
The ZEPHYR is built-in with integrated oil free air compressor using the Energy Saving Technology mode (EST). It is extremely compact and quiet in operation.
The generator is controlled using the latest in color touch screen technology to display the process in real time, outlet pressure, N2 Flow and status of the system with remote access for diagnostic control.
Utilizing Smart Triple Filtration and Advanced technology PSA of separating Nitrogen and Oxygen to produce high quality Nitrogen gas on demand 24/7.
Advantages product
INCREASED LABORATORY EFFICIENCY
A constant, uninterrupted gas supply of guaranteed purity eliminates interruptions of analyses to change cylinders and reduces the amount of instrument re-calibrations required.
IMPROVED ECONOMY
Pure nitrogen gas produced as standard.
IMPROVED SAFETY
Nitrogen produced at low pressure and ambient temperature removes the need for high pressure cylinders.
SECURITY OF SUPPLY
Integral oil free air compressor as an option guarantees continuous gas supply, independent of in house compressed air supply.
SIMPLE INSTALLATION
Gas generators can be installed in the laboratory, on or under a bench, eliminating the need for long gas lines from cylinders secured elsewhere.
Characteristics
- Technologie PSA entièrement régénérative
- Technologie d'écran tactile HMI pour afficher le processus en temps réel, y compris les variables de processus.
- Compresseur sans huile intégral : alimentation totalement sécurisée
- Silrnt thanks to the Soundproofed compressor box and anti-vibration features
- Auto start
- Audible alarm display and Visual maintenance indication with history log
- Outlet flow indicator
- Energy Saving Mode: Enables the compressor to switch off when nitrogen supply is not required
- Remote PC monitoring via USB port
- Fit with wheels
Specifications
| Models Compressor GENERALS INFORMATIONS |
ZEPHYR.20 |
| 1 (With) | |
| Nitrogen Flow rate | Up to 20 L/min |
| Nitrogen pressure | 7 bar (101 psi) |
| Nitrogen purity* | Up to 99,999% ; N2 dewpoint: -55°C (-67°F) |
| Particles | 0.01 μ |
| Touch screen | Touch screen (operating parameters, system status, alarms and maintenance) |
| Max Relative Humidity | 80% RH @ 25°C (77°F) |
| Temperature range | From 5 – 35°C (41 – 95°F) |
| Max Altitude | 3000 Meters |
| Noise level @ 1M | 53 dB (A) |
| Dimensions (W x H x D) |
47.5 x 66.2 x 79 cm (18.7″ x 26″ x 31″) |
| Weight (kg/lbs) | 118 / 260 |
| Power consumption | 1550 W |
| Electrical supply | 220 – 240 V ac / 1 ph / 50 – 60 Hz |
| 110 – 120 V ac / 1 ph / 50 – 60 Hz | |
| Fuse | 10A |
| CONNECTIONS | |
| Nitrogen outlet | 1/4” GF |
| COMMUNICATION | |
| USB/PC Control | In series |
