Furniture Universal Testing Machine is used for testing the mechanical properties of tables, desks, beds and chairs.
Product Detail

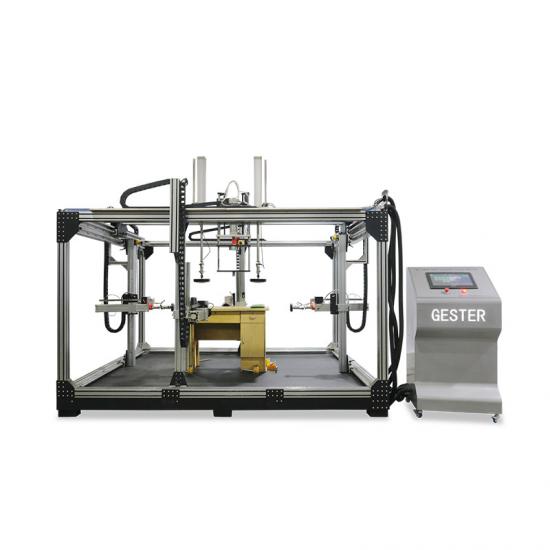

Furniture Universal Testing Machine GT-LA10
Product Introduction
Application:
This Furniture Testing Equipment is used for testing the mechanical properties of tables, desks, beds and chairs. Can perform the horizontal static load, vertical static load, impact test and durability test.
Feature:
1. The Furniture Universal Testing Machine adopts frame structure design. The frame is made of high quality industrial aluminum, beautiful and generous.
2. Up to 7 sets of cylinders installed, one set on each side, three on top frame. All cylinders can be adjusted up and down, frontward and backward to cover all mounting surfaces. The seven sets of cylinders can execute joint or independent operation.
3. The bottom fixed block is free to adjust the position to accommodate different specifications of the sample.
4. PC controller to control the actions of the instrument; the operation is intuitive and simple.
5. Furniture Universal Testing Machine Using the precision pressure regulating valve to adjust the pressure to change the loading force value; high precision force sensor sense the force value immediately; each load group adjusts the control individually; the loading force is stable and reliable.
6. Removable loading pad, can easily change the different loading pad to meet the different test requirements.
Standards:
|
Tables & Desks |
EN1730-2012 Section 6.2, 6.3, 6.4,6.5, 6.6, 7.2, 7.3 , BS EN 15372-2016 Test1, Test2,Test3,Test5, Test6,Test8,Test10, AS NZS 4610.3-1999 Annex B,D,E,G,N,P,R AS NZS 4442-1997 Annex A,B,H,J EN527-3, EN581-3, GB/T 10357.1, BIFMA X5.5 - 2014, BIFMA X5.6 - 2010, BIFMA X5.9 - 2012, |
|
Chairs
|
EN 1728-2012 Section 6.4, 6.5, 6.7, 6.12, 6.15, 6.16, 6.17, 6.24,7.3, 7.4,7.9, 8.2, 8.4.1,8.5 , 8.8（6.25, 6.26 optional accessories) EN581-2-2015 (corresponding with EN1728-2012), EN1335-3 -2009 Section 7.2.1, 7.2.2, 7.3.1 EN 1729-2-2012 Section 5.3.2, 5.3.3, 5.3.5, 5.3.6, 5.3.7（5.3.8 need the optional accessories) EN 16139-2013 (corresponding with EN1728-2012) ISO 7173-1989 Section 7.1, 7.2, 7.3, 7.5, 7.6, 7.7, 7.8, 7.10 (7.11,7.12 need the optional accessories) BS5459-2-2000 Section A5.1 5.2 (A5.3, A7.4 need the optional accessories） BS5459-2-2000 Section A5.2, BIFMA X5.1 - 2017 Section 7, 10.3 QB/T 2280-2007 Section 6.6.4, 6.6.3, 6.6.9 , 6.6.13.1 GB/T 10357.3 -2013 Section 4.3, 4.4,4.7,4.8,4.10,4.11,6.9 (4.13,4.14 need the optional accessories) |
|
Bed |
EN 747-2 Section 5.4,5.5,5.6.1,5.7,5.8 |
Key Specifications
| Model | GT-LA10 |
|---|---|
| Frame space | 2.5×2.5×2.2m (Other configurations available on application) |
| Control method | PC control |
| Load cell | 3KN |
| Power supply | 1Φ, AC 220V |
Accessories:
Standard Accessories
|
Standard Accessories |
4 sets | Horizontal loading device |
| 3 sets | Vertical loading device | |
| 1 set | GT-LB01-6 Seat Impactor Device | |
| 1 set(350Lbs) | GT-LB01-11 BIFMA Bag Type Impactor device | |
| 8 pcs | GT-LB01-5 Local loading pad | |
| 2pcs | GT-LB01-3 Smaller seat loading pad | |
| 1pc | GT-LB01-4 Back loading pad | |
| 1pc | GT-LB01-2A Seat loading pad | |
| 4pcs | Stoppers | |
| 1pc | Stationary fixture | |
| 1pc | GT-LB01-1A Loading point template | |
| Optional accessories | 1set | GT-LB01-7 Impact hammer |
| 1pc | GT-LA12 Bunk Bed Test Mass | |
| 4 pcs | 75mm×75mm Loading pad | |
| 1set | 100kg Disc superimposed weight | |
| 1pc | Φ300MM Loading pad |
