Product Detail

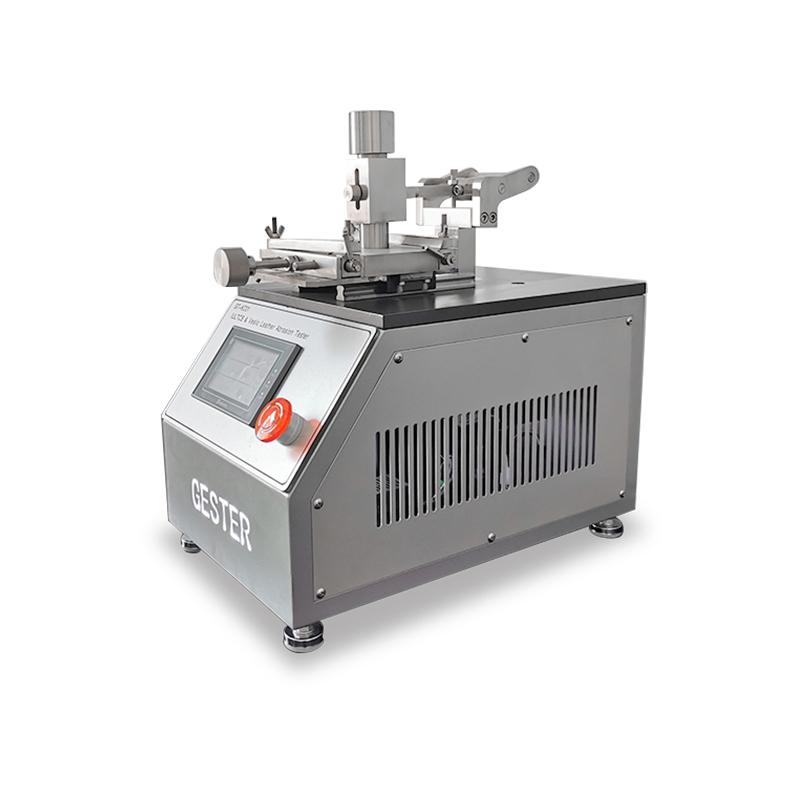

IULTCS & Veslic Leather Abrasion Tester GT-KC01-1
Product Introduction of veslic tester
Application:
This IULTCS & Veslic Leather Abrasion Tester is used for color fastness testing of leather, plastic and textile. Under the specified pressure, let white wool felt to do reciprocating abrasion to the surface of dye sample. After a specified count, to assess the color fastness of sample by checking the color change and fading of sample and the discoloration of white wool felt. Rubbing Fastness Tester can be used for dry abrasion testing and wet abrasion test.
Standards:
DIN 4843, ISO 11640, SATRA PM 173, AS/NZS 2210.2 section7.3
QB/T 2537, GB/T 20991 section 7.3, ISO 20868,
EN ISO20344 section 7.3, ISO 17700 Method A, GE-29
Key Specifications of veslic tester
| Model | GT-KC01-1 |
| Position | 1 |

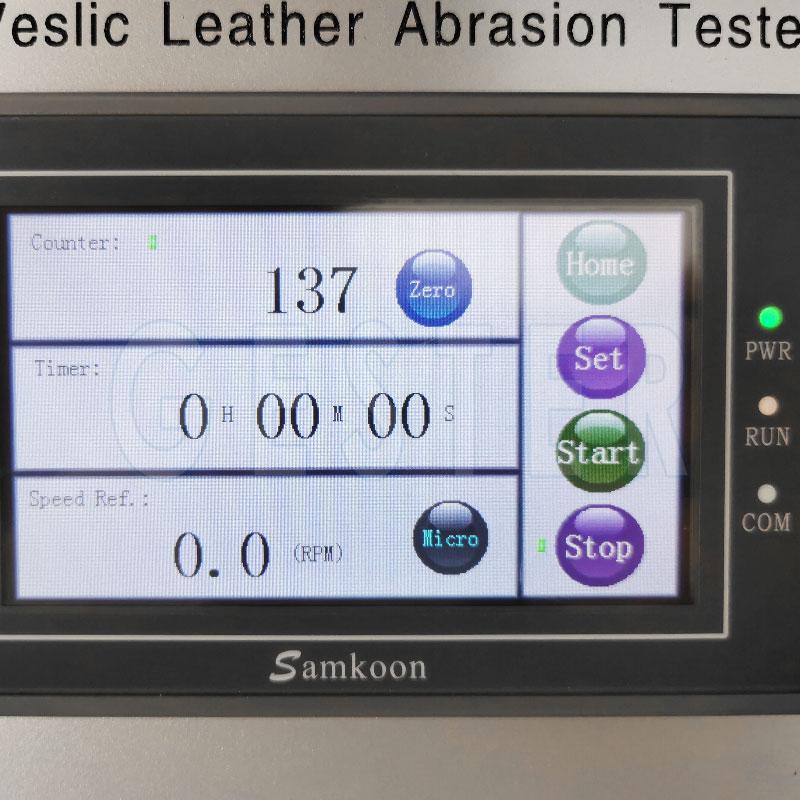

| Control mode | Touch screen control |
| Area of testing head | 15mm x 15mm |
| Movement speed | 40 ± 2 times / min. |
| Rubbing stroke | 35~40 mm |
| Rubbing finger mass | 500g |
| Additional weight mass | 500g |
| Fixtures distance | 80mm |
| Sample size | 120x20mm |
| Tension extension range of sample | 0 ~ 20% |
| Power supply | 1∮AC 220V 50/60HZ |
| Dimensions (L x W x H) | 490x340x550mm |
| Weight | 33kg |
Application Industry of veslic tester
All kinds of materials can be tested on the IULTCS & Veslic Leather Abrasion Tester
