| +2 / +15°C Temperature range |
620 lt (21.89 cu ft)
Capacity |
|
75 x 84,5 x 210 cm
External dimensions (WxDxH) |
TOUCH Electronic Controller |

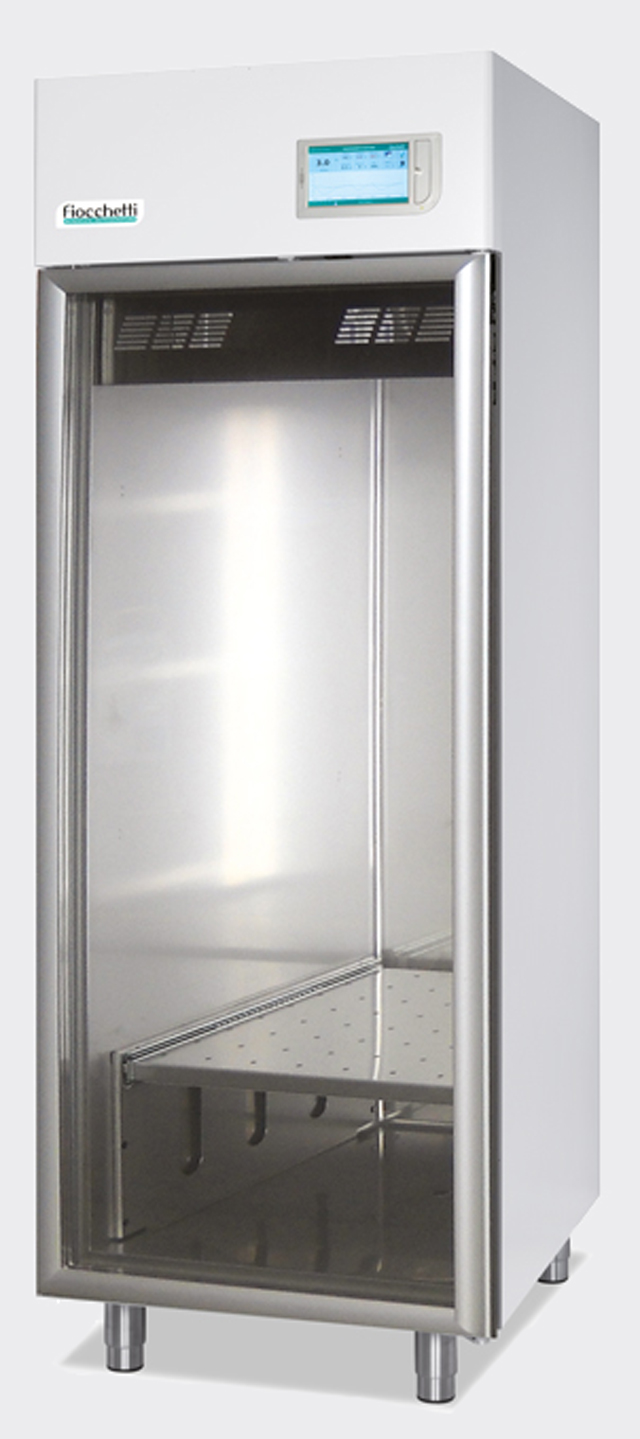

Chromatography refrigerator with touch screen display and featuring data recording
Refrigerators series CROMATOGRAFIA feature a clean and functional design, specific for laboratories, with internal structure made of stainless steel 18/10 AISI 304, with perforated stainless steel shelf with increased capacity for the introduction of chromatographic devices, nr. 02 internal sockets and 35 mm cable hole.
The door is made of tempered glass according to safety norm CEI EN 60335-2-89, in antifog crystal, heat-insulating, triple layer for an improved thermal perfomance, with profiles in anodyzed aluminium. The all lenght ergonomic handle guarantees a safe and correct grip. The gasket is magnetic type sealing on all four sides, the automatic lock features a return spring, door stop at 90°, the opening side is reversible
|
STRUCTURE AND REFRIGERATION Inner dimensions: 60 x 68 x 150 cm Nominal capacity: 700 l (24,72 cu ft) Net capacity : 620 l (21,89 cu ft) Insulation type: Insulation in PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection. Insulation thickness: 75 mm Structure: Monocoque type, made of plasticized, atoxic white steel exterior, coated with a special antibacterial-type film, and in inner 18/10 Aisi 304 stainless steel. Inner bottom rounded corners. Nr 4 height adjustable feet included to grant maximum stability Interior lightning: Full LED, all lenght of inner chamber, with adjustable brightness Refrigeration type: Professional ventilated Defrost type: Automatic, adaptive, with vaporization of condensate water Power consumption reduction with function Night & Day |
 |
|
7" FULL TOUCH SCREEN ELECTRONIC CONTROLLER Microprocessor controller with FULL TOUCH SCREEN 7" interface for displaying all the dynamic values of the refrigerator, with 0.1°C resolution and ±0.3°C accuracy. As standard, it includes temperature and alarm recording and it simultaneously displays multi-trace real-time graph, current temperature and set-point (editable), alarm limits (editable), energy consumption and battery status(optional). Door with 3 slots for: SD card with data history, USB port for system download and update, SIM card slot (for GSM module , as optional). Further features: integrated Web Server for LAN (RJ45) and MODBUS TCP/IP network connection, anti-freeze and anti-overheating safety device, and dry contact for remote alarm signal Additional accessories, which can also be installed separately, are: electronic lock, acoustic and visual alarm for power failure, DMLP TOUCH module for independent recording of temperatures, GSM and Wi-Fi modules, external terminal board, and possibility of add local and cloud monitoring systems . Acoustic and visual alarms, silenceable, for any anomaly condition, with automatic recording. |
 |
|
REFRIGERATOR TECHNICAL DATA Refrigerant gas type: R290 |
 |
Sketch DrawingTechnical Data Sheet
