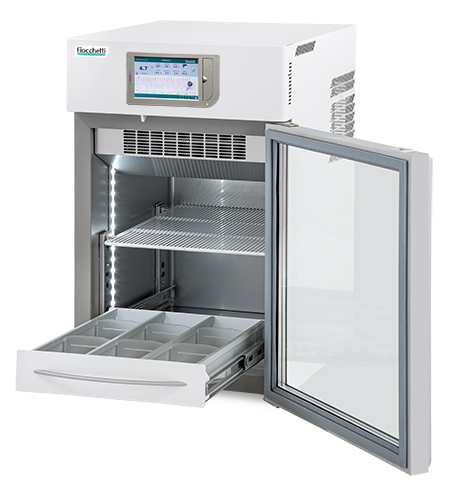

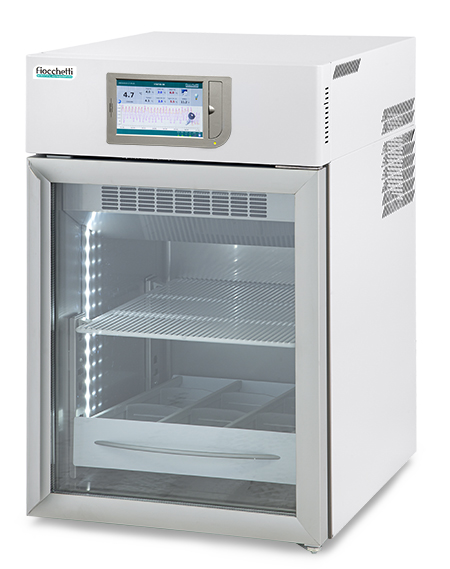

Small undercounter refrigerator for drugs and vaccines, glass door type, positive temperature range and featuring data recording, developped for pharmacies, laboratories, nursing homes, hospitals and private clinics
| +2 / +15°C Temperature range |
126 lt (4.45 cu ft) Capacity |
| 52 x 63,5 x 81,5 cm External dimensions (WxDxH) |
TOUCH Electronic Controller |
Undercounter refrigerator for drugs and vaccines, with touchscreen display, glass door type and temperatures data recording
The refrigerators for drugs and vaccines series MEDIKA® feature a clean and functional design, with glass door, and adjustable compartments to enhance product storage.
They have been design specifically for the use in pharmacies, hospital wards, physicians', aesthetic medicine, dental and ophtalmologist's practice, laboratories and pharma industries: MEDIKA® refrigerators comply with international standards in force and answer to the most various requirements, thanks to the vast choice of volume capacities and to the chance of customizing the internal fittings.
The door is made of tempered glass according to safety norm CEI EN 60335-2-89, in antifog crystal, heat-insulating, triple layer for an improved thermal perfomance, with profiles in anodyzed aluminium. The all lenght ergonomic handle guarantees a safe and correct grip. The gasket is magnetic type sealing on all four sides, the automatic lock features a return spring, door stop at 90°, the opening side is reversible
STRUCTURE AND REFRIGERATIONInner dimensions: 44 x 51,6 x 56 cm |
 |
7" FULL TOUCH SCREEN ELECTRONIC CONTROLLERMicroprocessor controller with FULL TOUCH SCREEN 7" interface for displaying all the dynamic values of the refrigerator, with 0.1°C resolution and ±0.3°C accuracy. As standard, it includes temperature and alarm recording and it simultaneously displays multi-trace real-time graph, current temperature and set-point (editable), alarm limits (editable), energy consumption and battery status(optional). Door with 3 slots for: SD card with data history, USB port for system download and update, SIM card slot (for GSM module , as optional). Further features: integrated Web Server for LAN (RJ45) and MODBUS TCP/IP network connection, anti-freeze and anti-overheating safety device, and dry contact for remote alarm signal Additional accessories, which can also be installed separately, are: electronic lock, acoustic and visual alarm for power failure, DMLP TOUCH module for independent recording of temperatures, GSM and Wi-Fi modules, external terminal board, and possibility of add local and cloud monitoring systems . Acoustic and visual alarms, silenceable, for any anomaly condition, with automatic recording. |
 |
REFRIGERATOR TECHNICAL DATARefrigerant gas type: R290 |
 |
