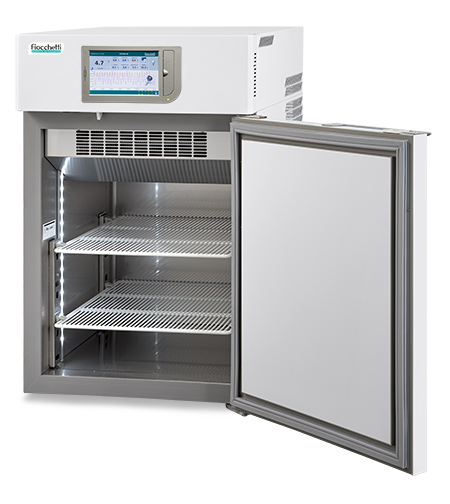

ตู้เก็บเลือดชนิดควบคุมอุณหภูมิ (ECT-F TOUCH controller) ยี่ห้อ Fiocchetti รุ่น MEDIKA 100 TOUCH ตู้เก็บเลือดชนิดควบคุมอุณหภูมิ (ECT-F TOUCH controller) ยี่ห้อ Fiocchetti รุ่น MEDIKA 100 TOUCH
หมวดหมู่สินค้า: Solid Door Refrigerators
*ราคาอาจมีการเปลี่ยนแปลงตามอัตราแลกเปลี่ยน โปรดสอบถาม Line : @siamintercorp

แท็ก:

13 ธันวาคม 2567

ผู้ชม 10 ผู้ชม

Small undercounter refrigerator for general laboratory use, solid door type and positive temperature range, with featuring data recording, developped for laboratories, medical practices, hospitals and private clinics.

+2 / +15°C
Temperature range
126 lt (4.45 cu ft)
Capacity
52 x 63,5 x 81,5 cm
External dimensions (WxDxH)
TOUCH
Electronic Controller

Laboratory undercounter refrigerator, with touchscreen display, solid door type and temperatures data recording

Laboratory refrigerators series LABOR feature a clean and functional design, with solid door, and adjustable compartments to enhance product storage.

They have been design specifically for the use in laboratories, hospital wards and pharma industries: LABOR refrigeratorscomply with international standards in force and answer to the most various requirements, thanks to the vast choice of volume capacities and to the chance of customizing the internal fittings.

The solid door guarantees an improved thermal perfomance, while the ergonomic aluminium handle guarantees a safe and correct grip. The gasket is magnetic type sealing on all four sides, the automatic lock features a return spring, door stop at 90°, the opening side is reversible

STRUCTURE AND REFRIGERATION

Inner dimensions: 44 x 51,6 x 42,1 cm
Nominal capacity: 100 l (3,53 cu ft)
Net capacity : 96 l (3,40 cu ft)
Insulation type: Insulation in PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection.
Insulation thickness: 40 mm.
Structure: Monocoque type, made of plasticized, atoxic white steel interior/exterior, coated with a special antibacterial-type film, or in inner 18/10 Aisi 304 stainless steel. Inner bottom rounded corners.  Nr 4 feet H=1,5 cm grant the maximum stability.
Interior lightning: Full LED, all lenght of inner chamber, with adjustable brightness
Refrigeration type: Professional ventilated
<strongDefrost type: Automatic, adaptive, with vaporization of condensate water</strong
Power consumption reduction with function Night & Day


7" FULL TOUCH SCREEN ELECTRONIC CONTROLLER

Microprocessor controller with FULL TOUCH SCREEN 7" interface for displaying all the dynamic values of the refrigerator, with 0.1°C resolution and ±0.3°C accuracy.

As standard, it includes temperature and alarm recording and it simultaneously displays multi-trace real-time graph, current temperature and set-point (editable), alarm limits (editable), energy consumption and battery status(optional).

Door with 3 slots for: SD card with data history, USB port for system download and update, SIM card slot (for GSM module , as optional).

Further features: integrated Web Server for LAN (RJ45) and MODBUS TCP/IP network connection, anti-freeze and anti-overheating safety device, and dry contact for remote alarm signal

Additional accessories, which can also be installed separately, are: electronic lock, acoustic and visual alarm for power failure, DMLP TOUCH module for independent recording of temperatures, GSM and Wi-Fi modules, external terminal board, and possibility of add local and cloud monitoring systems .

Acoustic and visual alarms, silenceable, for any anomaly condition, with automatic recording.


REFRIGERATOR TECHNICAL DATA

Refrigerant gas type: R290
Energy consumption: 0,5 kWh/24h
Power absorption/current: kW 0,14 / Amp 0,9
Inrush current: Amp 2,5
Noise level: <40 dBA
Heat rejection/emission EN 12900:  W 20
Shelves max nr.: 2
Wire shelves dimensions: cm 40x49
Drawers max nr.: 3
Inner dimensios of drawers with dividers (LxPxH) (each compartment): cm 10x45x7,5 (3)
Inner dimensios of drawers without dividers (LxPxH): cm 33x45x7,5
