extraktLAB creates the most advanced and efficient CO2 extractors for sale in the hemp botanical oils market.

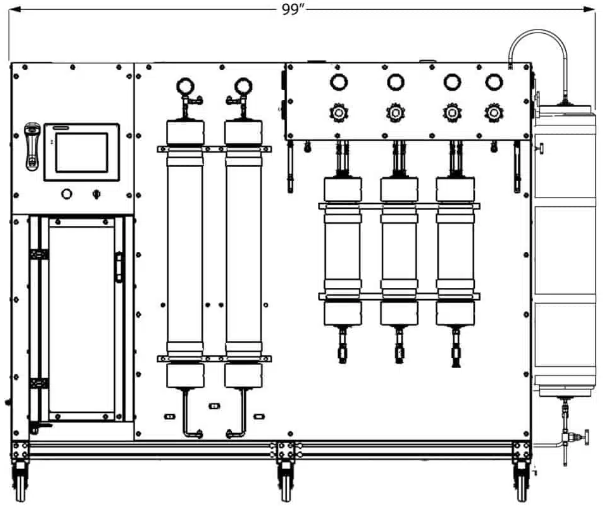

The e-140, is capable of an impressive throughput of up to 422 pounds (192kg) per day – all within a footprint smaller than 25 sq ft. The e-140 can be scaled up or incorporated into a continuous automation process.
Brochure e-140 Supercritical CO2 Extractor FEATURES & BENEFITS
- Sub or Supercritical CO2 Extractions
- Automated Co-solvents & Gradients
- Full Spectrum Extracts
- Fully Automated Methods
- UL, ASME, PED, EPR Certified Components
- Scalable
- GMP Compliant
PROCESSING POWER:
Up to 422 lbs (192 kg) per day; 8 kg per cycle; 60 min per cycle @ 10% potency; 90+% hemp efficiency; 95+% marijuana efficiency; 24 sq ft footprint; 67 Full Load Amps (FLA)
GMP COMPLIANCE:
Automated process control; Batch, operator, parameter tracking; FDA approved materials; Instrument calibrations; Clean in place; International certifications; Calibration/maintenance tracking
PROCESSING CONTROL:
Programmable methods including co-solvent, temp, and ingredients; Automated extraction cycles; Independent vessel control; 0-5000 psi; 0-100ºC; Cyclonic separation; Data capture/reporting
CERTIFICATIONS, Listed:
UL 508A, CE, PED
REGULATORY COMPLIANCE:
21 CFR Part 117, 211, 177 and Health Canada equivalents, P.E. stamped according to ASME DIV II VII-2 PED compliant, CE marked, notified body Lloyd’s Register, CRN number
ALSO AVAILABLE, SOLD SEPARATELY:
GMP Documentation Package; Commissioning and Training Package; Maintenance Package (12 Months)
WARRANTY:
12 months for quality, labor, parts, and workmanship on United Science equipment.
