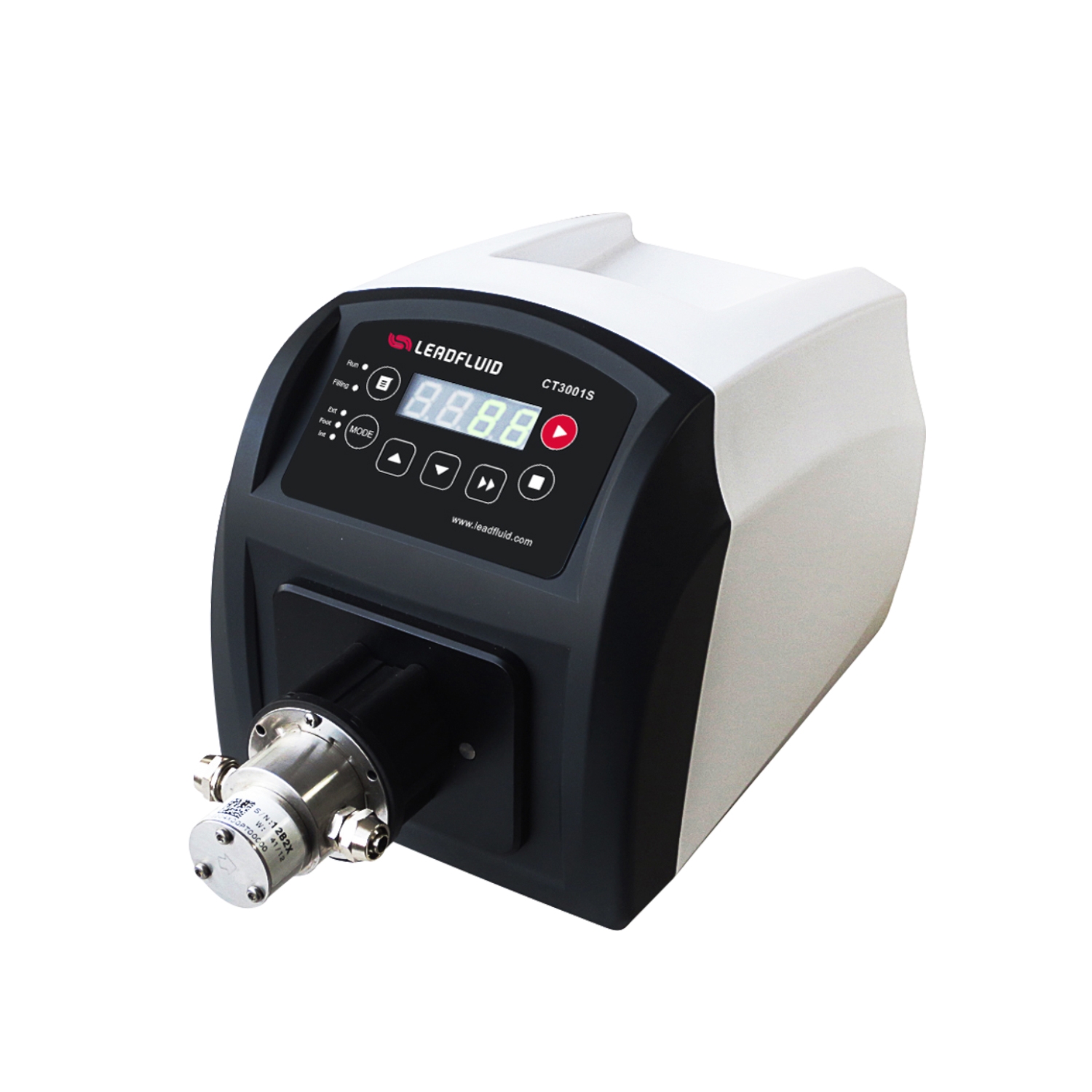

CT3001S adopts brushless motor drive, high performance, low noise, stainless steel, magnetic drive pump head, can be realized without pulsation, constantvelocity flow transmission.Digital display, key operation, easily set parameters. Speed display, time dispensing , suitable for various experimental fields. A variety of external control way, convenient use together with other devices, support MODBUS protocol communication, simplify the difficulty of system development.
Flow: 90- 2700mL/min
Max: 1 Channel
Function and Feature
• Can install various pump heads.
• Suitable for transmission more viscous, high pressure liquid.
• No pulsation transmission, low noise.
• The magnetic coupling is designed, easy to maintain.
• Brushless drive, high efficiency, maintenance-free.
• Digital display, key operation.
• LF-LED-OS software system.
• Speed display.
• Time dispensing.
• External control signal control, physical isolation,analog control .
• RS485 communication, support MODBUS protocol.
• Wide range power input, adapted to different environments.
Technical Parameters
• Flow range: 90~2700 mL/min
• Speed range: 300~3000rpm
• Speed resolution: 1rpm
• Working mode: Speed-variable mode, time dispensing
• Dispensing time: 0.1~999S
• Transport limitation of liquid particles: Particles ID≤10μm（recommended pre-filter）
• Transmission liquid viscous: ≤200cSt
• Analog input signal: 0～5V (Standard), 0～10V, 4～20mA (Optional)
• External control signal: 5V , 12V(Standard), 24V (Optional)
• Communication: RS485 communication，MODBUS protocol
• Working environment: Working temperature 0～40℃, relative humidity＜80%
• Power supply: AC100-240V, 50/60Hz
• Power consumption: ＜50W
• IP grade: IP31
• Dimension(L×W×H): 293×180×198mm
• Shell material: Plastic shell
• Weight: 3.3kg
Applicable Pump Head and Tube, Flow
| Drive Type | Pump Head | Gear Material | Speed Range(rpm) | Transfer Pressure(Mpa) | Flow Range(mL/min) |
| CT3001S | MG204XD0PT00000 | PEEK | 300～3000 | ≤0.8 | 90～900 |
| MG209XD0PT00000 | ≤0.8 | 180～1800 | |||
| MG213XD0PT00000 | ≤0.3 | 270～2700 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
Dimension(mm)
Statement：The final explanation right of above information belongs to Lead Fluid.
