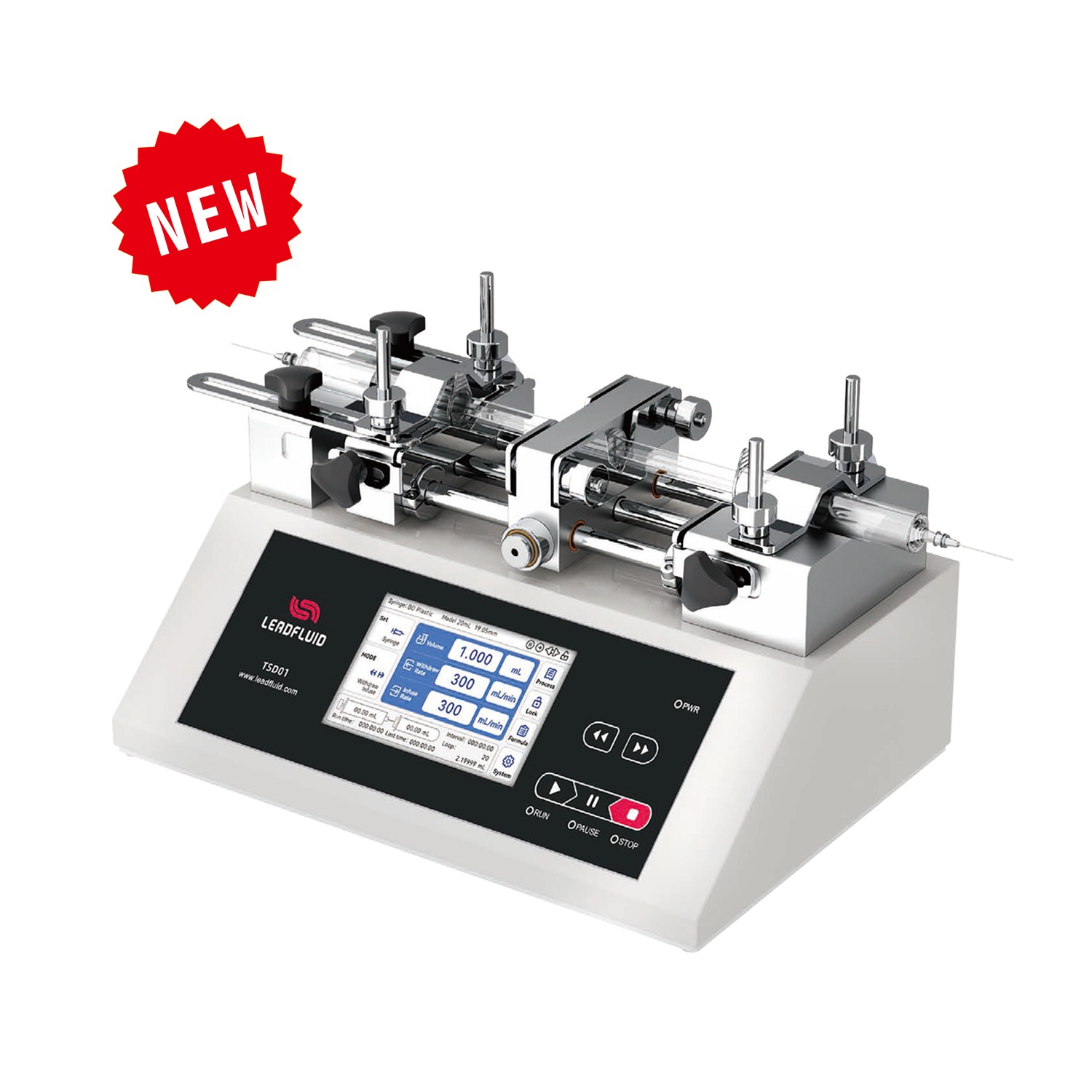

Lead Fluid TSD01-01 can accommodate two syringes and achieve continuous liquid transfer through external valve control. Featuring a 5-inch high-resolution color LCD display, it offers convenient touchscreen operation for quick parameter setup. Dual-color indicator lights clearly display the current operating status. With built-in support for various syringe manufacturers and specifications, it allows for easy selection and storage of multiple sets of data to meet the requirements of different experimental flow rates. It supports high-precision control, includes protective structures, and features overload alarm mechanisms. The product supports external signal-controlled start/stop, includes built-in RS485 communication, and supports the Modbus protocol. Encased in a metal shell with wide-range power input, it is suitable for various experimental environments.
Typical applications: various laboratory applications, micro-volume transfer, micro-flow transfer, pulseless transfer, and high-precision transfer.
Flow: 0.184nL/min-83.318mL/min
Feature
• Assemble two syringes for continuous liquid transfer.
• Multiple work modes.
• 5-inch color LCD touchscreen for easy and quick operation.
• Support screen locking and mute operation of keys
• Keys with indicator lights for clear indication of working status;
• Support various syringes, customizable for non-standard syringes;
• Store multiple sets of data in advance;
• High-precision control;
• Syringe protection and stall alarm, adjustable thrust;
• Support Wi-Fi communication, after device networking, you can remotely monitor or control your infusion pump through the APP (optional);
• RS485 communication, support Modbus protocol;
• External signal control for start-stop and direction;
• Wide voltage power input;
• Metal shell.
Technical Parameter
Work mode: Infuse,withdraw,infuse /withdraw,withdraw/infuse,continuous mode
Syringe: 10μL～60mL
Flow range: 0.184nL/min～83.318mL/min
Display: 5-inch color LCD screen display and transfusion volume, residual fluid volume, flow, operation direction, syringe specification, etc. Animation display operation
Operation mode: Touch screen + button
Accuracy: Error<±0.35%,(>30% of pump stroke)
Max rated linear force: >20kgf
Thrust regulation: 25%～100% arbitrary adjustable
Advance per microstep: >0.15625μm/μstep
Linear speed: 1μm/min～150mm/min
External control: External control 24V signal input controls start stop, working status signal input
Power supply: AC100～240V，50/60Hz
Working environment: Temperature 5～40℃, relative humidity＜80%
Dimension (L×W×H): 290×208×180mm
Reference Table of Syringe Specifications and Flow Rate
| Syringe size | Syringe ID (mm) | Min flow rate(nL/min) | Max flow rate(mL/min) |
| 0.5µL | 0.103mm | 8.000 | 1.249 |
| 1 µL | 0.146mm | 16.000 | 2.511 |
| 2 µL | 0.206mm | 33.000 | 4.999 |
| 5 µL | 0.343mm | 83.000 | 12.497 |
| 10µL | 0.485mm | 184.00 | 27.711 |
| 25µL | 0.729mm | 417.00 | 62.608 |
| 50µL | 1.03mm | 833.00 | 124.984 |
| 100µL | 1.457mm | 1.667 | 250.092 |
| 250µL | 2.304mm | 4.169 | 625.383 |
| 500µL | 3.256mm | 8.326 | 1.248 |
| 1000 µL | 4.608mm | 16.676 | 2.501 |
| 1mL | 4.699mm | 17.342 | 2.601 |
| 3mL | 8.585mm | 57.885 | 8.682 |
| 5mL | 11.989mm | 112.890 | 16.933 |
| 10mL | 14.427mm | 163.469 | 24.520 |
| 20mL | 19.05mm | 285.027 | 42.754 |
| 30mL | 21.59mm | 366.090 | 54.913 |
| 50mL | 28.998mm | 555.459 | 83.318 |
| 60mL | 28.998mm | 555.459 | 83.318 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure,in actually using it is effected by specific factors such as pressure, medium etc. Above for reference only.
Dimension (mm)
Statement：The final explanation right of above information belongs to Lead Fluid.
