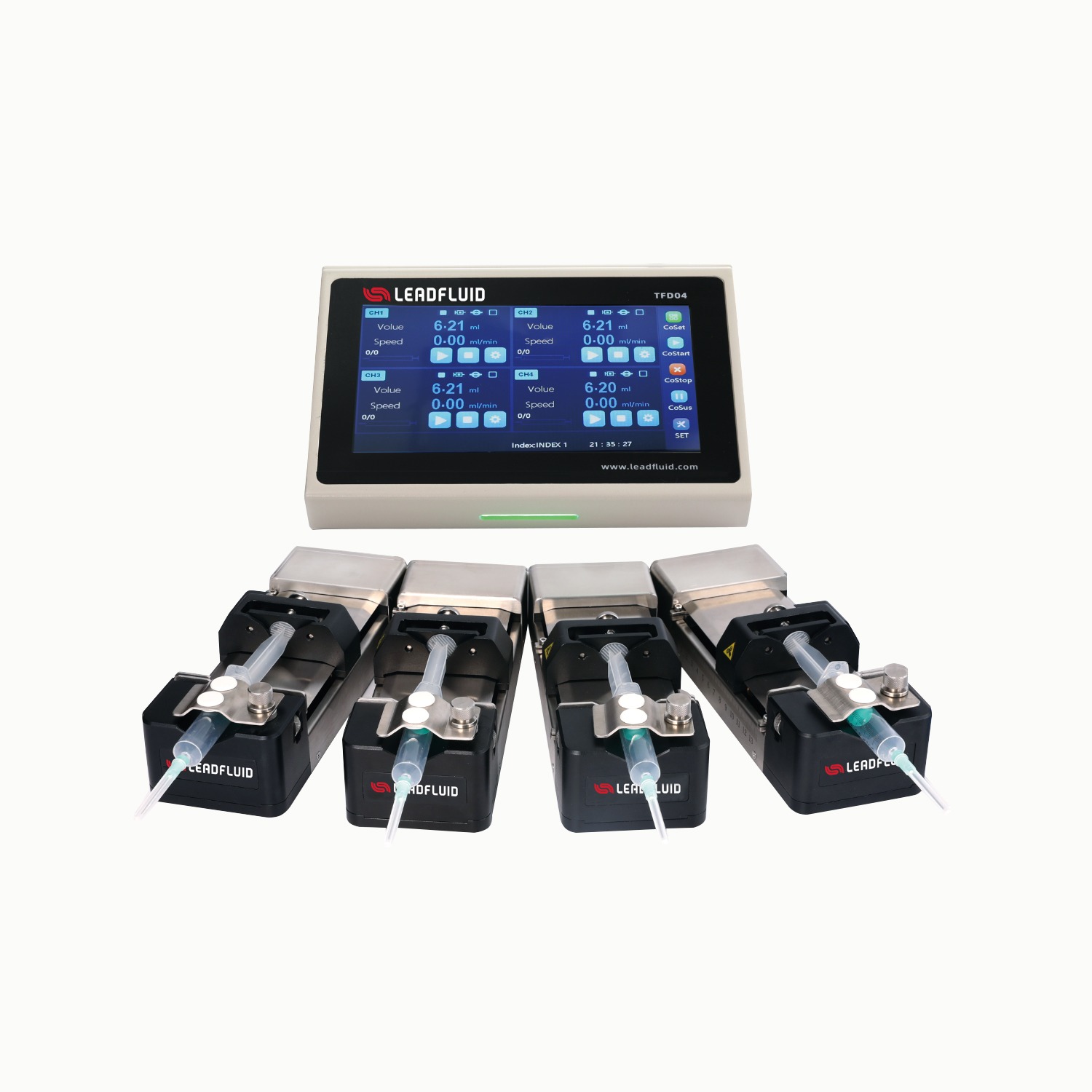

Function and Feature
• Can independently control 1～8 channel operation.
• 7-inch HD color touch screen display and operation, bringing a good user experience.
• LF-Touch-OS software system, friendly interface, reliable operation.
• Accurate flow control, transmission accuracy error＜±0.5%.
• Intelligent flow correction function.
• Four working modes：only infuse, only withdraw, infuse/withdraw, withdraw/infuse.
• With fast filling and emptying function.
• Support start delay and cyclic operation.
• Save five groups of formula parameters.
• RS485 communication, MODBUS protocol, support the setting of communication parameters, convenient to connect with various control device.
• External control signal controls start, stop, pause, and physical isolation.
• Super anti-interference characteristics, wide voltage design, suitable for complex power supply environment
• High-strength metal case with protective coating, corrosion-resistant and easy to clean.
• The internal circuit is treated with special protection to prevent dust, moisture and static electricity.
Technical Parameter
Channel: 1～8 channels，independently control
Syringe size: 0.5μL～60mL(replace the execution unit)
Syringe selection: Built-in mainstream brand syringe specifications, support customization
Working mode: Infuse, withdraw ,infuse/withdraw, withdraw/infuse
Travel control accuracy: Error＜±0.5%(＞30% of pump stroke)
Flow calibration: Intelligent guide
Display: 7 inch color LCD
Operation method: Touch screen
Delay time: 0.1～999s/min/h
Cycles times: 0～9999
Cycles interval time: 0.1～999s/min/h
Power-down memory: Memorize parameters set before power off
Status signal output: 5V TTL, 1 road indicates running status, 1 road indicates direction status
Control signal input: 5～24V wide voltage, control start, stop and pause
Communication: RS485, support Modbus protocol
Power supply: AC100～240V，50Hz/60Hz
Power consumption: Controller 40w+30w(each execution unit)
Environment: Temperature 5～40℃ , relative humidity＜80%
Controller dimension: 200×142×88mm
Controller weight: 2.0kg
| Execution Unit | ZX02 | ZX03 |
| Syringe | 10μL～60mL | 0.5μL～100μL |
| Flow range | 0.184nL/min～83.318mL/min | 0.005nL/min～152.456μL/min |
| Channel | 1～4 | 1～8 |
| Max stroke of pump | 110mm | 70mm |
| Max rated thrust | >10kgf，Adjustable thrust | >1kgf，Adjustable thrust |
| Advance per microstep | 0.156μm/μstep | 0.1905μm/μstep |
| Linear speed | 1μm/min～150mm/min | 0.6096μm/min～91.44mm/min |
| Execution unit dimension | 266×86×76mm | 173×39×52mm |
| Execution unit weight | 1.8 KG | 0.25 KG |
Reference Table of Syringe Specifications and Flow Rate
ZX02
| Syringe size | Syringe ID (mm) | Min flow rate (nL/min) | Max flow rate (μL/min) |
| 10μL | 0.485 | 0.184 | 0.027 |
| 25μL | 0.729 | 0.417 | 0.0626 |
| 50μL | 1.03 | 0.833 | 0.125 |
| 100μL | 1.457 | 1.667 | 0.250 |
| 250μL | 2.304 | 4.169 | 0.625 |
| 500μL | 3.256 | 8.326 | 1.248 |
| 1mL | 4.699 | 17.342 | 2.601 |
| 5mL | 11.989 | 112.890 | 16.933 |
| 10mL | 14.427 | 163.469 | 24.520 |
| 20mL | 19.05 | 285.027 | 42.754 |
| 30mL | 21.59 | 366.090 | 54.913 |
| 60mL | 26.594 | 555.459 | 83.318 |
ZX03
| Syringe size | Syringe ID (mm) | Min flow rate (nL/min) | Max flow rate (μL/min) |
| 0.5μL | 0.103 | 0.005 | 0.762 |
| 1μL | 0.146 | 0.010 | 1.531 |
| 2μL | 0.206 | 0.020 | 3.048 |
| 5μL | 0.343 | 0.056 | 8.449 |
| 10μL | 0.485 | 0.112 | 16.893 |
| 25μL | 0.729 | 0.254 | 38.166 |
| 50μL | 1.03 | 0.507 | 76.190 |
| 100μL | 1.457 | 1.016 | 152.456 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually using it is effected by specific factors such as pressure, medium etc. Above for reference only.
Dimension
Execution Unit Dimension (unit:mm)
Controller Dimension (unit:mm)
Statement:The final explanation right of above information belongs to Lead Fluid.
