Description

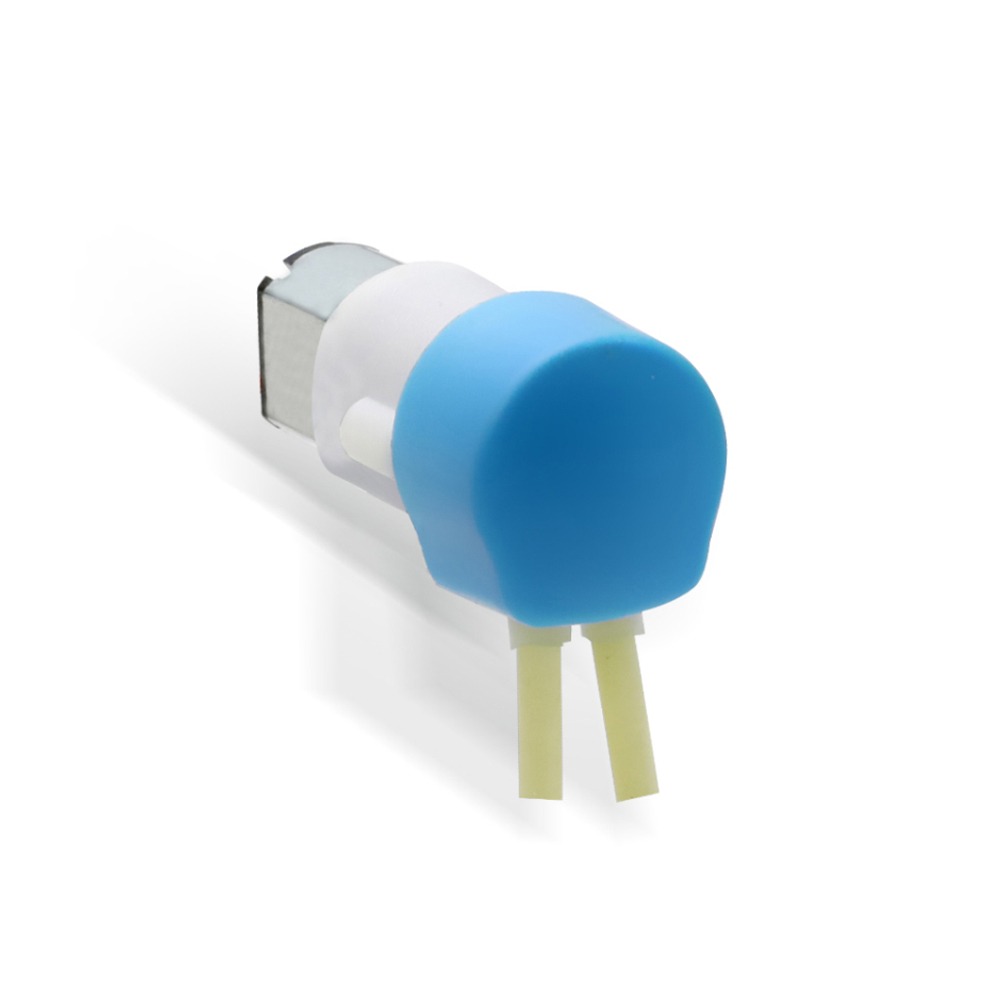

Introduction
• The shell is made of PA66 material with high strength.
• Adopting compact structure design, small volume and light weight.
• Using a 3.7V micro DC reduction motor, low noise, low energy consumption, and can be driven by dry battery.
• Mostly used for small household appliances, small testing equipment.
• Used for micro flow.
• For intermittent operation use.
Parameters
Motor Type: DC reduction motor
Power Supply: DC3.7V
Fixed Speed: 20rpm, 200rpm
Channel Number: 1
Number of Rollers: 2 rollers
Rotation Direction: Clockwise/Counterclockwise rotation
Material of Tube: Silicone, Pharmed
Method of Tube Installation: Tube stopper
Pressure Tube Type: Fixed clearance
Pump Head Shell Material: PA66
Pump Head Roller Material: PTFE
Pump Head Roller Shaft Material: S30408 stainless steel
Pump Head Life: ≥200h
Noise: ≤60dB (test environment noise ≤40dB, test product and noise meter horizontal distance of 1 meter)
Weight: Approx. 15g (with DC reduction motor and 13.5cm silicone tube)
Dimensions: (L×W×H) 40*21*22（mm）
Working Environment: Temperature 0- 40°C, relative humidity<80% RH
Storage Environment: Ambient temperature of -20 ~ +50 ℃, relative humidity of not more than 95% of the clean and
well-ventilated environment, the air shall not contain corrosive, flammable gases, oil mist, dust.
Suitable Tube Model and Flow Rate Reference
| Model | Speed | Material of Tube | Suitable Tube | Wall Thickness | ID | Maximum Flow |
| Z020A2WX09 | 20rpm | Silicone tube | 2×3.84×0.92mm | 0.92mm | 2mm | 1.5mL/min |
| Z200A2WX09 | 200rpm | Silicone tube | 2×3.84×0.92mm | 0.92mm | 2mm | 1.5mL/min |
The above data is obtained from the test of purified water with a Lead Fluid tube under normal and pressure conditions in the laboratory.
This data is for reference only.
Due to pressure in actual use, temperature, medium characteristics, tube material and other specific factors, the specific situation needs to consult our engineers.
Product Structure & Usage Method
Product Structure
Component Name and Function
1.Pump Head: Installation of a tube to transfer liquid.
2.Motor: Provides power.
Usage Method
Disassembly of WX09 pump head
Step 1: Use a screwdriver to pry the pump head protrusion can be removed from the pump head shell.
Step 2: Remove the tube line as shown.
Dimension
unit:mm
