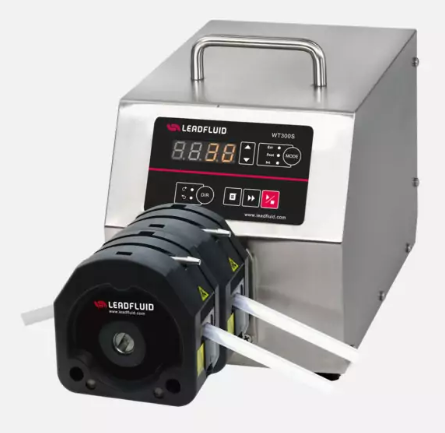

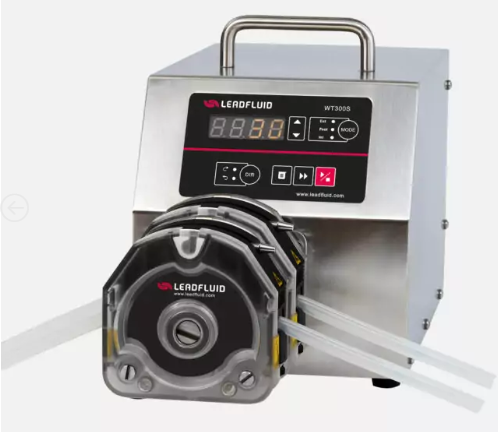

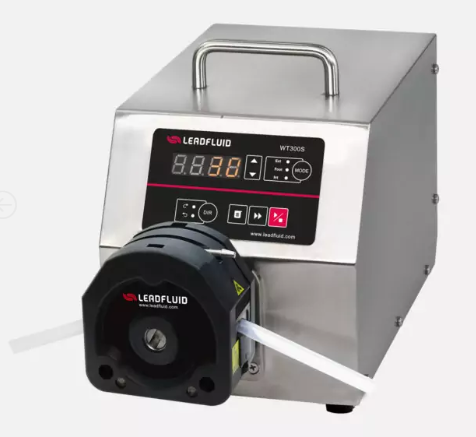

WT600S peristaltic pump adopts DC brushless motor drive which is large torque, free maintenance, more powerful, can cascade multiple pump heads. Has basic function such as start/stop, reversible direction,full speed, adjust speed and state memory. Control the start/stop, reversible direction, adjusts the speed via external analog quality, the time dispensing function. RS485 communication, MODBUS protocol is available, easy to connect other equipment such as computer,man-machine interface, PLC, etc.
Flow: 93～6600mL/min
Max: 2 Channels
Description
Functions and Features
- Large torque output, multiple KZ25 pump heads and KZ25-L pump heads can be installed.
- Four-figure digital LED indicator displays working speed and working mode.
- The LED indicator displays the reversible direction, internal control,external control,foot switch working mode.
- Touch screen and keypad for operating.
- Start/stop, reversible direction, full speed, adjust speed, state memory (power-down-memory).
- Easy dispensing function, it realizes the repeat timing quantitative dispensing.
- Speed resolution 1rpm，speed range 30-600rpm/min.
- Stainless steel material housing, effective prevention of erosion of various organic solvents, easy to clean.
- The circuit board is sprayed with three anti paint processes to achieve dust and moisture-proof effect.
- Super Anti-interference characteristics, wide voltage design, suitable for complex power supply environment.
- External high-low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator, external analog adjusts the rotate speed.
- RS485 interface, MODBUS protocol is available, easy to connect other equipments.
- Supports accessories such as foot switch, pulse damper, leak detector, etc.
Specifications
- Flow range: 93～6600mL/min
- Speed range: 30～600rpm
- Speed resolution: 1 rpm
- Speed accuracy: 3%
- Power supply: AC 180-264V 50Hz/60Hz(Standard),AC 90-132V 50Hz/60Hz(Optional)
- External control: External control analog 0-5V，0-10V，4-20mA External control start and stop, External control input level5V,12V,24V
- Communication interface: RS485 communication interface, MODBUS protocol is available
- Working environment: Temperature 0 ～ 40℃, relative humidity＜80%
- IP grade: IP31
- Dimensions (L x W x H): 290mm×185mm×230mm
- Driver weight: 6.3kg
WT600S Applicable Pump Heads and Tubings, Flow Parameters
| Drive type | Suitable pump heads | channel | Tubing size (mm) | Flow rate (mL/min) per channel |
| WT600S | KZ25 | 1,2 | 15# 24# 35# 36# | 93～6600 |
| KZ25-L | 2 | 15# 24# 35# 36# | 93～6600 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
Dimension（mm)
Statement：The final explanation right of above information belongs to Lead Fluid.
