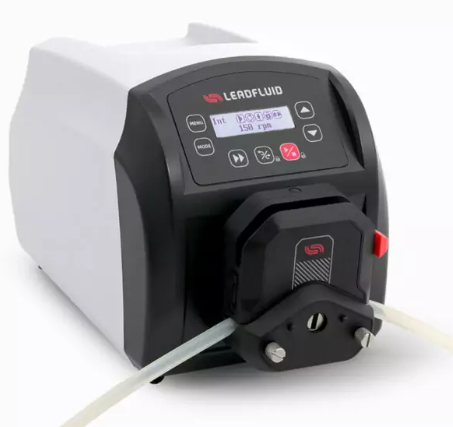

BT301S speed variable peristaltic pump, it can easily realize stepless speed regulation, specially designed for laboratory.
Flow: 0.005～1750mL/min
Max: 2 Channels
Description
Functions and Features
•128 * 32 LCD screen, Chinese and English switching, simple parameter setting, intuitive status display.
•It can realize start and stop, speed regulation, timing operation and other operations remotely through the Lead Fluid APP software, and has monitoring functions such as shutdown alarm, pump tube replacement reminder and so on (optional)
•Delay start and delay stop function.
•Start/stop, reversible direction, full speed, adjust speed, state memory (power-down-memory).
•External analog speed regulation, external control signal control start and stop, positive and negative, physical isolation of external control signal.
•External control signal supports 5-24v wide voltage input.
•External speed control signal type (voltage or current) can be switched through the control panel.
•RS485 communication interface, MODBUS protocol is available, support communication parameter settingeasy to connect other equipments.
•Set multiple control parameters for ODM customization application.
•Circuit board with conformal coating makes it dust-proof and moisture-proof.
•Super anti-interference feature, wide input voltage range, acceptable for the complex power environment .
•ABS plastic housing, creative streamlined appearance, beautiful and simple.
Specifications
- Flow range: 0.005～1750mL/min
- Speed range: 0.1～350rpm
- Speed resolution: 0.1rpm（speed≤100rpm）, 1rpm（speed＞100rpm）
- Speed accuracy: <0.5%
- Working time: 0.1～999 S/Min/H/D
- Dispensing interval time: 0.1～999 S/Min/H/D
- Dispensing time: 1～999,“0” Infinite loops
- External control: External control input level 5V, 12V(Standard), 24V (Optional), External control analog 0-5V(Standard)，0-10V, 4-20mA (Optional)
- Communication interface: RS485 communication interface, MODBUS protocol is available
- Power supply: AC 100-240V 50/60Hz
- Power consumption: <40W
- Working environment: Temperature 0 ～ 40℃, relative humidity＜80%
- IP grade: IP31
- Dimension (L×W×H): 284mm×180mm×197mm
- Driver weight: 3.9kg
BT301S Suitable Pump Heads and Tubings, Flow Parameters
| Drive type | Pump head | Ch | Tubing size | Flow rate per channel (mL/min) |

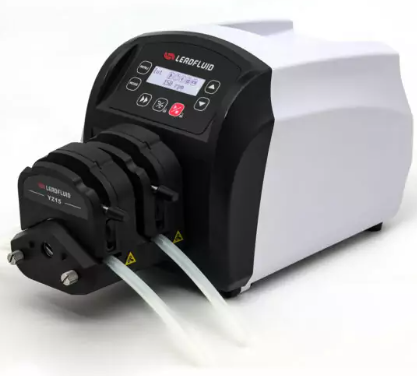

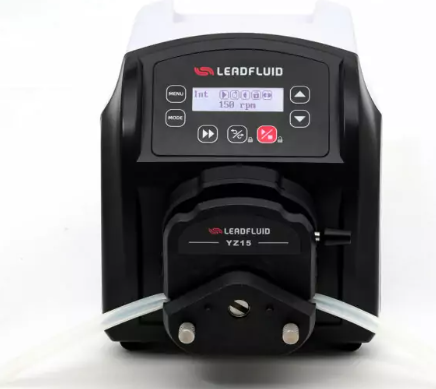

| BT301S | YZ15/YZ15T | 1,2 | 13# 14# 19# 16# 25# 17# 18# | 0.005～1495 |

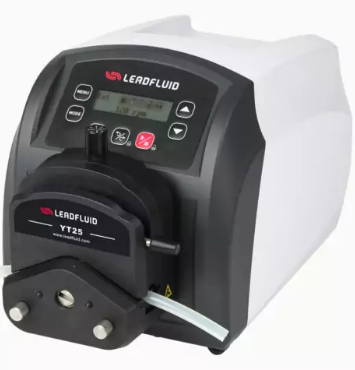

| YT25 | 1 | 114#116#15#24#35#36# | 0.024～1750 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
Dimension（mm）
Statement：The final explanation right of above information belongs to Lead Fluid.
