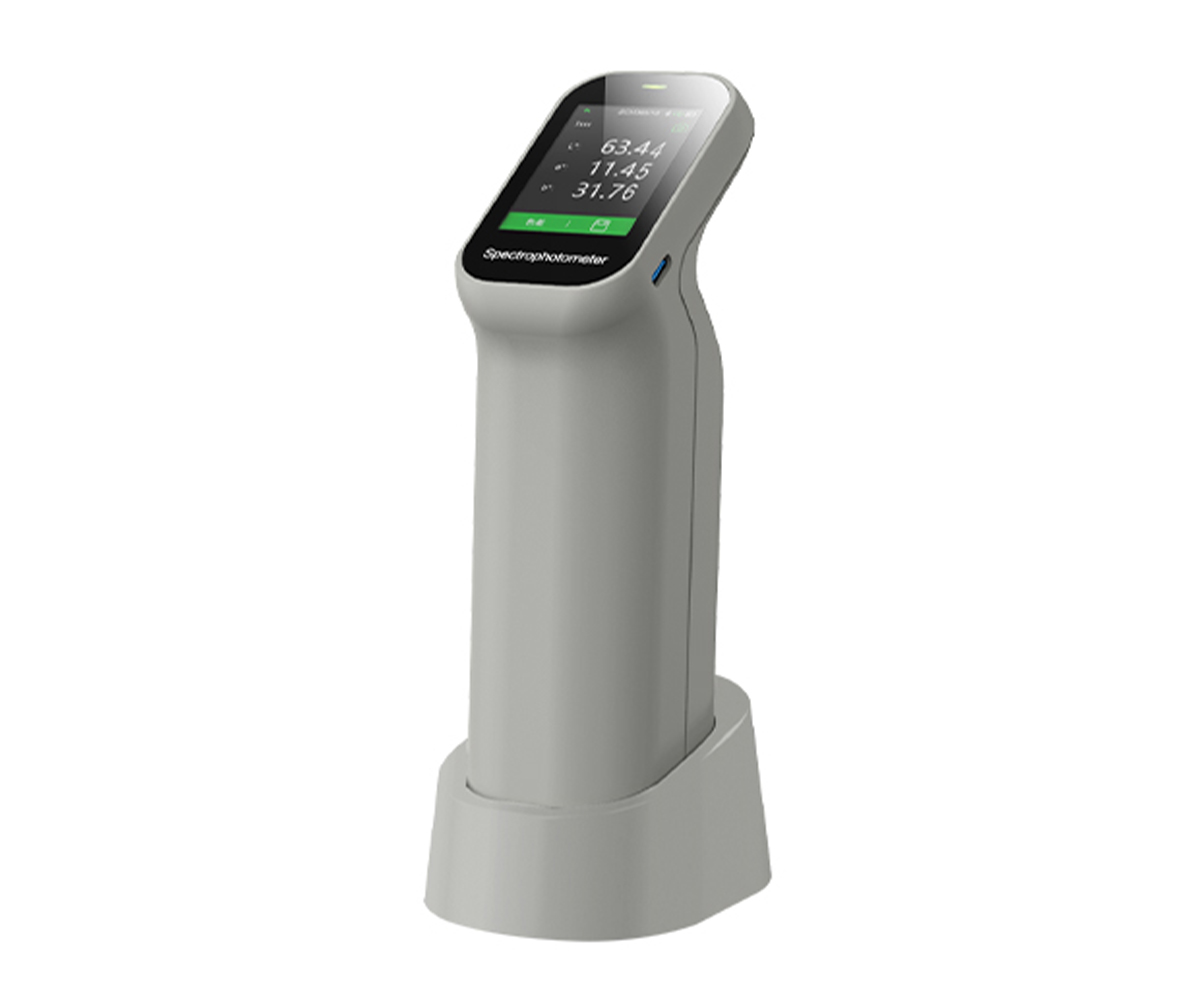

เครื่องวัดสี (DS-200/210/220 Colorimeter) ยี่ห้อ CHN Spec เครื่องวัดสี (DS-200/210/220 Colorimeter) ยี่ห้อ CHN Spec เครื่องวัดสี (DS-200/210/220 Colorimeter) ยี่ห้อ CHN Spec เครื่องวัดสี (DS-200/210/220 Colorimeter) ยี่ห้อ CHN Spec
เครื่องมือวัดสี ที่ใช้สำหรับวัดและเปรียบเทียบค่าสีของวัตถุต่างๆ โดยเฉพาะอย่างยิ่งใช้ในการควบคุมคุณภาพสีในกระบวนการผลิตที่ต้องการความแม่นยำสูง
*ราคาอาจมีการเปลี่ยนแปลงตามอัตราแลกเปลี่ยน โปรดสอบถาม Line : @siamintercorp

แท็ก:

04 กันยายน 2567

ผู้ชม 240 ผู้ชม

DS-200 series Colorimeter is a stable and reliable color difference measuring instrument. In order to meet the general color measurement needs, DS-200 series Colorimeter still maintains excellent repeatability, repeatability dE*ab≤0.03. DS-200 series color difference meter supports aperture switching, camera view, simple operation, very easy to use; It can also connect the mobile APP, wechat mini program, computer management software, and carry out color measurement work at any time.

  • Repeatability accuracy dE*ab≤0.03
  • Contains UV
  • Three caliber switching is available
  • Built-in HD camera
  • Support Android, Apple, Hongmeng mobile APP

Double optical path design improves repeatability accuracy dE*ab≤0.03

The dual optical path design monitors the energy fluctuation of the light source while measuring the sample signal, reduces interference during measurement, obtains higher measurement stability, and improves the measurement repeatability index of the instrument to dE*ab≤0.03. The measurement speed, accuracy and stability of the instrument are ensured. The relevant technologies are protected by Chinese invention patents and American invention patents.

Innovative nanointegrated optics with a thickness of 5 microns

  • After painstaking research, the use of nano-integrated optical devices as spectroscopic devices, only 5 microns thick optical devices can achieve nanoscale spectroscopic capabilities, once again leading the industry innovation direction, greatly improving the technical performance of the product. The relevant technologies are protected by Chinese invention patents

Includes SCI measurement mode

  • SCI refers to the mode of containing specular reflected light, which is generally used for studying the properties of the color itself without concern for the surface gloss of the sample to which the color is attached

Contains UV for fluorescence color measurement

  • The DS-200 series colorimeter can still provide stable and objective reflectance data on the surface of materials containing fluorescence


Up to six caliber switching available

  • Rotation can be switched caliber, bid farewell to the cumbersome manual screw fixing caliber
  • Stable type:Φ11mm,Φ6mm,Φ3mm
  • Flexible type:▽11mm,▽6mm,▽3mm


Built-in HD camera for clear observation of the area under test

  • The DS-200 series colorimeter can obtain the image of the measured area through the camera during the measurement, and can clearly locate the sample measured area to avoid the uncertainty caused by regional errors

Support wechat mini program, Android, Apple, Hongmeng mobile APP

  • The DS-200 series colorimeter can be connected to a variety of mobile phones through a rich mobile terminal program. Users no longer need to transfer the color value of the sample and the real object, and can easily transfer the color data through wechat
  • Users can look for the most similar colors in multiple sets of color cards
  • Users can create a personal color database, input printing, coating, textile and other color card information, the created color library can be uploaded to the cloud, multi-device data sharing
  • Enterprise users can create and manage their own color card information base and color recipe in the cloud, and share the information base and color recipe with their own users through a unique invitation code

Use the powerful PC-side color management system ColorExpert

  • The DS-200 series ColorExpert, a Windows color management system, is included in the package and connects to the colorexPERT via Bluetooth or USB cable
  • ColorExpert is a full-featured color management software with four functional modules: My Colors, Color detection, Color matching system (purchase required), and Personal Center

Product Brochure
