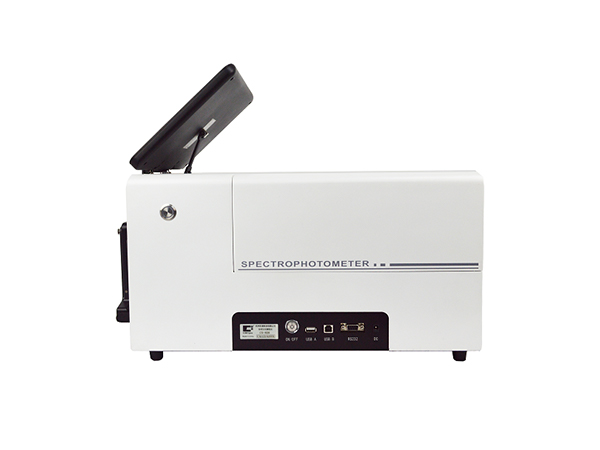

Cs-826 is a desktop spectrophotometer for color measurement with high precision and high consistency; Advanced technology and powerful data processor make CS-826 have excellent stability in color measurement of black objects; The automatic calibration of the instrument ensures the stability of long-term measurement; The improved high stability UV light source provides stable fluorescence measurement markings, and the instrument measurement data can be in excellent consistency with other competitive products in the United States, Japan and Europe.
- It has excellent stability when measured on black objects
- It has excellent consistency with other competitive products in the United States, Japan and Europe
- High stability UV light source provides stable fluorescence measurement marking
- Automatic calibration
- Short term repeatability: Δ E*ab0. Within 01
- Long term repeatability: Δ E*ab0. Within 01
High precision and consistency
|
![]() |
|
Maintain the long-term stability of the instrument
|
Stable lighting source
|
|
![]() |
Multiple functional features
|
Model |
CS-820P |
CS-821N |
CS-826 |
Lighting/measuring conditions
|
Reflection:d/8(diffuse illumination,8°direction reception) | ||
SCI(Contains specular reflected light)/ SCE(not contain specular reflected light)measure at same time. Compliance standards:CIE No.15、GB/T 3978、GB 2893、GB/T 18833、ISO7724/1、DIN5033 Teil7、 JIS Z8722 Condition C、ASTM E1164、ASTM-D1003-07 |
|||
Transmission:d/0(diffuse illumination, vertical reception) |
|||
Sensor |
Silicon Photodiode Array |
Dual column high precision CMOS array sensor | |
Automatic calibration |
- |
√(Can greatly improve the long-term repeatability of the instrument) | |
Integrating sphere diameter |
152mm |
||
Wavelength range |
360nm-780nm |
||
Wavelengthinterval |
10nm |
||
Reflectance measurement range |
0-200%,resolution 0.01% |
||
Lighting source |
Pulsed xenon lamps andLED |
||
Ultraviolet measurement |
IncludesUV、400nmcutoff、420nmcutoff、460nmcutoff |
||
Measuring time |
Single mode<2s |
||
Lighting/measuring calibers |
Reflection:XLAV Φ25.4mm/Φ30mm;LAVΦ15mm/Φ18mm;MAVΦ8mm/Φ11mm;SAVΦ3mm/Φ6mm Users can customize the calibre, and the calibre switch is automatically recognized Transmission:Φ17mm/Φ25mm |
||
Transmission measurement specification |
Sample height and thickness:height is not limited, thickness≤50mm |
||
Repeatability ** |
ΔE*ab≤0.015,Spectral reflection/transmittance ≤0.1% | ΔE*ab≤0.01,Spectral reflection/transmittance ≤0.1% | |
Inter-Instrument Agreement** |
XLAV ΔE*ab 0.25 |
XLAV ΔE*ab 0.2 | |
Long-term repeatability*** |
XLAV chroma value:standard deviation ΔE*ab within 0.1(under constant temperature conditions,the white correction plate is measured every hour within 24 hours) | ||
Standard observer |
2°Standard observer and 10°Standard observer |
||
Viewing light source |
A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65, LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-8 |
||
Language |
Simplified Chinese,English, Traditional Chinese, Russian, Spanish, Portuguese, Japanese, Thai, Korean,German, French, Polish |
||
Display content |
Spectral data,Spectrogram, chromaticity data, chromaticity Data, chromaticity map, Pass/Fail judgment, Simulation color, Color evaluation, fog, liquid chromaticity, Color bias |
||
Color space |
CIE LAB,CIE LUV,LCh,Hunter Lab,Yxy,XYZ,Musell,s-RGB,βxy |
||
Chroma index |
WI(ASTM E313-20,ASTM E313-73,CIE,AATCC,Hunter,Taube,Berger Stensby),YI(ASTM D1925,ASTM E313-20,ASTM E313-73), Tint(ASTM E313-20),Isochromatic index Milm,color fastness,color changing fastness,ISO brightness,R457,A density,T density,E density,M density,APHA/Hazen/ Pt-Co((platinum-cobalt index),Gardner(Gardner Index),Saybolt(SeibertIndex),Astm color,fog, total transmittance, covering power, force, intensity |
||
Color difference formula |
ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc,ΔE*94,ΔE*00,ΔEab(Hunter),555color tone classification |
||
Storage |
8GB |
||
Screen size |
7-inch capacitive touch screen |
||
Operating system |
Android |
||
Power source |
Dc regulated power supply |
||
Operating temperature and humidity |
5~40°C,relative humidity 80%(35°C)below no condensation |
||
Storage temperature and humidity |
-20~45°C,relative humidity 80%(35°C)below no condensation |
||
Accessories |
Power adapter,USB cable, transmission fixture, software U disk, black cavity, white board, green board,30mm aperture, 18mm aperture,11mm aperture,6mm aperture,support table,cuvette,damping handle |
||
Port |
RS-232、USB、USB-B、Bluetooth |
||
Others |
The instrument can be measured sideways,up and down (using accessories); Automatic temperatureand humidity compensation function; PC side software save sample image function |
※※Based on 23°C,the average value of XLAV aperture measurement of 12 swatches of BCRA Series is measured
※※※XLAV chromatic value:standard deviation ΔE*ab within 0.1(0℃-40℃ Arbitrary temperature variation)
