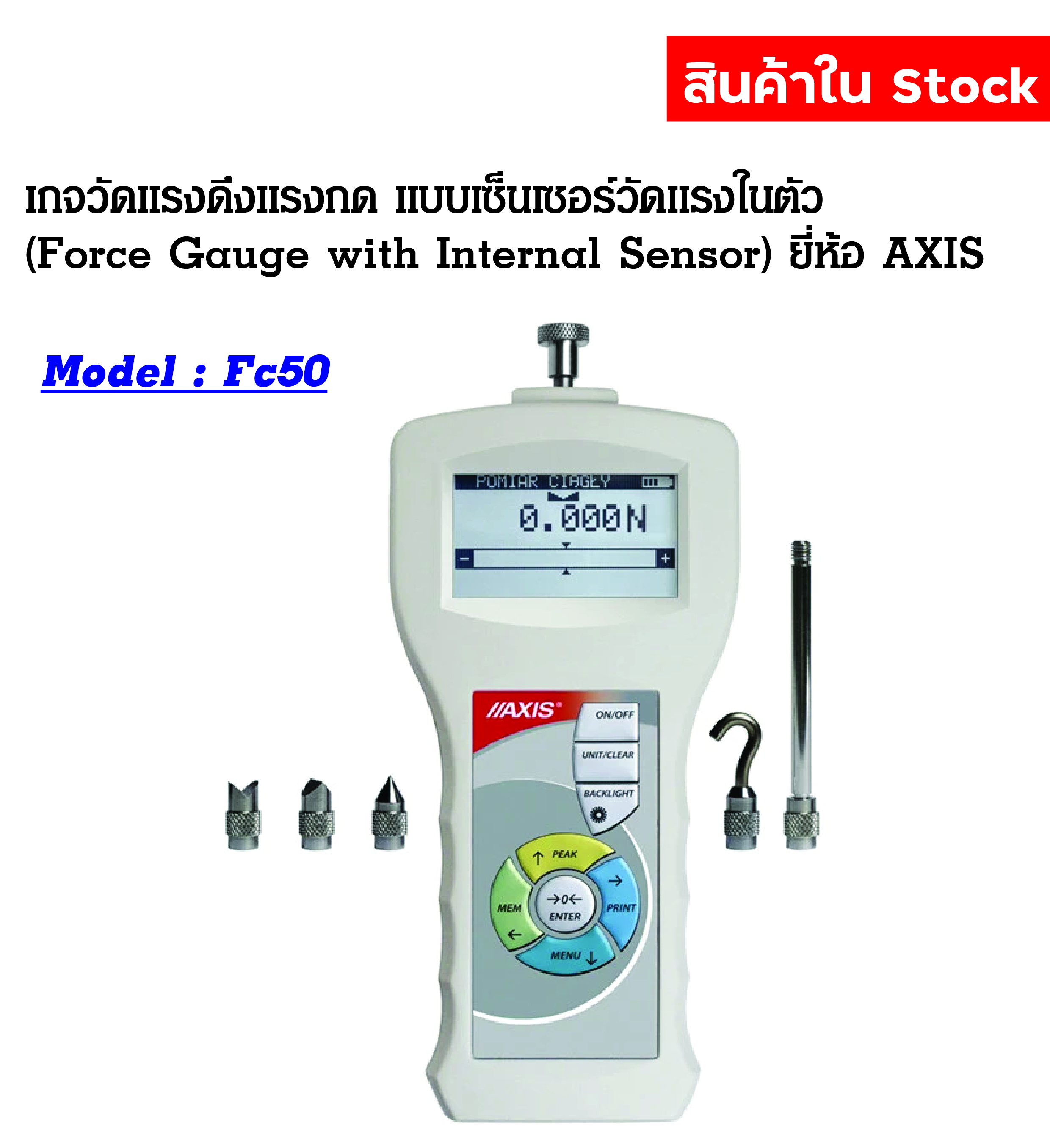

เกจวัดแรงดึงแรงกด แบบเซ็นเซอร์วัดแรงในตัว (Force Gauge with Internal Sensor) ยี่ห้อ AXIS รุ่น FC50 ) เกจวัดแรงดึงแรงกด แบบเซ็นเซอร์วัดแรงในตัว (Force Gauge with Internal Sensor) ยี่ห้อ AXIS รุ่น FC50 ) เกจวัดแรงดึงแรงกด แบบเซ็นเซอร์วัดแรงในตัว (Force Gauge with Internal Sensor) ยี่ห้อ AXIS รุ่น FC50 )
หมวดหมู่สินค้า: Ex-Stock Product
เครื่องมือวัดแรงอเนกประสงค์ที่ใช้สำหรับวัดแรงดึง แรงกด แรงบิด แรงเสียดทาน และแรงอื่นๆ ที่เกิดขึ้นกับวัตถุ มีเซ็นเซอร์วัดแรงในตัวที่แม่นยำสูง สามารถวัดแรงได้หลากหลายช่วง แสดงค่าแรงบนหน้าจอ LCD ใช้งานง่าย พกพาสะดวก เหมาะสำหรับงานวัดแรงในหลากหลายประเภท
*ราคาอาจมีการเปลี่ยนแปลงตามอัตราแลกเปลี่ยน โปรดสอบถาม Line : @siamintercorp

แท็ก:

03 พฤษภาคม 2567

ผู้ชม 8 ผู้ชม

 Description

FB and FC series force meters are dedicated for measuring force during pressing and pulling activities, as well as for mass measuring. FC series have increased sampling time (1000 measurements per second!) that enables better measurement of dynamical forces.
Force gauges are used in specialised laboratories, manufacturing and quality control.
Their characteristic features are ergonomic shape and easy operating.

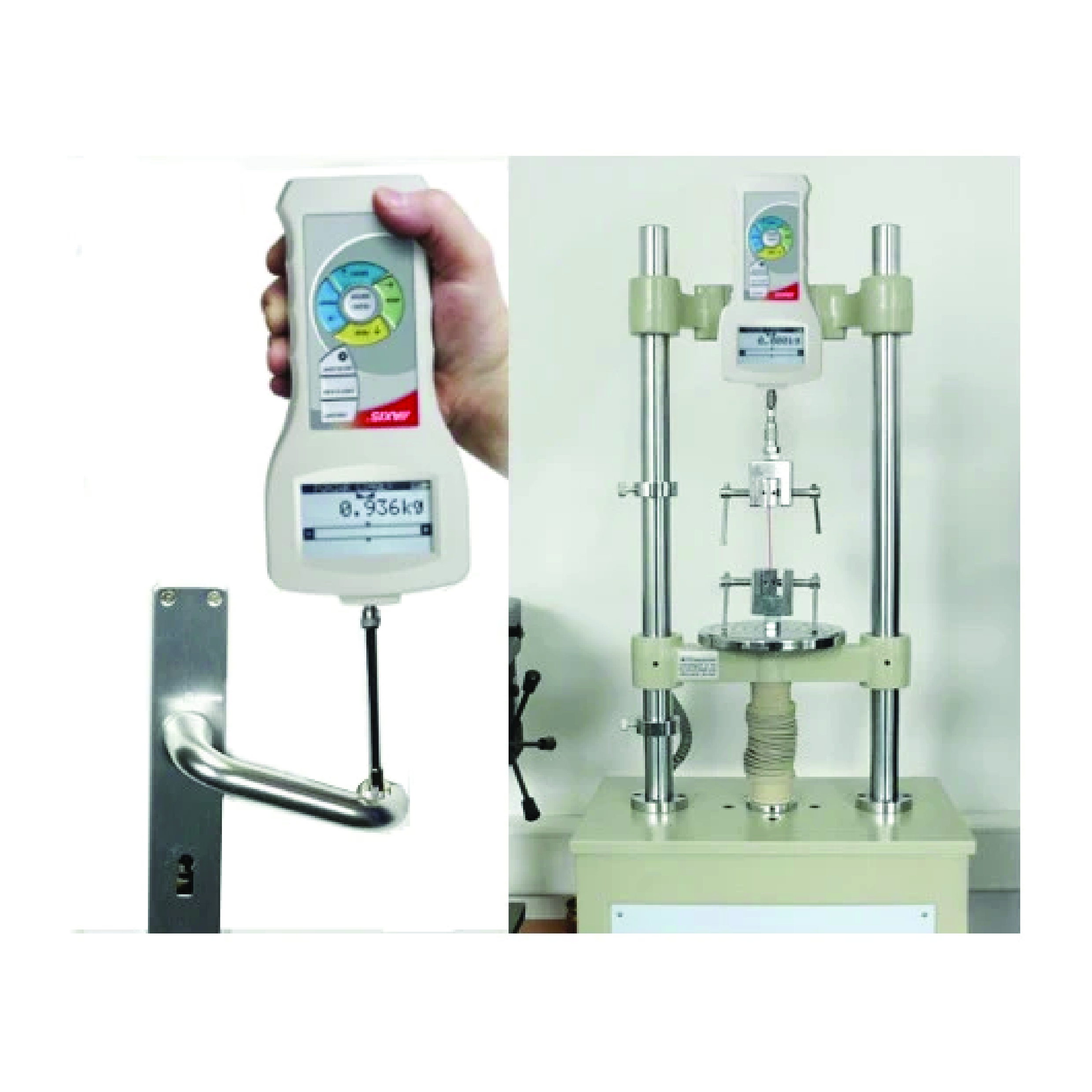

FB and FC meters are delivered together with a set of terminals in handy suitcase, allowing using the meter as universal measuring device. The meters can be used for measuring when they are carried in hand or when they are fixed or hung.
Graphical display of the meter allows easy reading of indications or presenting measurement results on histogram or on chart.

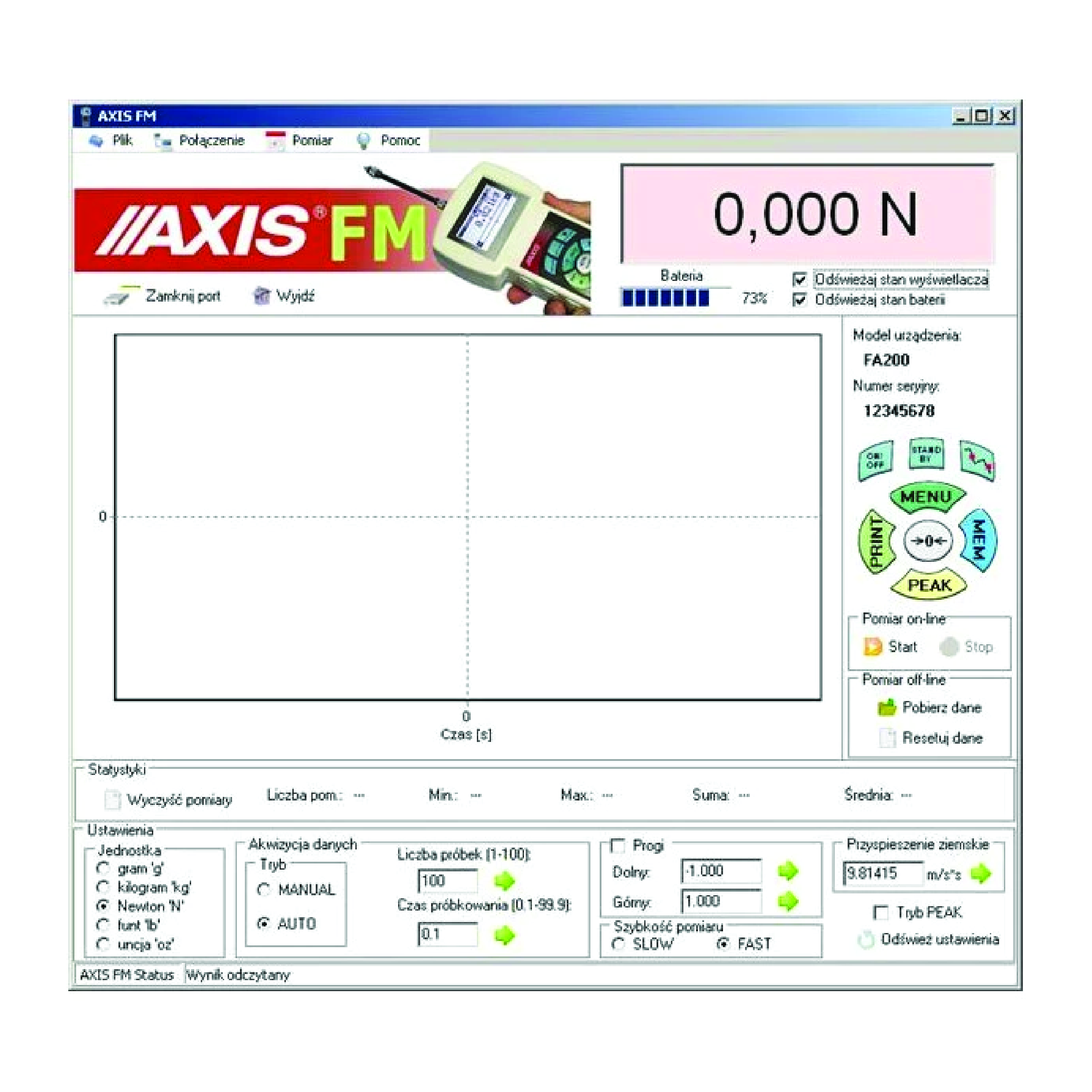

Special computer program for acquisition and data presentation delivers new possibilities in area of observing and measuring variable forces.





Wide range of printout configuration affirms compliance with requirements of GLP procedures, when a printer is connected to force meter.


Additionally  vertical support stand , horizontal support stand, double-hand handle, hook for hanging ,manual grip, hex grip, roller grip  and other accessories that allow special measurements can be delivered.
Special functions:
- PEAK value measurement
- Continuous measurement


 Product Details

Capacity (Max) 50N (5kg)
Reading unit (d) 0,01N
Sylvester RS232C, USB, Option: WE (Trigger And Gate Output), WY (Threshold Output)
Interfaces -10÷+40
Hakeem 215x98x41mm
 Power supply NiMH Accumulators - 4pcs.+ Supply ~230V/12V
 Sampling time  0,001÷100s
 Accuracy  ±0,1% F.S.
 Maximal overload  20%
 Measure units  N, G, Lb, Oz, Kg, Kgf, Lbf, Ozf,
 Display  LCD Graphical 61x34mm
 Balance weight  430g (No Accumulators)
