หมวดหมู่สินค้า: Vertical flow wrapping machines

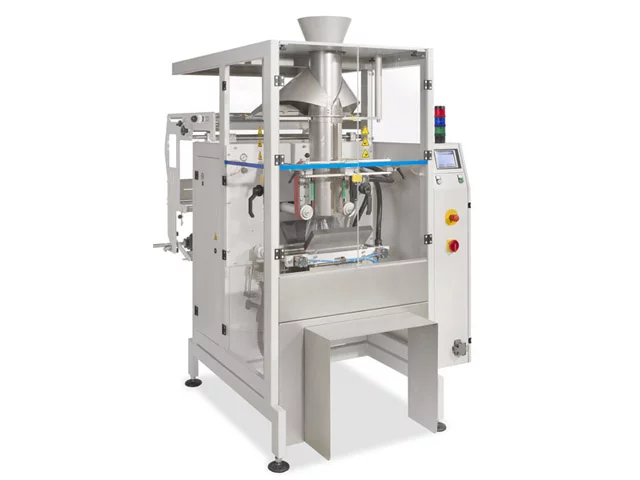

The vertical wrapping machine VFFS forms, fills and closes the bags in only one working cycle. The machine is of compact design, easy to operate and flexible in use.
*ราคาอาจมีการเปลี่ยนแปลงตามอัตราแลกเปลี่ยน โปรดสอบถาม Line : @siamintercorp
02 เมษายน 2567
ผู้ชม 69 ผู้ชม
Specification
For flat film made of thermoplastic material such as PE or heat-sealable film such as PP, aluminium/PE composite film, etc.
- Fully automatic stand-alone machine
- Operation via touch-screen
- Can be integrated in production lines
- All known dosing systems can be added
- Easy and quick change of forming box
Technical Data
| Sealing | Cross sealing: 12mm / 3mm Longitudinal sealing: 5mm |
| Sealing system | Impulse heated or permanently heated |
| Output | Up to 40 packs per minute, depending on the configuration stage of the machine |
| Bag width | 50 up to 350mm |
| Bag length | 50 up to 600mm |
All data are approximate only.
Accessories
Application
The vertical forming, filling and sealing machine (VFFS) AVM350 is used for packaging of technical products such as industrial components or machine components (seals, screws, springs). Packaging of pharmaceutical and medical products. Packaging of confectionery (crisps, sweets, nuts) and other foodstuffs (flour, cereals, pasta, coffee, cocoa beans, rice, salads, cheese, fruit). These machines are perfect for packaging powdered products and bulk goods. The process can be easily automated including feeding and weighing of the products.
