Data logger via RS-232 to CF card.
*ราคาอาจมีการเปลี่ยนแปลงตามอัตราแลกเปลี่ยน โปรดสอบถาม Line : @siamintercorp
04 มิถุนายน 2567
ผู้ชม 192 ผู้ชม

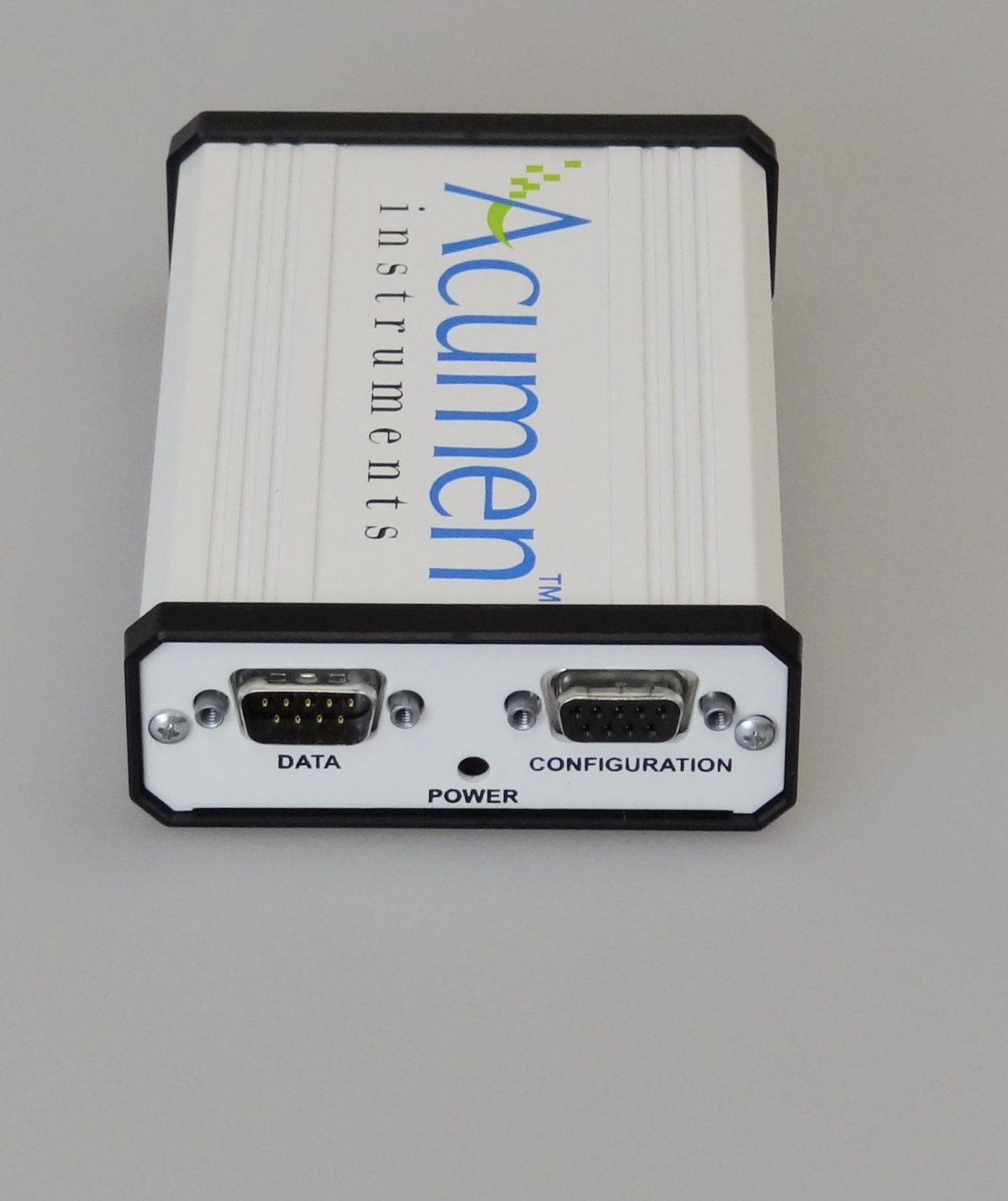

The Acumen Instrument data logger SDR2-CF is the solution to the data logging on the serial port RS-232 of all the indicators in our offer. Allows record data to PC compatible files to a Compact Flash card supporting FAT32 file system. It is possible to record data flow from the indicator in a stream or to work on demand thanks to up to 10 messages that the logger can send to the indicator. It is possible also to attach to each record a time stamp so exact timing of the measurement is known.
Technical specification
| Data rates | 50 - 921600 | bps |
| Data formats | 7/8 data bits, none/even/odd polarity , 1/2 stops bits | |
| File format | PC compatible with Windows (FAT 16 or FAT 32) | |
| Storage device | Compact Flash card | |
| Power supply | 5-30 | VDC |
| Consuption | 350 (recording) , 250 (low power mode), 100 (idle) | mW |
| Working temperature | -40°C to + 85°C | |
| Dimensions | 12,4 x 8,57 x 3,12 | cm |
| Weight | 241 (without the CF card) | g |
