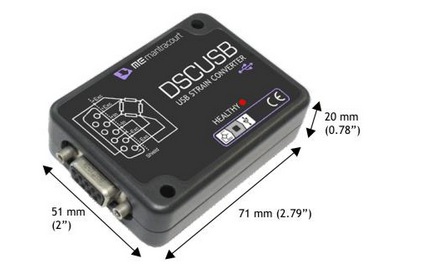

The DSCUSB is a compact, high performance strain gauge digital signal conditioner with USB connectivity aimed at applications which require high-accuracy measurement repeatability.
A rugged ABS IP50 enclosure makes the device suitable for all environments. Simply by plugging the device into a PC, data can be extracted from most strain gauge bridge input sensors and acquired by software which allows data manipulation removing the need for amplifiers, filters & multimeters. No additional power supply is required.
Although ideal for 1 to 1 interface the device can connect with multiple sensors with the use of a suitable hub. Available in ASCII protocol, offering higher resolution and lower temperature drift.
Ideal for all strain gauge bridge based sensors including load, weight, force, torque, pressure & displacement, the device simply plugs into your PC where data can be acquired and manipulated by accompanying software.
Technical specification
| Strain Gauge Excitation System | 4 wire |
| Strain Gauge Excitation Voltage | 5 VDC |
| Strain Gauge Sensitivity | -3 až +3mV/V |
| Limit Strain Gauge Drive Capability | 80 Ω ( max. 4 snímače 350 Ω paralelně zapojené) |
| Internal Resolution | 16 miliónů div. |
| Supply Voltage | 5 VDC |
| Operational Current | 68 mA (max. 75 mA) |
