the use in industrial applications or as display for bridge and hybrid weights
*ราคาอาจมีการเปลี่ยนแปลงตามอัตราแลกเปลี่ยน โปรดสอบถาม Line : @siamintercorp
02 กรกฎาคม 2567
ผู้ชม 216 ผู้ชม

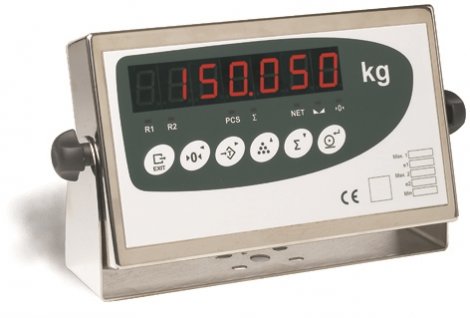

The digital indicator Smart is designed for the use in industrial applications or as display for bridge and hybrid weights. The Smart basic includes connectors IP20 and port RS232. It exists modification of I/O cards. The I/O card comprises port RS485, 4 digital input, 4 digital output, analog output and real time.
Technical specification
| Maximal selectivity of load cell | ± 3,0 | mV/V |
|---|---|---|
| Input impedance | 200 | MOhm |
| A/D conversion | AD24 | bitů |
| Excitation | 6,1±0,5 | VDC |
| Port Tx/Rx: | RS232 | dulex |
| Dimensions | 282x158x71 | mm |
| Measuring speed | 50 | měř/s |
| Linearity error | < = 0.01 | % |
| Minimal impedance of load cell | 85 | Ohm |
| Maximal impedance of load cell | 1 | MOhm |
Additional information
| 89350 SMART ( basic ) |
| 89351 SMART ( IP65 ) |
| 89352 SMART with real time |
| 89353 SMART with real time IP 65 |
|
89354 SMART + I/O card (with real time)4+4 I/O |
| 89355 SMART + I/O card IP 65 (with real time) 4+4 I/O |
| 89356 SMART + I/O card + analog output (with real time) |
| 89357 SMART + I/O card + analog output IP 65 (with real time) 4 + 4 I/O |
| 89370 Real time card for SMART basic |
