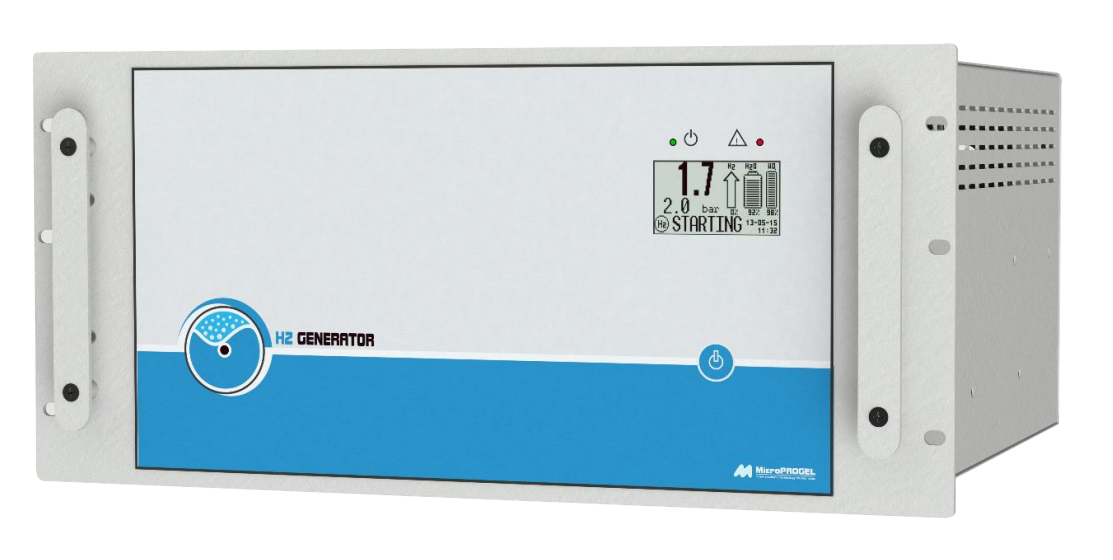

The RACK.WM series generators use an electrolytic cell with polymeric membrane (PEM) to produce pure hydrogen. The innovative gas drying system is completely maintenance-free and allows continuous operation, 24 hours a day. The exclusive, electronically-controlled gas/liquid separator, automatic checking for internal leaks whenever starting the unit, and constant control of operating parameters guarantee maximum safety. Up to 20 units can be connected in parallel. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
*ราคาอาจมีการเปลี่ยนแปลงตามอัตราแลกเปลี่ยน โปรดสอบถาม Line : @siamintercorp
05 มิถุนายน 2567
ผู้ชม 736 ผู้ชม
Main Applications
- Carrier gas for GC and GSMS
- ICP-MS collision gas
- Flame ionization detector feed gas (FID)
- Refilling metal hydride tanks for use with fuel cells
Main Futures
- Available Flow-rates:
- 3300 cc/min • Outlet pressure: up to 16 bars • Hydrogen purity: >99.99999% • Drying system: Innovative maintenancesfree system for continuous 24-hour operation
- • Internal water tank: 1.1 litres, with electronic level control and “Autorefill” from external tank included as standard
- • Dimensions: Standard 5U RACK (40 cm deep)
- • Weight: 29 kg
- • Certification: CE, ISO9001
1 Touch-screen LCD 128x64 pixel
2 START/STOP button
3 Hydrogen Outlet
4 Water feed connector for filling the internal tank
5 Water feed connector for emptying the internal tank
6 Oxygen vent
7 Hydrogen vent
8 Water fitting for waste water
9 Water filters
10 Cooling fans air intake
11 I/O connectors: RS485 – RS232 – USB – Digital I/O
12 Power connections 24 VDC
13 Holes for sliding rails
14 Front handles
