Rotary Evaporator 1L/2L R-3001 |
Description : |
Applications : |

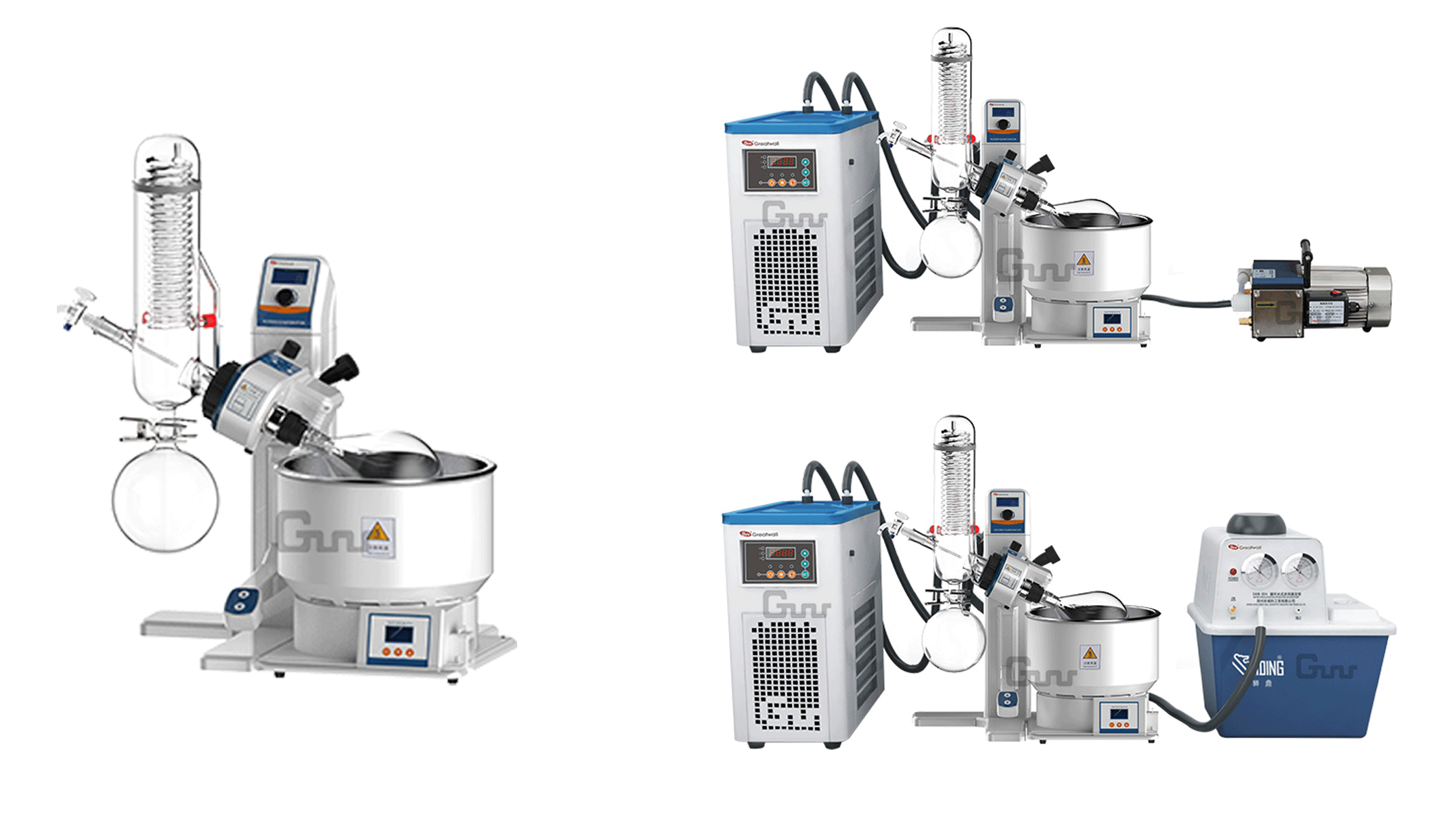

It is suitable for experiment of evaporation, distillation or separation of chemicals. It usually works with water circulating vacuum pump and recirculating chiller as a whole system to meet the production and experimental requirements. |
Advantages : |
●Patented technology of double sealing of Teflon(PTFE) AND FV rubber can ensure the negative pressure level. |
Model | R-3001 | |
Rotaion Speed | 10~280 rpm | |
Pressure rise rate of vacuum system | <=0.33kPa/min | |
Temperature Range | RT+5~95℃ | |
Temperature Stability | ±1℃ | |
Temperature Control | Keypad input, digital display | |
Speed Control | Knob setting, digital display | |
Lifting | Motorized lift | |
Lifting Distance | 150mm | |
Lifting Speed | 10mm/s | |
Rotary Motor Power | 40W | |
Heating Power | 1300W | |
Condensing Area | 0.126m2 | |
Evaporating Flask | 500ml, 1000ml | |
Receiving Flask | 1000ml | |
Vacuum Sealing | Double sealing rings made of Teflon+ Viton materials | |
Water Bath size ·Capacity | 250×130mm·6.5L | |
Evaporating Speed | Water | 23ml/min |
Ethanol | 26ml/min | |
Power Supply | Main Machine | 100V~240V, 50/60Hz |
Water Bath | 110V~, 60Hz or 220-240V~, 50/60Hz | |
Ambient temperature | 5~35℃ | |
Environment Relative Humidity | <=70 | |
Protection Class of Shell | IP20 | |
Pollution Prevention Grade | Grade 2 | |
Dimensions | 595W*390D*680Hmm | |
Net Weight | Main Machine | 10KG |
Water Bath | 3.9KG |
Associated Equipment : |
