เครื่องทดสอบแรงดึงของรอยซิลขณะร้อน Hot tack Strengt ยี่ห้อ KOPP เครื่องทดสอบแรงดึงของรอยซิลขณะร้อน Hot tack Strengt ยี่ห้อ KOPP เครื่องทดสอบแรงดึงของรอยซิลขณะร้อน Hot tack Strengt ยี่ห้อ KOPP เครื่องทดสอบแรงดึงของรอยซิลขณะร้อน Hot tack Strengt ยี่ห้อ KOPP เครื่องทดสอบแรงดึงของรอยซิลขณะร้อน Hot tack Strengt ยี่ห้อ KOPP
ออกแบบมาเพื่อทดสอบความแข็งแรงของรอยซิลขณะร้อน เครื่องนี้ใช้หลักการของการดึงชิ้นงานออกจากกันด้วยความเร็วคงที่ โดยชิ้นงานจะประกอบไปด้วยรอยซิลที่อยู่ระหว่างแผ่นวัสดุสองแผ่น เครื่องจะวัดแรงดึงสูงสุดและค่าสัมประสิทธิ์แรงดึงของรอยซิล
*ราคาอาจมีการเปลี่ยนแปลงตามอัตราแลกเปลี่ยน โปรดสอบถาม Line : @siamintercorp

แท็ก: kopp

26 มกราคม 2567

ผู้ชม 2417 ผู้ชม




For sealing with calibrated parameter and for measuring sealingstrength hottack and coldtack.

Sealing strength test in process
with the Labormaster.

Hottack seal strength test according
to DIN 55571-2.


The overview of the strength test results on the display of the Labormaster.


All parameters kept in sight due to the clearly arranged display of the Labormaster.
Sealing strength tester Labormaster

The KOPP Labormaster with integrated Laboratory-Sealer SGPE is now available in the new version LABORMASTER 3200 with touchpanel. Made for measurement of sealing strength (strength of hot sealing and cold sealing / hot-tack and cold-tack) the KOPP Labormaster optimally combines the functions of precise sealing, test of sealing strength, visualization, documentation and data logging.

Hot Tack in accordance with DIN 55571-2:2016-08

Hot-Tack with peel strength measuring devices


Exact sealing results
  • Best reproducibility of sealing parameters:
    Upper sealing temperature, lower sealing temperature, sealing time, withdrawal time, sealing force and withdrawal rate.
  • Sealing procedures according to DIN 55529 and ASTM F88-05, ASTM F2029-00 Hot Tack determination in accordance with ASTM F1921-98

Sealingstrenght Test
  • Hot Tack in accordance with DIN 55571-2
  • The unit operates in accordance with a test arrangement developed by EMPA - St. Gallen.
  • Immediate measurement of sealing strength in Newton.

Visualization with curves
  • Visualization and record of force/time diagram via colored touchpanel..
  • Several curves can be shown and evaluated at the same time.
  • Curves already recorded can be compared with the actual results.
  • Furthermore, the measured peak value of the tearing force profile, the moment of the peak, the duration of the tearing process and the mean tearing force are displayed.
  • Not only the measurement results but also the sealing and test parameters are recorded.

Documentation
  • At the push of a button curves, sealing parameters, test descriptions and results are recorded. Data logging with possibility of recording
  • It is very simple to record the complete measuring data with sealing parameters, test description and results in CSV format.
  • Data recorded in CSV format can be transferred for further processing in other analysis programs.
Despite all the possibilities offered by the Labormaster 300, operation is very easy and safe. You get reliable and comparable results. Thanks to the USB interface the results can be recorded. All sealing parameters and sealing force are checked during calibration with calibrated testing equipments (DKD/SCS). Constant control is guaranteed.

Using the strip cutter (accessory) test strips can easily be produced. Inside the small cutting device two blades are placed and arranged in parallel - they care for an exact cut of strips which can immediately be used.0

Application
Research and development
The units assist you in development of new packaging, coatings, colors, covering coats and packaging shapes. It is a simple and fast way to test the heat sealability of flexible packaging, covering coats and new film or compounds.
Quality control and assurance
To test the sealing characteristics, the sealing strength and determine the parameters to obtain best possible results in production. Suitable for heat sealable  flexible packaging materials such as films, compounds, laminates, packaging papers and so on and for control of covering coats, coverings, print colors, and others.

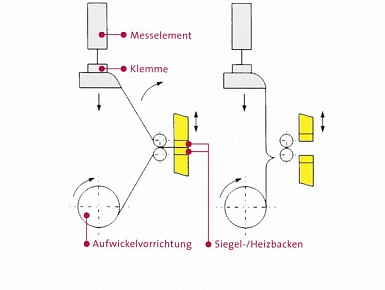

Functioning
The test is started at a push of the button after insertion of the testing material. The test material is sealed under observance of the adjusted parameters and the sealing weld will be separated after expiration of the preset time (cold tack) or immediately after sealing procedure (hot tack). The Kopp-Labormaster measures the forces necessary to separate the sealing weld and records the results. The test results are visualized in a force/time diagram on the touchpanel and can be evaluated in an instant. All measuring data (preset parameters, test description and results) can be recorded in CSV format and be transferred for further processing in other programs.

- Calibration certificate
Acceptance test certificate (calibration certificate)
Laboratory Sealer SGPE 3000, SGPE 3200 and Sealstrength / Hottack Tester Labormaster 3000, Labormaster 3200 are calibrated with DKD prooved testing equipment. An acceptence test certificate (calibration certificate) will be issued.
- Supporting table SGPE

Material supporting table
on the level of sealing contact surface, vertically and horizontally adjustable.

- DATAVIS Hottack / Coldtack Visualization

Datavis Hottack and Coldtack Visualization
Software tool designed for visualization (on PC) and print of Hottack diagrams and Coldtack diagrams.

- Working table

Working table
to support the laboratory sealer SGPE 3000 or the Labormaster 3000. With four lockable castors.

- Sample cutter

Sample cutter
for preparing test stripes easily for the sealingstrenghttest (hottack) with the Labormaster 3000. Two paralell cutting blades in the distance of 45 mm (15 mm and 25 mm as an option). Incl. cutting board.

- Sealing bars plane

sealing bars with plane surface
in width of 5 mm, 10 mm und 20 mm - PTFE-armourcoated or uncoated - special versions on request.

- Sealing bars longitudinally groved

sealing bars with longitudinally grooved surface
in width of 5 mm, 10 mm und 20 mm - PTFE-armourcoated or uncoated - special versions on request.

- Sealing bars cross grooved

sealing bars with cross grooved surface
in width of 5 mm, 10 mm und 20 mm - PTFE-armourcoated or uncoated - special versions on request.

- Sealing bars goffered

sealing bars with goffered surface
in width of 5 mm, 10 mm und 20 mm - PTFE-armourcoated or uncoated - special versions on request.

- sealing bar with silicone rubber

Sealing bar with silicone rubber
to seal against metal bar (hard against soft). Silicone bar can be heated as well.


Technical Data
Sealing temperature ... 300 ° C  each sealing bar
regulated separately
Sealing time 0.2 ... 99.99 s digitally adjustable
Withdrawal time 0.2 ... 99.99 s digitally adjustable
Sealing force 60 ... 1800 N adjustable, digital display
Withdrawal rate 0.2 ...12 m/min. digitally adjustable
Width of test strip 15 mm to 60 mm
Tensile force 1,5 N to 200 N
Separation speed 0.1 ... 6 m/Min.
