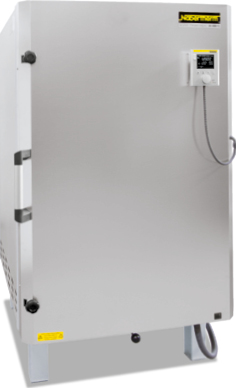

Chamber kiln N 300
Chamber kiln N 440

Heating from five sides and a special arrangement
of the the heating elements ensure
optimal temperature uniformity

Semi-automatic air inlet flap for residual drying in
chamber kilns up to 300 liters.
The flap closes automatically at a set temperature
and does not have to be closed manually after the drying phase.

First-class craftsmanship, professional design, long service life and excellent temperature uniformity – chamber kilns from 100 liters up to 2200 liters round off the range of kilns for professionals. These kilns have proven their worth for many years, firing porcelain and stoneware and annealing glass, even when tightly stacked and at high working temperatures. You will find these chamber kilns in ceramic workshops, studios, clinics, schools and in private homes. They are recommended for frequent firing, when the kilns are tightly stacked and when excellent temperature uniformity is needed.

A kiln should not be operated permanently to its performance limits. If the kiln is often fired to its performance limits, we recommend our chamber kilns to 1340 °C. Most chamber kilns are available from stock.

Standard design

  • Heating elements on support tubes ensure free heat radiation
  • Heating from five sides and a special arrangement of the heating elements ensure optimum temperature uniformity
  • Scope of delivery includes SiC floor plates to protect the floor heating and provide for safe stacking of the kiln furniture
  • Base included in scope of delivery
  • Door cover made from structured stainless steel
  • Semi-automatic air inlet flap that closes automatically after the drying phase in the firing program for chamber kilns up to 300 liters
  • Motor-driven exhaust air flap in the middle of the kiln roof for optimum ventilation of the kiln with chamber kilns from 440 liters
  • Defined application within the constraints of the operating instructions

Function N 40 E - N 100 E N 140 E - N 280 E N 500 E N 100 - NW 300/H N 440 - NW 1500/H
Catalog page 14 12 - 13 12 - 13 8 - 11 8 - 11
Multi-layer insulation with light-weight refractory bricks
No use of insulation materials that are classified as carcinogenic according to TRGS 905, Class 1 or 2
Rugged, self-supporting, vaulted arch construction -
Door with durable seal, precisely ground by hand
Dual-shell housing, galvanized steel side panels
Protected door contact switch
Solid state relays ensure low-noise heater operation
Removable controller for comfortable operation
Air inlet flap closes automatically after residual drying - - -
Infinitely adjustable fresh air flap * *
Scope of delivery includes an option for connecting an exhaust air pipe (80 mm diameter) * *
Motor-driven exhaust air flap -
Five-sided heating on support tubes - - -
Three-sided heating, protected in grooves - - - -
Three-sided heating on support tubes - - -
Two-sided heating, protected in grooves - - -
Scope of delivery includes 3 ceramic supports and shelf - - - -
Scope of delivery includes. SiC floor plate - -
Scope of delivery includes base
Door cover made from structured stainless steel - - -
l Standard
 Option
- Not available
* Already motor-driven in the standard version
Additional Equipment Chamber Kilns
Manual zone control to optimize temperature uniformity Motor-driven air inlet flap that can be opened and closed in relation to the program
Cooling fan for kilns up to 300 liters to reduce process times Stainless steel exhaust hood
Motor-driven exhaust air flap Door hinges on the left side
Base in special height Base mounted on castors
Charging frame provides for ergonomic loading and unloading in front of the kiln Kiln furniture
Observation hole in the kiln door (diameter 20 mm) Second bogie for NW kilns from 440 liters
Door locking kit as set consisting of two door locks with two keys
