ใช้ในการรักษาอุณหภูมิของน้ำให้คงที่ เครื่องนี้ใช้กันอย่างแพร่หลายในระดับอุตสาหกรรมและในครัวเรือน เช่น การผลิตอาหาร การผลิตยา การผลิตสารเคมี การอาบน้ำ การล้างจาน และการเลี้ยงปลา
*ราคาอาจมีการเปลี่ยนแปลงตามอัตราแลกเปลี่ยน โปรดสอบถาม Line : @siamintercorp
07 มิถุนายน 2567
ผู้ชม 3200 ผู้ชม
 |
 |
 |

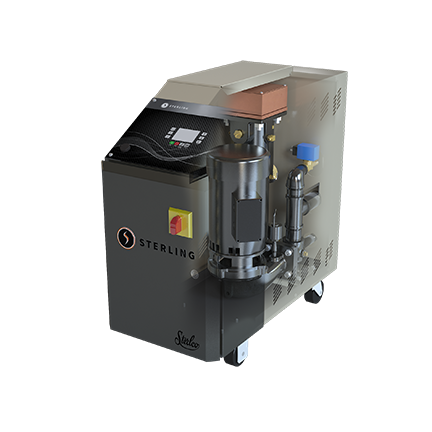

| The Sterlco® TC130 Series is the most advanced TCU from Sterling. This latest innovation features increased options for maximum flexibility, along with state-of-the-art controls and a 3.5” HMI color screen. These advanced controls provide predictive maintenance features as well as intelligent capabilities like Pressure Adaptive Technology utilizing digital pressure transducers. Troubleshooting is made easy via USB data logging and remote monitoring. All of this comes with the longevity and reliability you’ve come to expect from Sterling TCUs. |
||
| Intelligent Design | ||
| • Pressure adaptive technology • State-of-the-art M5 controller • Digital pressure transducers |
||
| Predictive | ||
| • Contactor cycle life indicator • USB data logging for improved analysis & troubleshooting • Automatically cycles between half & full heat |
||
| Reliable | ||
| • Better controls • Predictive maintenance • Expanded warranty |
||
| Standard Feature | ||
| • Compact design with easy-access side panels for rapid maintenance • Programmable auto vent sequence to automatically vent air from the system at start-up Independent high temperature safety thermostat to protect from heater overload • Motor branch circuit over-current/overlead protection • Integrated cooling solenoid valves for efficient unit cooling • Pressure transducers with digital readout • Non-fused lockable rotary through door disconnect • 9kW dual circuit immersion heater with IEC contractors • Operator friendly PID temperature controller with Process and Setpoint readouts and straightforward unit performance data • New M5 controller with 3.5” color screen HMI • 150 psig (10.3 bars) pressure relief valve • SICB/carbon pump seal to maximize pump life • 0.75” water supply connection, 1.5” process connections; valve size matches drain size • USB data logging • Pressure adaptive technology • Contactor cycle life monitoring • Quick cool for rapid unit cooling |
||
| Option features | ||
| Remote monitoring • 12 kW, 18 kW, or 24 kW heater options, 36 kW & 48 kW for upright units • Maintained START/STOP switch • Closed loop heat exchanger, model varies with unit sizes • General fault audio/visual alarm to alert operators of unit issues • Pressure regulator/relief valve for water supply • Auto system water purge • Y-strainer to protect unit from high particulate fluid • 300°F (149°C) operations, includes |
||
| Service & Performance Category | TC110 | TC120 | TC130/TC131 |
| Heating Capacity | Up to 12kW | Up to 24 kW | Up to 48 kW |
| Pumps | Up to 7 1/2 HP | Up to 7 1/2 HP | Up to 10 HP |
| Valve Sizes | 1/4" -3/4: Soleniod | 1/4" - 1 1/2" Soleniod 1/2" - 1 1/4" Modulating |
1/4" - 1 1/2" Soleniod 1/2" - 1 1/4" Modulating |
| Voltages | 230 - 460 V, 60 Hz | 208 - 575 V, 60 Hz 380 - 415 V, 50 Hz |
208 - 575 V, 60 Hz 380 - 415 V, 50 Hz |
| Controller | Eurotherm | Eurotherm or M2C | M5 |
| Warranty* | 1 Year Parts | 1 year parts (Eurotherm) 2 year parts (M2C) |
2 year parts, optional add on 3 year parts |
| Available Features | |||
| Hight Temperature Safety Thermostat | • | • | • |
| Low Supply Pressure Sensing | • | • | • |
| Manual bypass | • | • | • |
| Pressure regulator/relief Valve | • | • | • |
| Mold purge | • | • | • |
| Quick Cool Switch | • | • | • |
| Programmable Auto-vent | • | • | • |
| Tune | • | • | • |
| Audio/visual alarm | • | • | |
| 4-20mA | • | • | |
| RS-485 MODBUS | • | • | |
| RS-485 SPI | • | • | |
| RS-232 MODBUS | • | • | |
| Ethernet | • | • | |
| Half/Full Heat | • | • | |
| Cascade Control / Remote Probe | • | • | |
| Flow Meters | • | • | |
| Remote Monitoring | • | ||
| 3.5" Color Screen HMI | • | ||
| USB Data logging | • | ||
| Pressure Transducers | • | ||
| Adaptive Pressure Technology | • | ||
| Multi-Zone Units | • | ||
| Remote Controller Enclosure | • | ||
| Flow Switch | • | ||
| Welded contact shutoff | • | ||
| Closed Loop Heat Exchanger Option | • | ||
| * Controllers have a 3 year parts warranty as standard. | |||
| Brochure: | |
 |
Technical Specifications |
|
|
