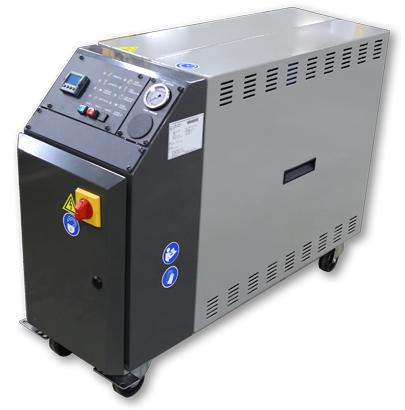

| 9012 Series Positive/Negative Water TCU |
| Troublesome cooling circuit leaks in processes can result in serious production losses. The leaks may be due to small stress cracks, which leak under pressure. Our Positive/Negative Pressure TCU uses a liquid venturi to draw cooling water through the mold under negative pressure. Precise temperature control is provided by the operation of a solid state or microprocessor controller, which activates a heater or a cooling water solenoid as required. |
| Standard Feature |
| • Off-the-shelf microprocessor-based PID temperature control with Process and Set Value LED readout • Graphic control panel with indicating and warning status lights • Operating range of 32ºF to 180ºF (0ºC to 82ºC) • Open reservoir vented to atmosphere • Single stage Incoloy™ immersion heater with IEC mechanical contactors • 1/4” cooling solenoid valve (Cv=0.85) • Hi/low level sensor with 3/8” makeup solenoid valve • Low supply water pressure switch • 150 psi (10.3 bars) pressure relief valve • 2” (5 mm) casters • 3/4” cooling water connections • Manually-operated 3-way valve for changeover to negative pressure mode • Centrifugal pump • 1-year warranty on parts and labor at factory • 5-year warranty on controller • Lifetime warranty on pump housing, impeller, heater tube, piping • 460/3/60 or 230/3/60 standard operating voltage • 9 kW heater |
| Optional features |
|
• Remote control enclosure (see next page for details) |
| Brochure: | |
 |
Technical Specifications |
