เครื่องแก้วปฏิกรณ์ (Glass Reactor) ยี่ห้อ Greatwall รุ่น 5L (Floor Type) (SIT124)
*ราคาอาจมีการเปลี่ยนแปลงตามอัตราแลกเปลี่ยน โปรดสอบถาม Line : @siamintercorp

10 มกราคม 2567

ผู้ชม 1650 ผู้ชม

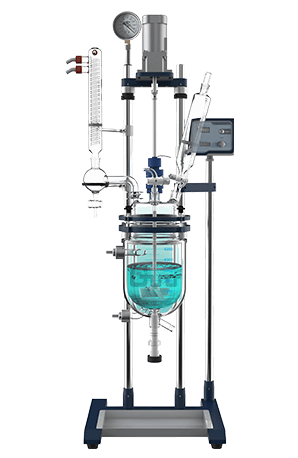

Glass Reactor 5L (Floor Type)

Description :

Applications :
Speed-regulation glass reactors are mainly used for synthetic reaction, distillation and concentration of different types of materials. We have single wall, double wall and triple wall glass reactors. The reactor can be pumped to a negative pressure state according to some experimental requirements. A constant pressure funnel or an adjusting valve on the feeding bottle allows you to add material to the vessel at a uniform and controlled speed. Condenser helps to recover some materials distillated during reaction. Circulating liquid can be filled into the jacket to heat or cool materials inside. Triple wall glass reactor with two jackets, the inner jacket is for circulating liquid, and the outer layer should be pumped to vacuum condition for thermal insulation.

Advantages :
  • High borosilicate glass has good physical and chemical properties.
  • Wide working temperature range: -80℃ to 200℃.
  • It can work under normal pressure and negative pressure, its vacuum degree can reach to 0.095MPa.
  • The vessel can withstand the pressure range from -0.1MPa to 0MPa.
  • Teflon(PTFE) and FV rubber material cock or discharge valve; Sealing together with PTFE covered O ring.
  • Designed with vacuum gauge and temperature display unit.





Specifications :
High borosilicate glass composition table
Item Specifications
Linear thermal expansion coefficient 3.33x10 'k"'
Silicon dioxide 80.14%(g/g)
Ferric oxide 0.023%(g/g)
Aluminum oxide 2.22%(g/g)
Calcium oxide 0.15%(g/g)
Magnesium oxide 0.026%(g/g)
Potassium oxide 0.077%(g/g)
Sodium oxide 4.36%(g/g)
Diboron trioxide 13.00%(g/g)



Technical Specifications :
Model Jacket capacity(L) Reaction glass vessel capacity(L) Stirring speed(rpm) Max.torque(N`m) Power supply Operating pressure(Mpa) Dimensions(mm) Net weight(kg)

GR-5

(floor type)





1.5





5





50~500





0.3





220-240~,50/60Hz




Ordinary pressure or negative pressure


553W*520D*1688H


34

GR-5Ex

(Explosion-proof, floor type)



647W*520D*1688H



50



Recommended Solution:
Glass Reactor Temperature control device Vacuum Pump


GR-5
(floor type)

GR-5Ex
(Explosion-proof, floor type)


DL30-300



ZT-5-200-40H


 MP-201



SHB-III
