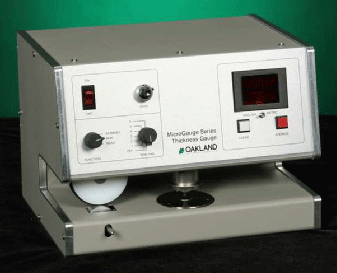

เครื่องวัดความหนาของฟิล์ม กระดาษ และกระดาษชำระ (MicroGauge Benchtop Caliper) ยี่ห้อ Oakland รุ่น Model MX-1210
*ราคาอาจมีการเปลี่ยนแปลงตามอัตราแลกเปลี่ยน โปรดสอบถาม Line : @siamintercorp

17 มีนาคม 2566

ผู้ชม 1447 ผู้ชม



  MX Series Overview Description
Rugged & cost-effective, the MX-1210 MicroGauge can provide accurate profiling of thickness of paper & plastic films with resolution to 10 microinch, accuracy to 20 microinch or better.

Stand-alone or software-driven thickness profiling couldn’t be simpler.  The Model MX-1210 utilizes a precision LVDT sensor, contact foot and an isolated “C” frame assembly and resolves to ten millionths of an inch (0.01 mil) with accuracy to 20 microinches.  Rugged and cost-effective, the MicroGauge can provide accurate measurement of caliper or thickness of paper, tissue, and plastic films.  Drive increments can be set for 1 to 6 inch steps (paper) or 0.20 to 4.0 inch steps (film) with other ranges available.  Statistics are reported on the display on the faceplate, on optional Ticket Printers (see photo lower right), and the MX-1210 can operate our Model MX-1300 Quality Control Software (see Software Plots above right).

Designed for rugged dependability and ease-of-use, the MX-1210 can help solve the toughest thickness deviation problems.  Oakland’s Model MX-1300 Process Control Software system comes complete with detailed statistics including information expressed in Percent against Average Gauge, Polar Plots to show blown film die variation, and Fourier Analysis.



 Download Brochure
 MX-1300 Profile Software
Emveco Pro Software



ขอใบเสนอราคา
