Model | Max. Capacity | Division | Price. |
ATZ220 | 220 g | 0.001 g | 31,xxx .- |
ATZ320 | 320 g | 0.001 g | Contact. |
ATZ520 | 520 g | 0.001 g | Contact. |
ATZ1200 | 1200 g | 0.01 g | 31,xxx .- |
ATZ2200 | 2200 g | 0.01 g | 32,xxx .- |
|

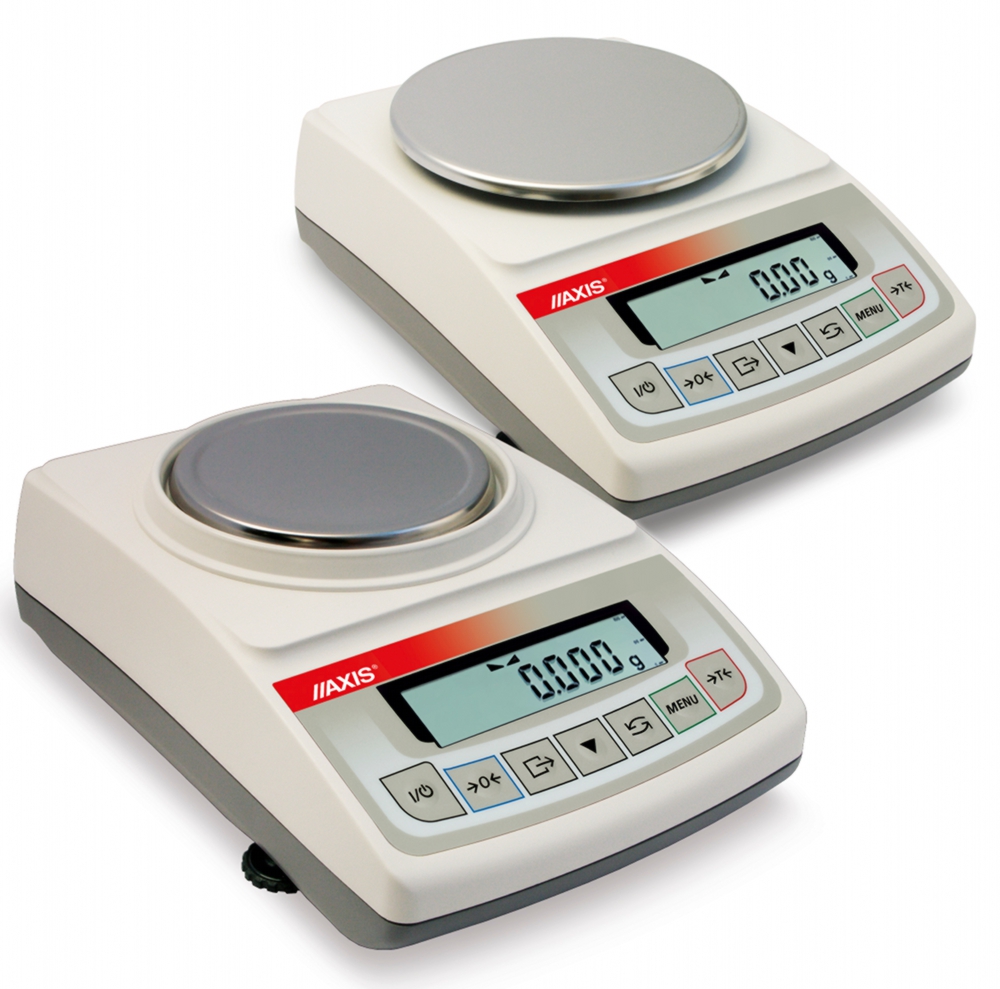

ATZ series laboratory balances without internal calibration mechanism are designed for popular applications in laboratories, production, including applications that require legalisation. Special functions: |
Technical Data: | |||||
Model | ATZ220 | ATZ320 | ATZ520 | ATZ1200 | ATZ2200 |
Capacity (Max) | 220g | 320g | 520g | 1200g | 2200g |
Reading unit (d) | 0,001g | 0,001g | 0,001g | 0,01g | 0,01g |
Tare range | -220g | -320g | -320g | -320g | -320g |
Accuracy class | II | ||||
Working temperature | +10÷+40 | ||||
Interfaces | standard: RS232C; options: USB, LAN, Wi-Fi | ||||
Dimensions | 185x290x90mm | ||||
Weighing time | <4s | <3s | <3s | <2s | <2s |
Pan size | ø115mm | ø115mm | ø115mm | ø150mm | ø150mm |
Balance weight | 2,1kg | ||||
Power supply | -230V 50Hz 6VA / 12V 1,2 A |
Optional option on order : | Option Name | NET PRICE |
Hook for hanging load (Link.)
|
Contact. |
|
RS232C + USB | Contact. | |
RS232C+LAN (ethernet) | Contact. | |
RS232C+Wi-Fi | Contact. | |
Scale-computer cable WK-1 (RS232C; 2,5m) (Link.) |
Contact. |
|
Density kit |
Contact. |
|
PEN-01 data logger |
Contact. |
|
PROCELL computer software |
Contact. |
|
Second display R-01 on cable (Link.) |
Contact. |
APPLICATIONS: |
CERTIFICATES: PDF File |
Product Brochure. User manual. |
