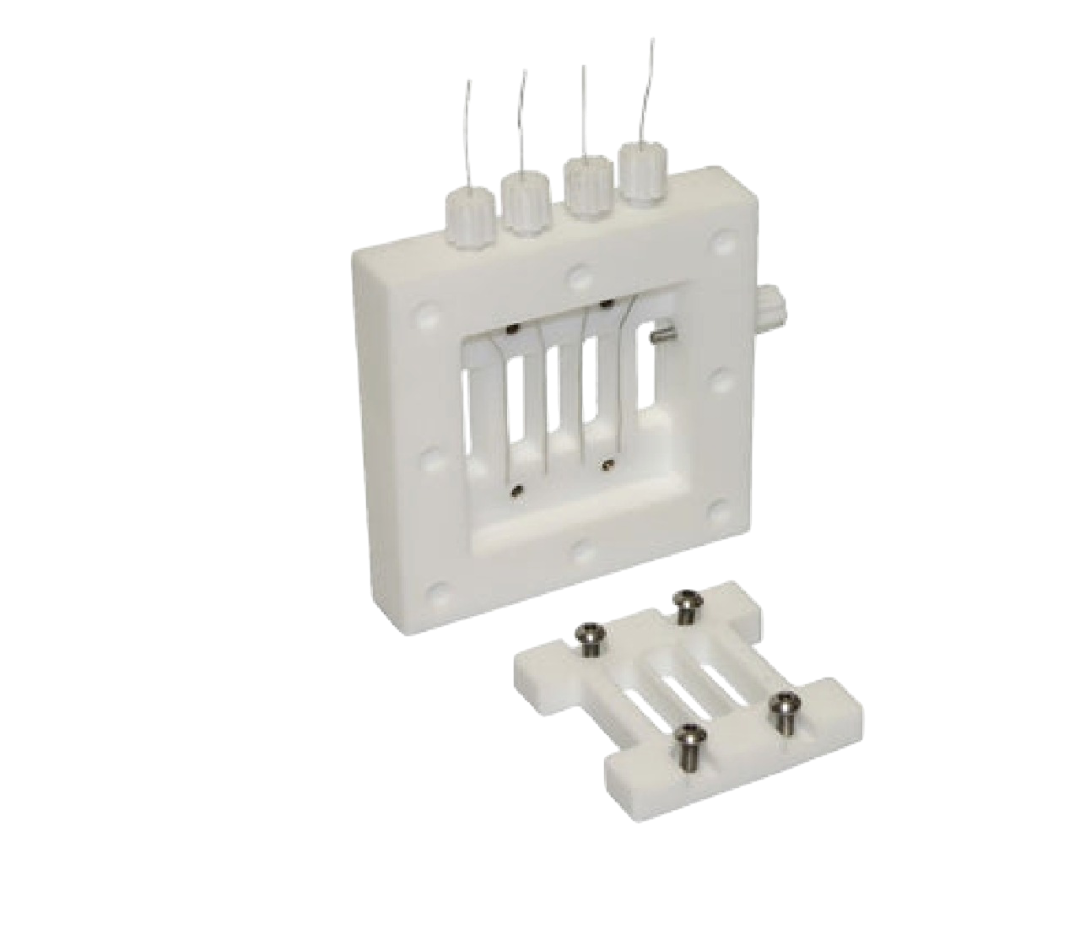

Ionic Conductivity Cell TIC-95 | Thesix Tech

The sample test membrane that Ionic Conductivity Cell holds can be integrated to standard test stand to regulate different parameters. Precise evaluation of membrane conductivity and resistance can be done via TIC-95’s ability to separate ion flow vs. ion creation voltage drops. Design is focused for in-plane, four probe platinum wire electrode measurement; and it can be used with 5, 10, and 25cm² fuel cell test hardware. The advantage of the 4-electrode in-plane conductivity measurement is the ability to measure impedance (resistance) due only to charge transport and exclude interfacial and charge transfer resistances

Characteristics

Operating Parameters

Note: Please note that this product can be used:

• as it is for membrane conductivity testing
• OR by adjusting your own system and integrating
• OR together with our products listed below:

  Flow Battery Test Cell

  PEM Fuel Cell Hardware (Please inform us about your application for seamless connection)
