การกระตุ้นโครงสร้างขนาดใหญ่ (Structural Excitation) มักเป็นงานที่มีความท้าทายสูง เครื่อง Inertial Shakers ของ Data Physics ถูกออกแบบให้สามารถติดตั้งกับโครงสร้างขนาดใหญ่ เช่น โครงสร้างเครื่องกลหรือโครงสร้างทางวิศวกรรมโยธา เพื่อสร้างแรงสั่นสะเทือนสำหรับการวัด การตอบสนองแบบไดนามิก
ราคา 0.00 บาท
19 มีนาคม 2569
ผู้ชม 61 ผู้ชม

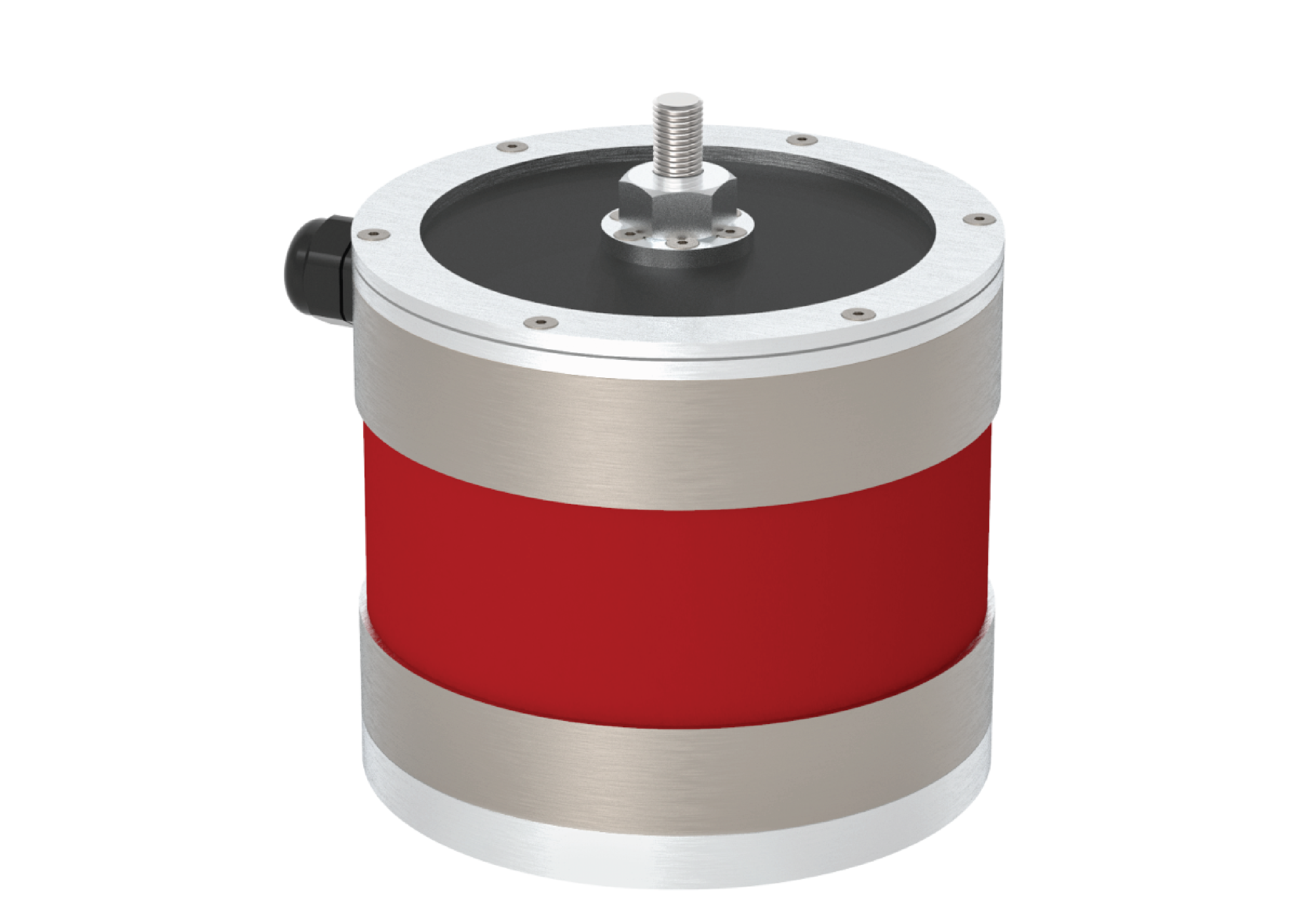

Inertial Shakers

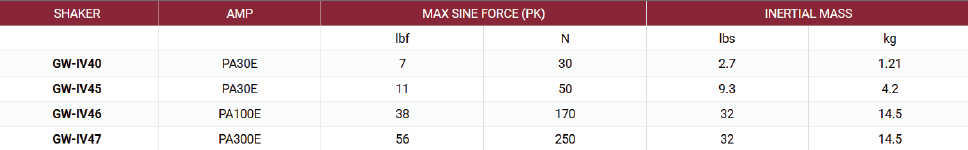

Force outputs from 7 lbf (30 N) to 56 lbf (250 N)
When Large Structures Need to Be Tested, Inertial Shakers Provide the Ideal Solution
| These shakers have found applications for testing buildings, floor loading resonances, ship’s decks for helicopter loading, squeaks and rattle testing in cars, geological exploration, helicopter rotor simulation and active vibration cancellation. The central spigot is attached to the structure under test and the body then provides the inertial mass. |
Inertial Shaker Range
Inertial shakers are permanent magnet devices which may be sealed for short test operations in harsh environments. For prolonged use it is necessary to cool the shakers and this can be achieved either by the attachment of a standard shop dry air line or by the attachment of a small cooling blower to suck the air through the shaker.All power amplifiers used with inertial shakers may be fitted with an internal sine signal source to provide simple excitation for the shaker. Externally generated signals may also be applied to the power amplifier.
| STANDARD FEATURES |
|
|
|
| TYPICAL APPLICATIONS |
|
|
|
|
|
Made in the UK: About the GW Range
In 2005, Data Physics acquired Gearing and Watson Electronics, Ltd., a renowned UK-based manufacturer of electrodynamic shakers,acoustic power generators, and underwater acoustic systems. The Gearing & Watson products comprise the “GW” range, proudly designed and manufactured in the UK by Data Physics.
 |

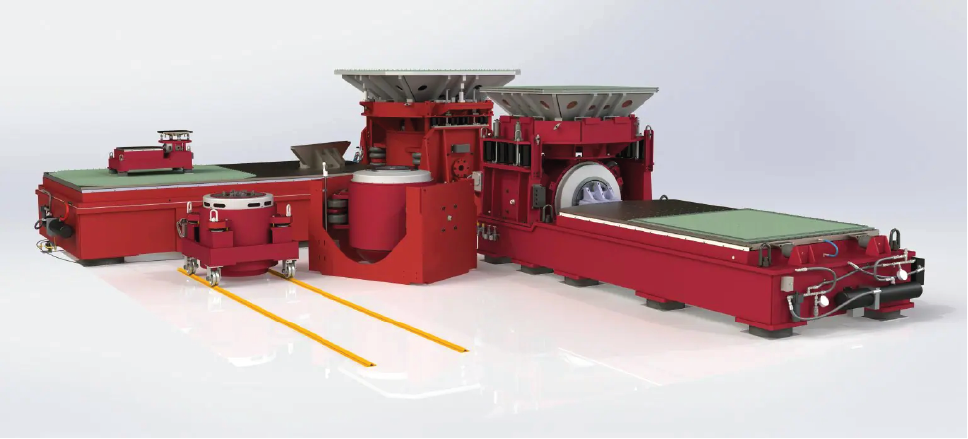

SignalForce Products Comprise Turn-Key Vibration Test Systems that Include: Electrodynamic Shakers (both Air- and Water-Cooled), Power Amplifiers, Slip Tables, Head Expanders, Fixtures, and Thermal Barriers for Environmental Testing
Data Physics sales and support are adept at understanding user applications and providing properly configured vibration test systems to meet both current and future needs.
| SHAKER TYPE | FORCE RANGE |
|---|---|
| AIR COOLED | 2 to 15,000 lbf (9 N to 66.7 kN) |
| WATER COOLED | 16,000 to 50,000 lbf (71 to 222 kN) |
| INERTIAL | 7 to 56 lbf (30 to 250 N) |
| MODAL | 18 to 475 lbf (80 N to 2.1 kN) |
| All SignalForce vibration test systems, or vibration shaker tables, including accessories such as head expanders and slip tables, are manufactured in the USA or the UK by Data Physics. Service is provided from both direct and partner service centers located around the globe, with direct service centers on both coasts of the USA, the UK, China, and India. Learn more about shaker configurations and considerations. |
|
Advantages of our USA-Made ProductsAll engineering, technical support, and manufacturing of our medium and large LE range of shakers as well as service is based in the USA.This provides unequaled design flexibility and system customization, access to engineering resources and technical support, availability of replacement parts, repair and service. Service is never outsourced and is only performed by factory trained personnel. |
 |
ISO 9001:2015 CertificationData Physics continues to be the only USA-based shaker manufacturer to be ISO 9001:2015 certified. |
How to Choose the Right Vibration Shaker for Testing
The first step in selecting the correct shaker is to define the test profiles that are to be run (sine, random, shock, replication, etc.) and to gather dimensional information on the test article and fixtures that will need to be used (LxWxH and total mass).

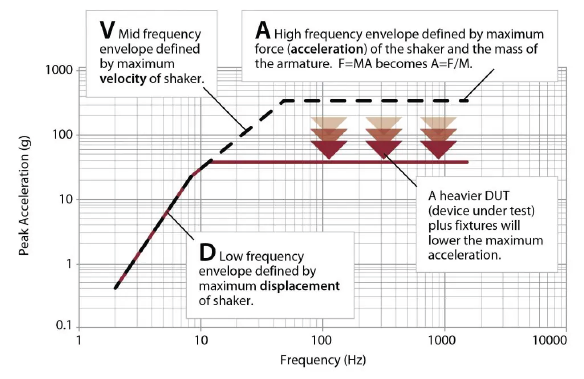

For any shaker, the added mass of the device under test (DUT) and fixtures moves the performance envelope from the black line to wherever the red line might be. Shaker sizing calculations are done to make sure all test profiles will fit within the envelope.
| This graph is a generic (frequency domain) performance envelope for any shaker, as defined by its maximum displacement, maximum velocity, and maximum force. |
