หมวดหมู่สินค้า: shakers and accessories
เครื่องทดสอบการสั่นสะเทือนแบบระบายความร้อนด้วยอากาศ (Air Cooled Shakers) มีต้นทุนต่ำกว่า มีความยืดหยุ่นในการใช้งานมากกว่า และติดตั้งรวมถึงบำรุงรักษาได้ง่ายกว่าเครื่องแบบระบายความร้อนด้วยน้ำ
ราคา 0.00 บาท
19 มีนาคม 2569
ผู้ชม 111 ผู้ชม

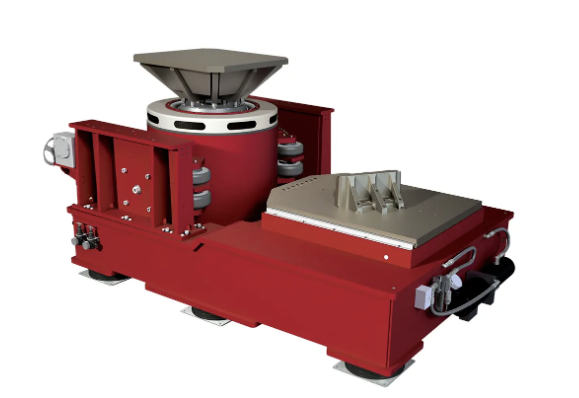

Air Cooled Shakers
Force outputs from 2 lbf (9 N) to 15,000 lbf (66.7 kN)
|
A Broad Range of Air Cooled Electrodynamic Vibration Shaker Systems for Vibration Testing
|
|---|
| Electrodynamic shaker systems are essential for vibration testing, and you can find them in many configurations to suit your needs. Air-cooled electrodynamic shakers offer greater versatility, lower costs, and simpler installation than water-cooled shakers, making them an ideal investment for your testing applications. |
| Our air-cooled shakers are suitable for random, shock, sine, transient mixed mode, and long-time history replication applications. High-displacement models are ideal for classical shock testing and transportation testing. High lateral and torsional stiffness ensure maximum stability and support. |

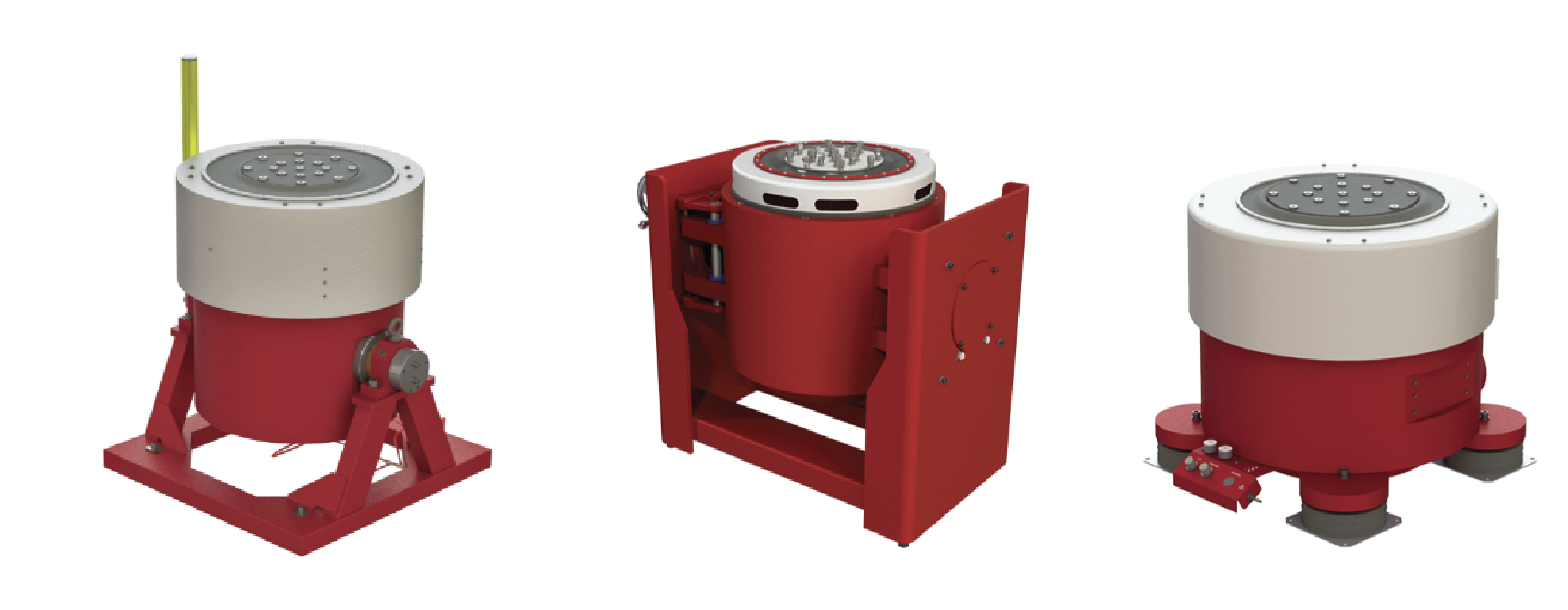

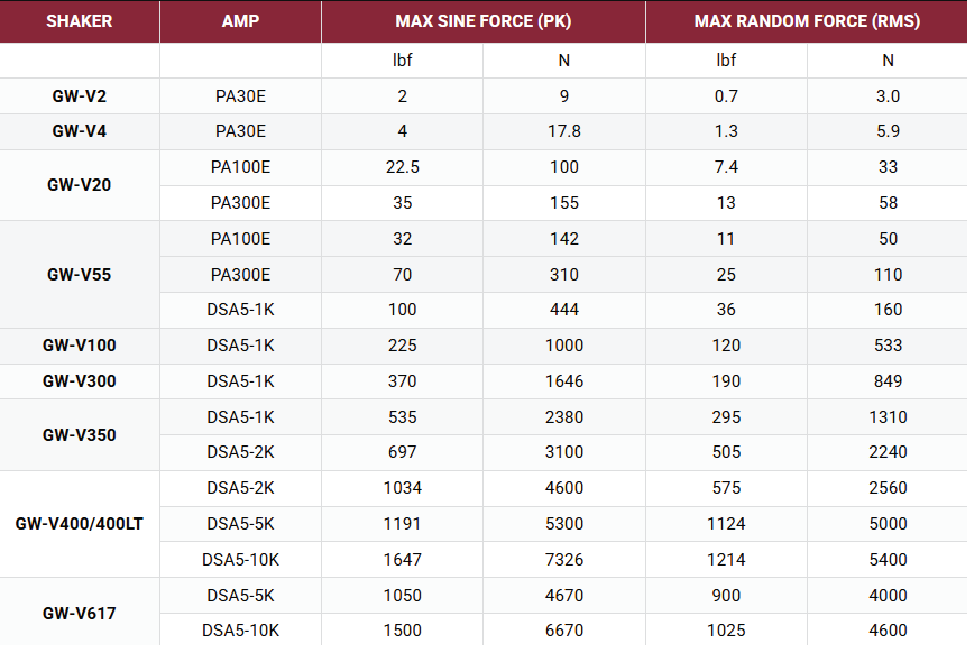

Force outputs from 2 lbf (9 N) to 1500 lbf (6670 N)
The small shaker range can deliver force outputs ranging from 2 lbf (9 N) to 1500 lbf (6670 N). This range is well-suited to several industry applications, such as medical research, electronic component testing, and automotive component testing. Our shaker’s modular designs support customization to help you create the system that best suits your needs. Explore your options.
 |

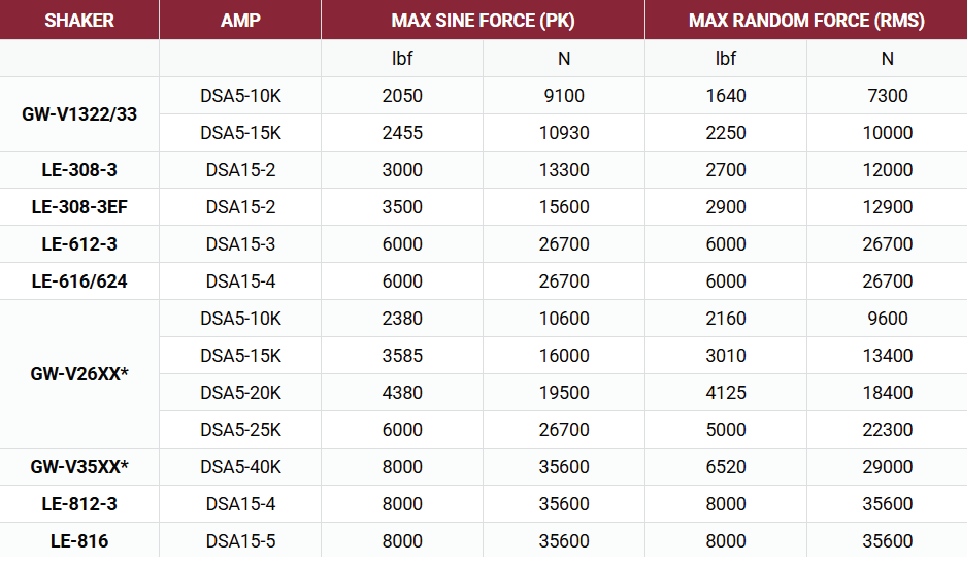

Medium Electrodynamic Shaker Range
Force outputs from 2,050 lbf (9.1 kN) to 8,000 lbf (35.6 kN)
The Data Physics medium-range shaker delivers force outputs between 2,050 lbf (9.1 kN) and 8,000 lbf (35.6 kN)are suitable for electronics testing, general purpose automotive, aerospace, MIL-STD testing, and for larger payloads and screening tests. Customize your medium shaker with a range of model options to create the preferred performance parameters for your testing needs.With more customization options than our small shaker range, our medium models deliver unique capabilities for various testing demands.
|
 |
* Armature size options: 340 / 440 / 640 mm.

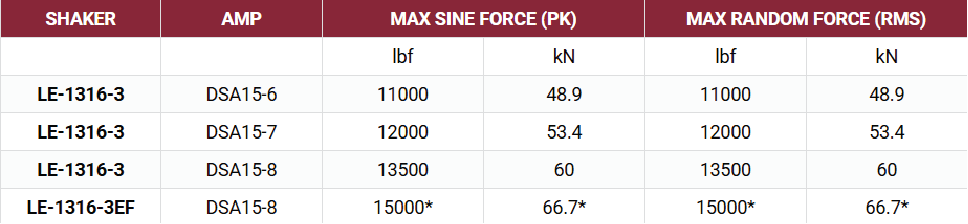

Large Electrodynamic Shaker Range
Force outputs from 11,000 lbf (4.89 kN) to 15,000 lbf (66.7 kN)
The large shaker range provides force outputs from 11,000 lbf (4.89 kN) to 15,000 lbf (66.7 kN).Data Physics’ range of large-sized shakers are suitable for electronics testing, general purpose automotive, aerospace, MIL-STD testing, and for larger payloads and screening tests.All SignalForce vibration test systems, or vibration shaker systems, including high quality accessories such as head expanders and slip tables, are manufactured in the USA or the UK by Data Physics.
|
* Max runtime of 5 minutes.
electrodynamic shakers and accessories
SignalForce Products Comprise Turn-Key Vibration Test Systems that Include: Electrodynamic Shakers (both Air- and Water-Cooled), Power Amplifiers, Slip Tables, Head Expanders, Fixtures, and Thermal Barriers for Environmental Testing
Data Physics sales and support are adept at understanding user applications and providing properly configured vibration test systems to meet both current and future needs.
| SHAKER TYPE | FORCE RANGE |
|---|---|
| AIR COOLED | 2 to 15,000 lbf (9 N to 66.7 kN) |
| WATER COOLED | 16,000 to 50,000 lbf (71 to 222 kN) |
| INERTIAL | 7 to 56 lbf (30 to 250 N) |
| MODAL | 18 to 475 lbf (80 N to 2.1 kN) |
| All SignalForce vibration test systems, or vibration shaker tables, including accessories such as head expanders and slip tables, are manufactured in the USA or the UK by Data Physics. Service is provided from both direct and partner service centers located around the globe, with direct service centers on both coasts of the USA, the UK, China, and India. Learn more about shaker configurations and considerations. |
|
Advantages of our USA-Made ProductsAll engineering, technical support, and manufacturing of our medium and large LE range of shakers as well as service is based in the USA.This provides unequaled design flexibility and system customization, access to engineering resources and technical support, availability of replacement parts, repair and service. Service is never outsourced and is only performed by factory trained personnel. |
 |
ISO 9001:2015 CertificationData Physics continues to be the only USA-based shaker manufacturer to be ISO 9001:2015 certified. |
How to Choose the Right Vibration Shaker for Testing
The first step in selecting the correct shaker is to define the test profiles that are to be run (sine, random, shock, replication, etc.) and to gather dimensional information on the test article and fixtures that will need to be used (LxWxH and total mass).
For any shaker, the added mass of the device under test (DUT) and fixtures moves the performance envelope from the black line to wherever the red line might be. Shaker sizing calculations are done to make sure all test profiles will fit within the envelope.
| This graph is a generic (frequency domain) performance envelope for any shaker, as defined by its maximum displacement, maximum velocity, and maximum force. |
