The vibration analyzer is a compact instrument with many functions for expert diagnosis of the vibration state and the causes of non-stationary equipment operation. Model ADL MS54Pro include the possibility of precise, simple and fast laser shaft alignment.

Vibration analyzer designed to measure general vibration parameters, analyze the vibration spectrum of rotating equipment, quickly evaluate according to ISO 10816, monitor the status of measurements and collect data for subsequent diagnostics and adjustment of various industrial equipment.

Features of vibration meter:
• 4 channels for measuring and evaluating the vibration spectrum
• Balancing – up to 8 correction planes
• Classic reliable piezo accelerometers
• Wide frequency range for high quality and professional diagnostics
• Easy and precise shaft alignment
• Distance between sensors on alignment equipment – up to 10m
• Shaft diameter range 20 to 250 mm diameter with supplied chains
• Ultralight wireless laser sensors with built-in Bluetooth for alignment.
• Wide range of features including horizontal and vertical machine alignment, gasket simulator and thermal expansion calculation
• Preparation of reports in PDF format and other
• Large capacity flash drive for storing measurements and reports
• USB interface for PC connection
• Energy-intensive battery
• Measurement archiving and reporting software
• Intuitive interface
• Bright and color display.

Balancing
Balancing – up to 8 correction planes (16 measurement points): allows for the elimination of excessive vibration by conducting balancing. Thanks to the capability of balancing across up to 8 correction planes using 16 measurement points, the vibration analyzer enables not only the detection of imbalances but also their effective correction in various planes.

Main field

The main field of application of the devices is the operational control of the mechanical condition during operation, diagnostics, maintenance and repair of equipment: bearings, gears, turbines, generators, fans, pumps, rotors, distribution plants, ball mills, rolling mills, gearboxes, conveyors, engines, blowers and many other equipment. Vibration analyzers of the MS series are applicable for monitoring both entire structures and individual elements.

The vibration analyzers of the MS series are used in metallurgy, mechanical engineering, petrochemical, light and defense industries, thermal and nuclear power engineering, maintenance of agricultural equipment, housing and communal services and transport.

The presence of a service center based on the Adelix company in Turkey, Ankara, provides the possibility of warranty and post-warranty service throughout the entire period of operation.

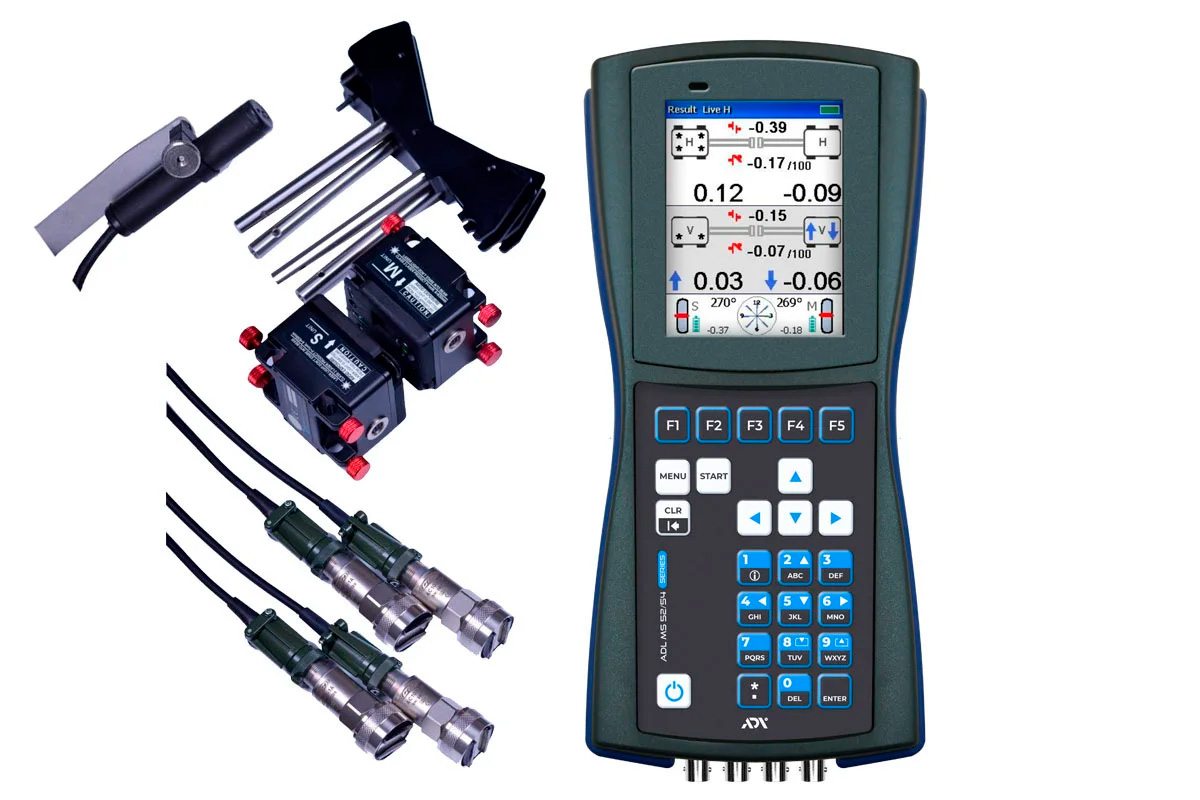

Delivery set includes:
• Display unit:1 pcs;
• Accelerometer (vibration probe): 4 pcs;
• Cable 1.5m to a vibration probe: 4 pcs;
• Magnet for mounting the vibration probe: 4pcs;
• Optical probe with magnetic stand: 1pcs;
• Wireless sensors for laser alignment: 2 pcs;
• Universal V-brackets with chains for attaching laser alignment sensors: 2 pcs;
• Racks 100mm : 2 pcs;
• Racks 150mm : 2 pcs;
• AC USB charger: 1 pcs;
• USB cable: 1 pcs;
• Software on a flash drive (or installed in the built-in memory of the device): 1 pcs;
• Roulette 3m: 1 pcs;
• Carrying and storage bag: 1 pcs;
• Protective case: 1 pcs;
• Manual.
