หมวดหมู่สินค้า: Syringe Pump Systems
*ราคาอาจมีการเปลี่ยนแปลงตามอัตราแลกเปลี่ยน โปรดสอบถาม Line : @siamintercorp
11 กันยายน 2568
ผู้ชม 12 ผู้ชม
| IPS-14 SERIES SINGLE CHANNEL SYRINGE PUMPS | ||
| IPS-14 | ||
   |

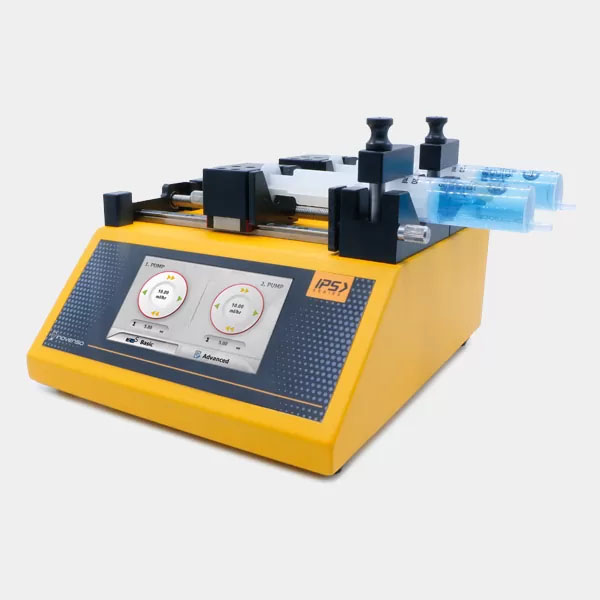

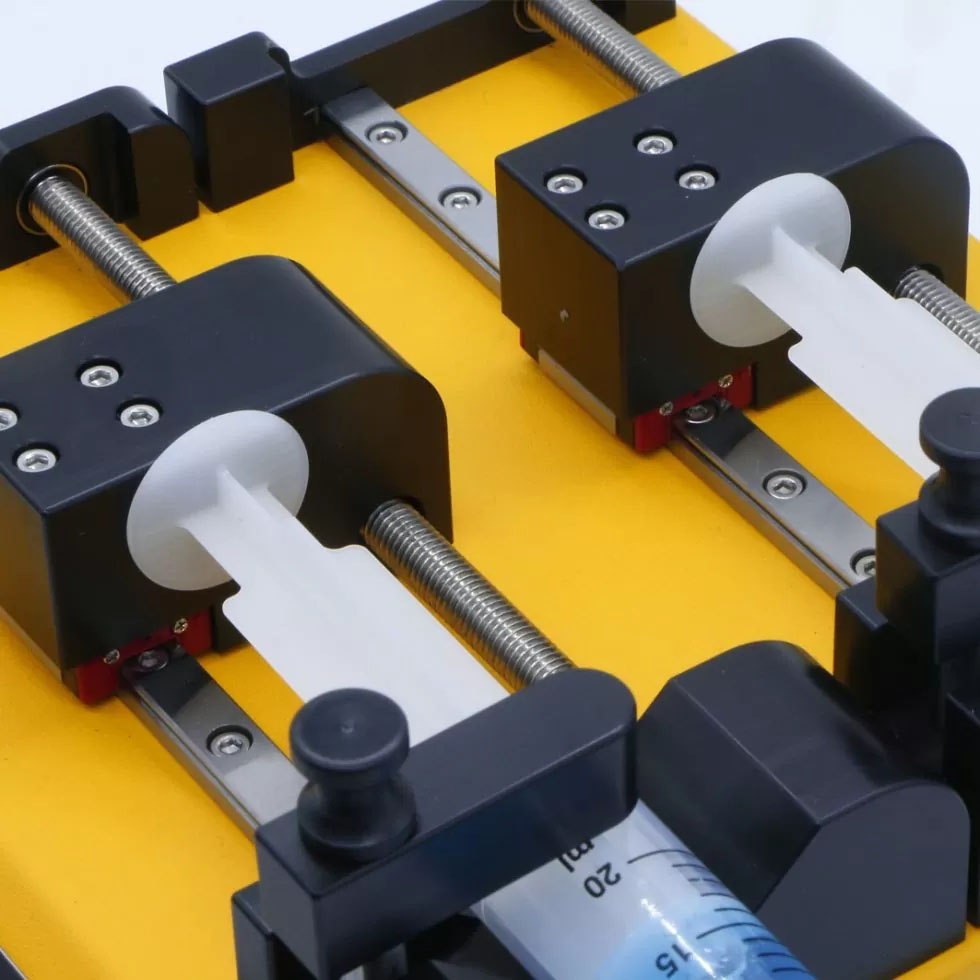

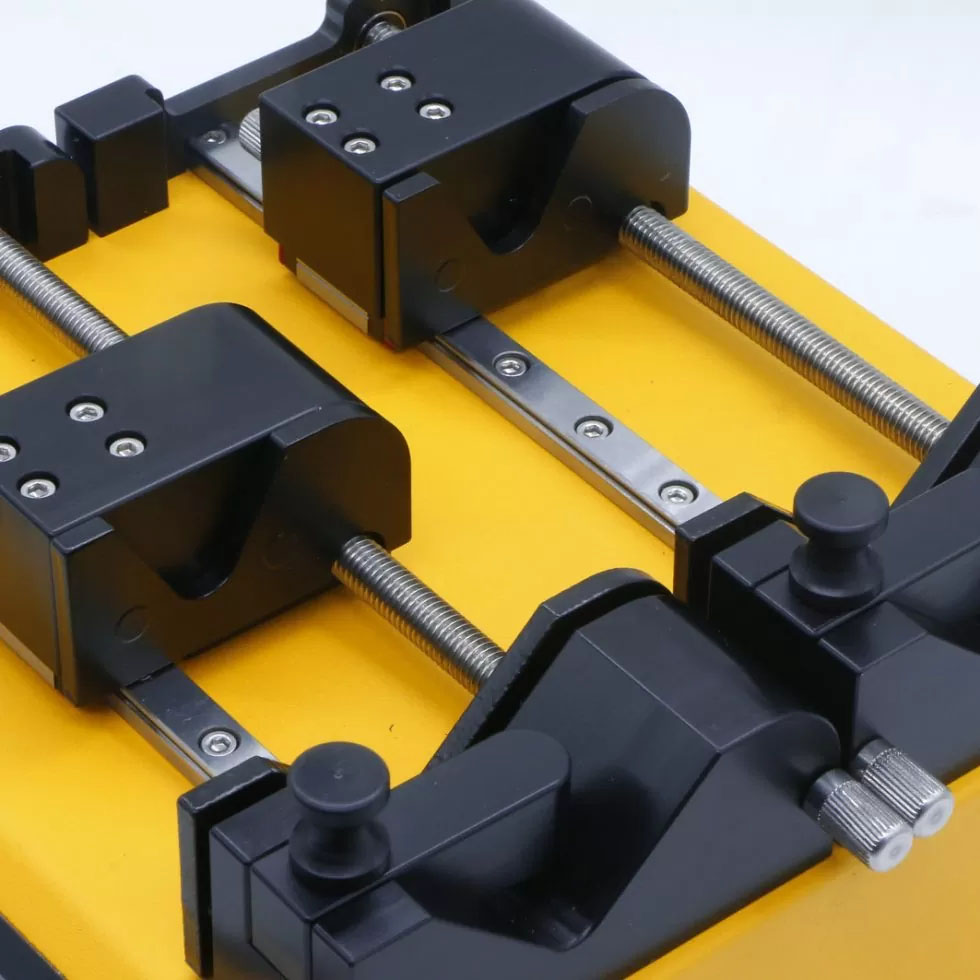

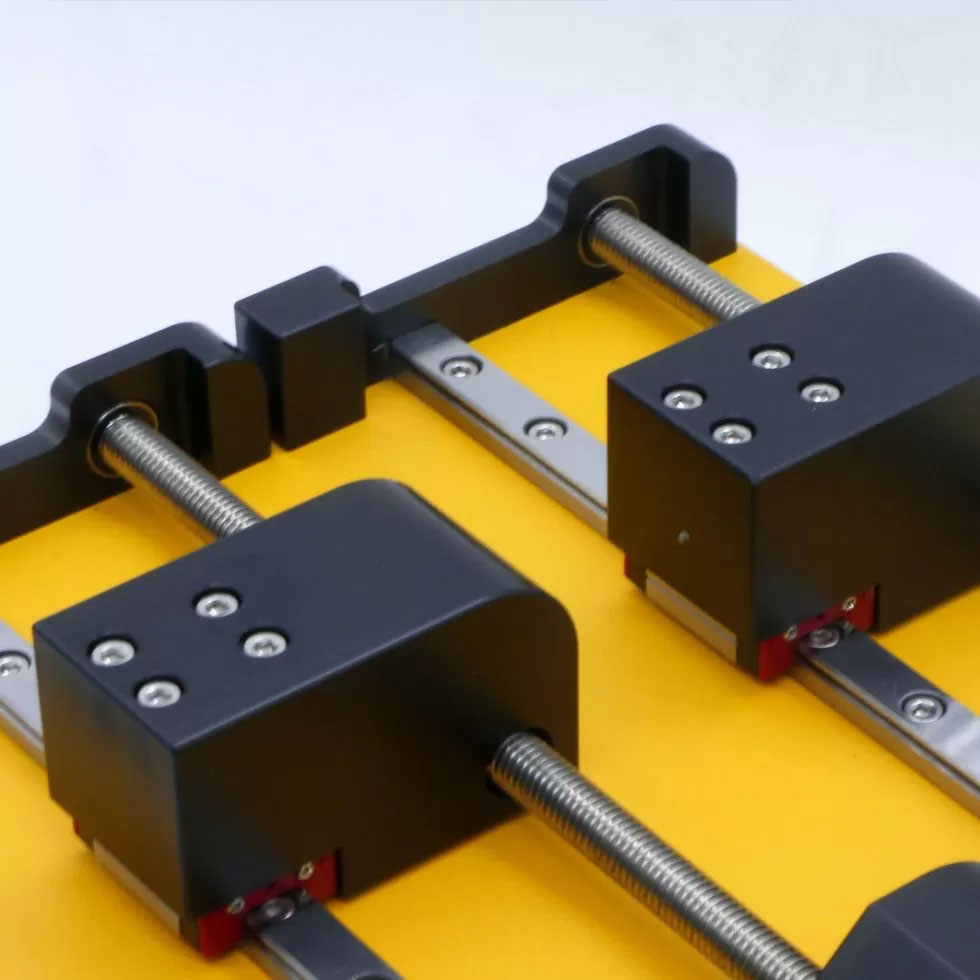

IPS-14 Syringe Pump The IPS-14 Syringe Pump is a sophisticated dual-channel device designed to meet the complex fluid handling requirements in various industries. With its precision engineering and innovative features, the IPS-14 ensures reliable performance and precise control over fluid delivery processes. |
|

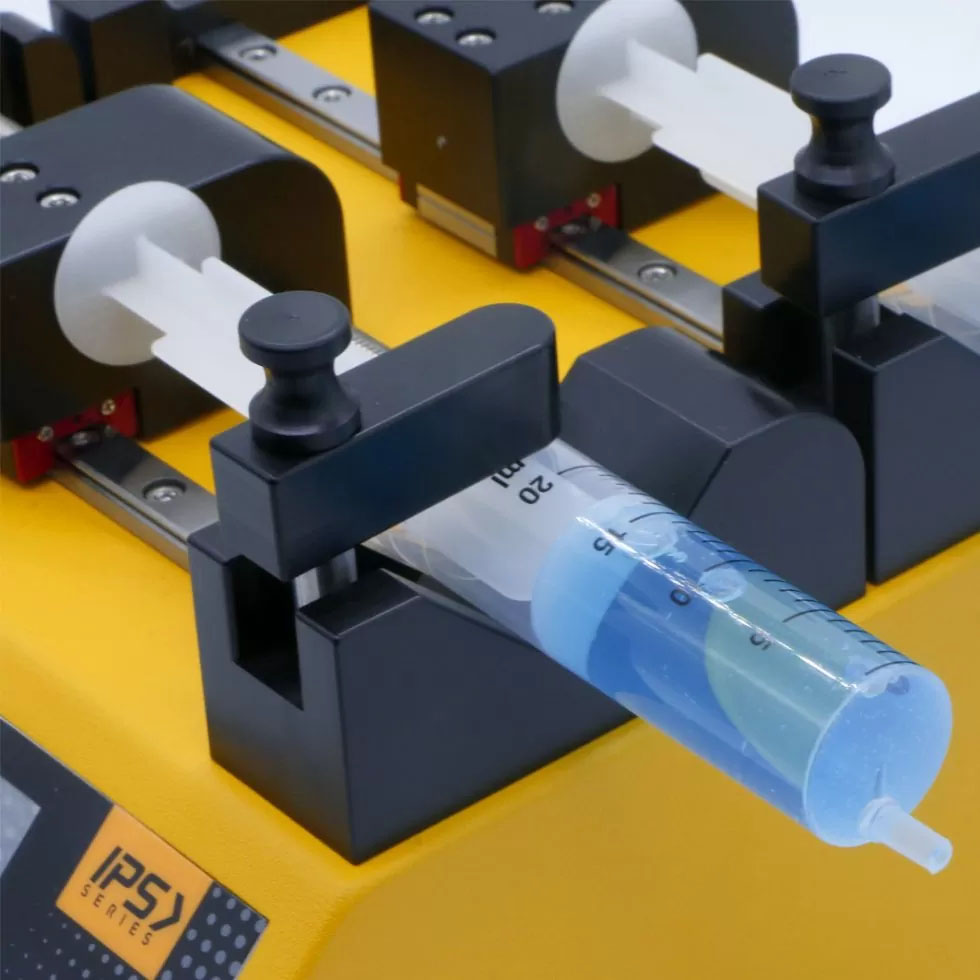

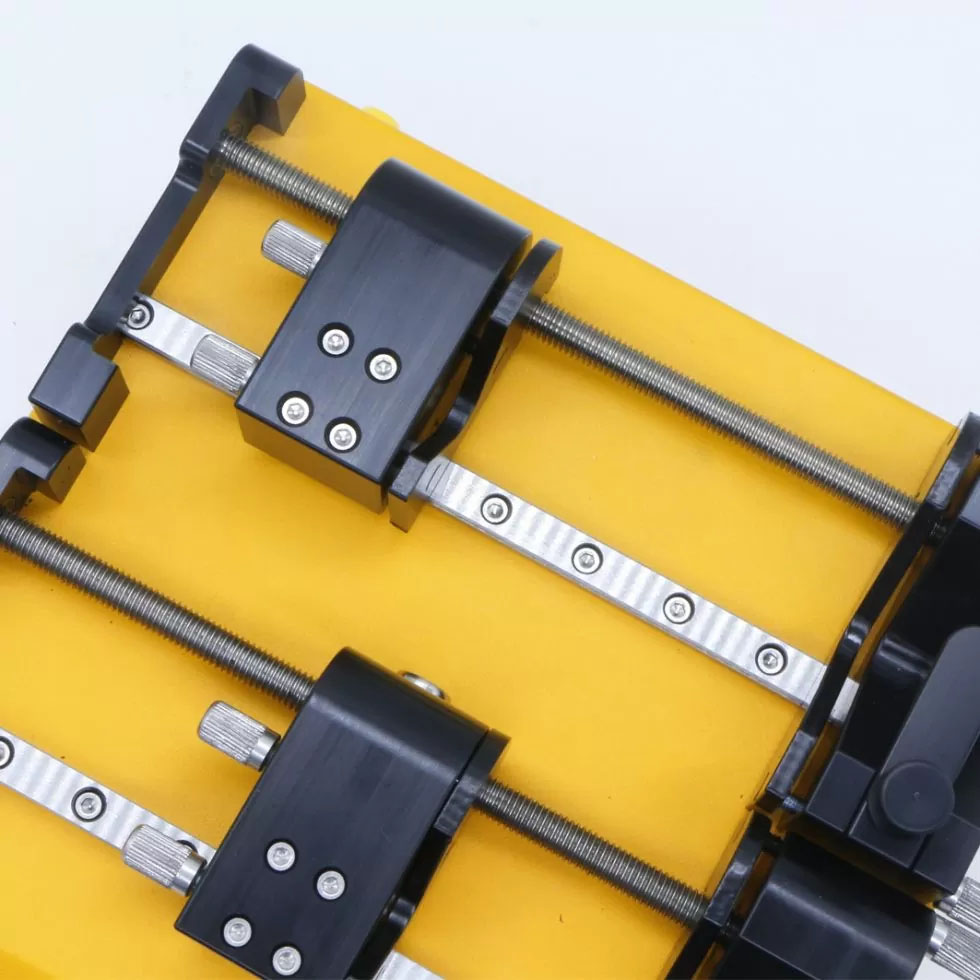

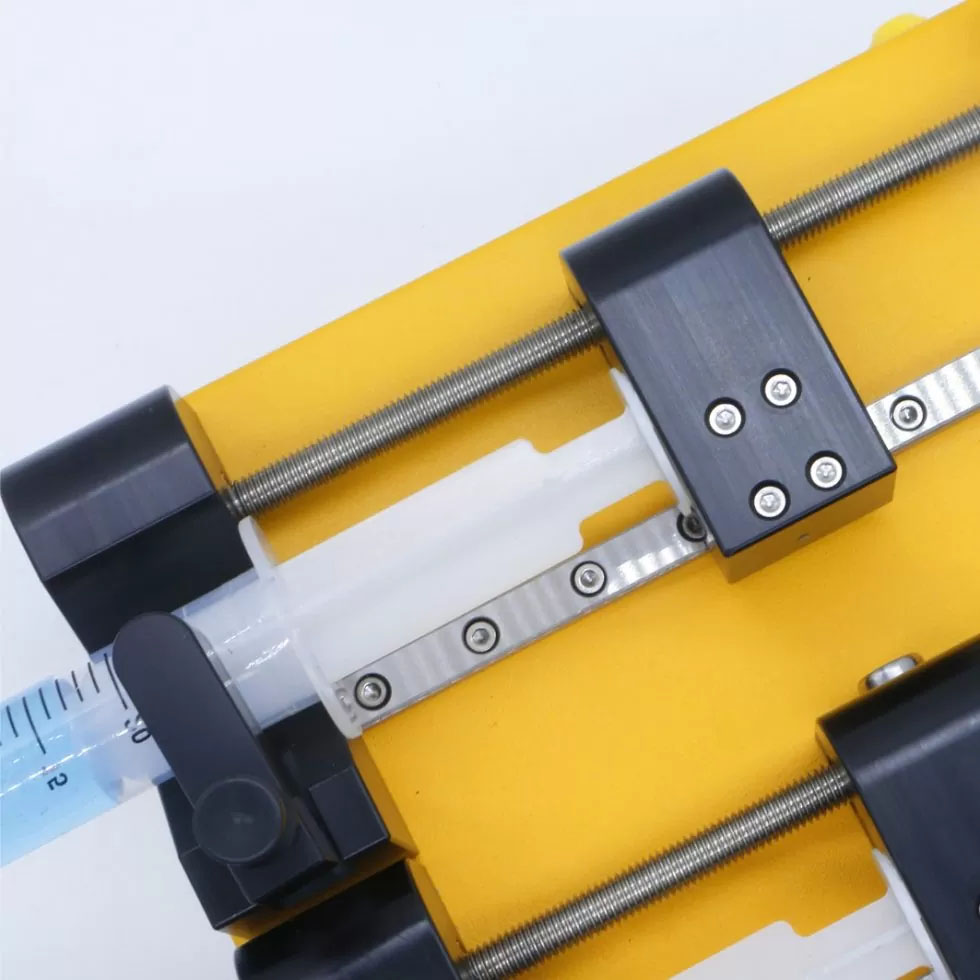

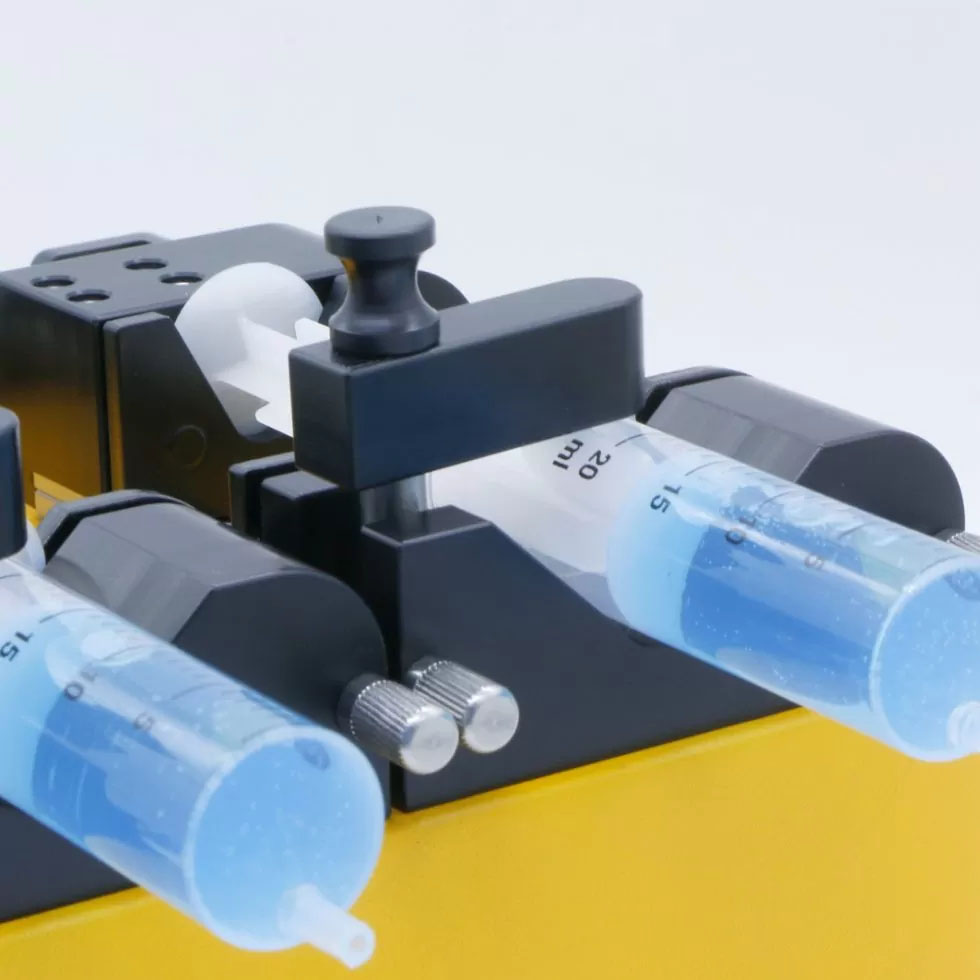

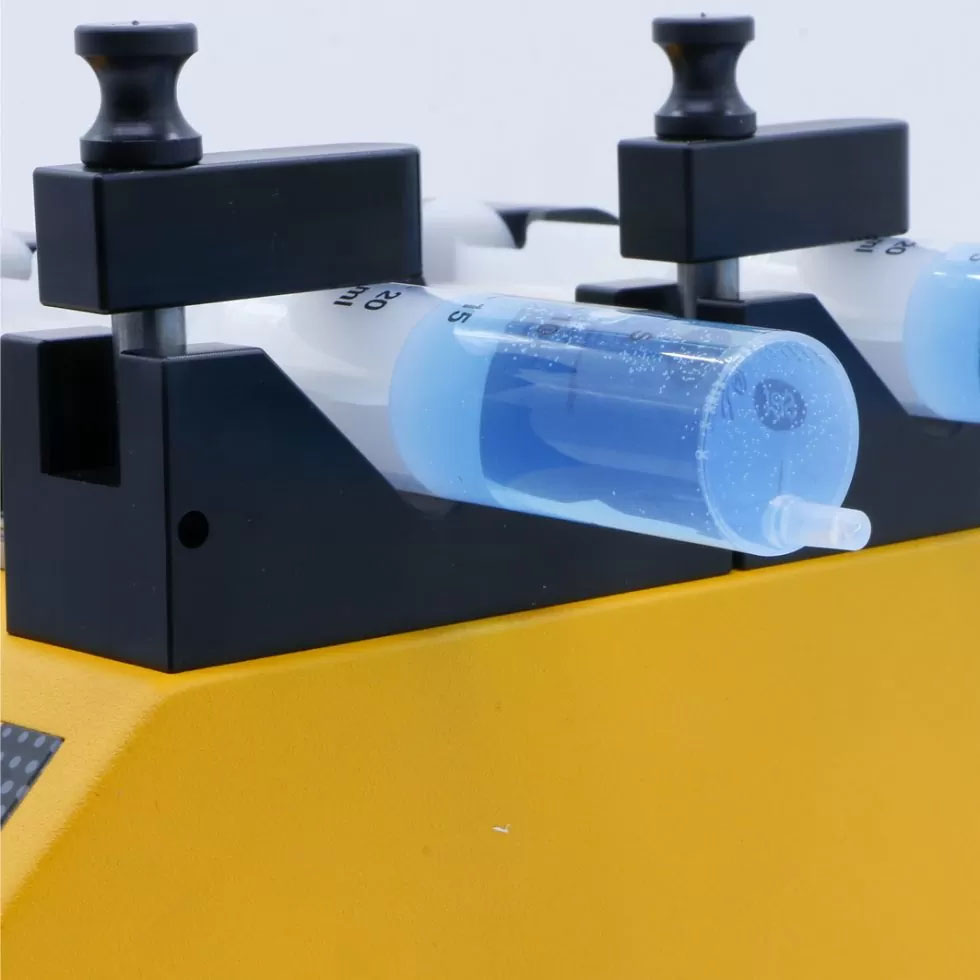

| Key Features: • Independent Syringe Channels: Equipped with two independent syringe channels, the IPS-14 allows for simultaneous operation of different fluids or independent control over each channel. This feature enhances flexibility and efficiency in multi-channel applications. • Wide Syringe Compatibility: The IPS-14 supports a wide range of syringe types including glass, plastic, and steel. It accommodates syringes from Hamilton 0.5 μl (ID: 0.103mm) to Monoject 140 ml (ID: 38mm), providing versatility to meet various volume requirements. • Precise Flow Control: With a comprehensive flow rate range from 17.89 picoliters per minute to 121.51 milliliters per minute, the IPS-14 ensures precise and consistent fluid delivery. Its stepper motor, combined with a microcontroller featuring Microstep Drive technology, allows for accurate flow rate control with a resolution of 357 nm/μstep. • Intuitive Interface: The IPS-14 is equipped with a 4.3-inch Resistive Touch TFT LCD screen and intuitive microcontroller software, offering users a user-friendly interface for easy programming and monitoring. Users can adjust flow rates and other parameters effortlessly, enhancing operational efficiency. • Adaptive Pumping: Users can adjust flow rates even during the pumping process, enabling fine-tuning of parameters for optimal performance. This adaptive capability ensures precise handling of fluid handling tasks with flexibility and control. Technical Specifications: • Motor Type: Stepper Motor • Linear Force Connectors: No • Recipe Save-Recall: No • Power Supply: 12 VDC 1A (110-240 VAC adapter included) • Dimensions: Width (W): 200 mm, Length (L): 257 mm, Height (H): 137 mm • Weight: 3.3 kg Environmental Specifications: • Operating Temperature: Between -10°C and 50°C • Storage Temperature: Between -30°C and 85°C • Operating Humidity: RH 10% – RH 90% (not condensed) • Storage Humidity: RH 10% – RH 90% (not condensed) |
||
|
||
| IPS-14R | ||

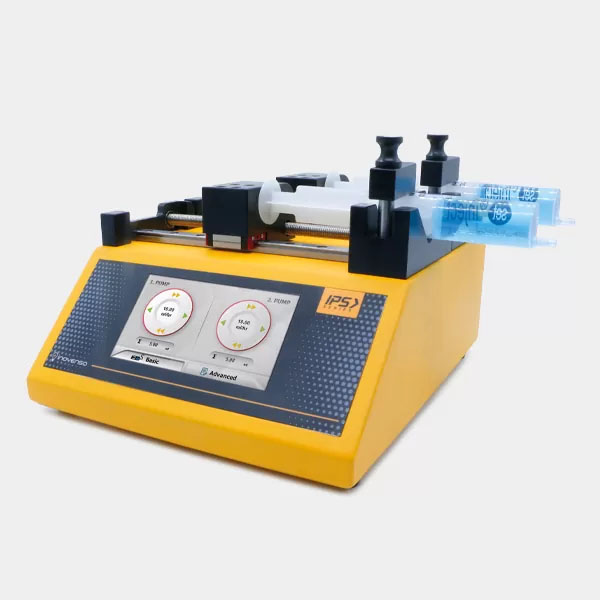

| IPS-14R Syringe Pump The IPS-14R Syringe Pump is a cutting-edge dual-channel device designed to provide precise and reliable fluid handling in various applications. With its innovative features and robust construction, the IPS-14R offers versatility and accuracy for demanding fluid delivery processes. Key Features: • Independent Syringe Channels: Featuring two independent syringe channels, the IPS-14R allows simultaneous operation of different fluids or separate control over each channel. This feature enhances flexibility and efficiency in multi-channel applications. • Wide Syringe Compatibility: The IPS-14R accommodates a wide range of syringe types, including glass, plastic, and steel. It supports syringes ranging from Hamilton 0.5 μl (ID: 0.103mm) to Monoject 140 ml (ID: 38mm), providing versatility to meet various volume requirements. • Precise Flow Control: With a broad flow rate range from 17.89 picoliters per minute to 121.51 milliliters per minute, the IPS-14R ensures accurate and consistent fluid delivery. Its stepper motor, combined with a microcontroller featuring Microstep Drive technology, enables precise control over flow rates with a resolution of 357 nm/μstep. • Intuitive Interface: Equipped with a 4.3-inch Resistive Touch TFT LCD screen and user-friendly microcontroller software, the IPS-14R offers an intuitive interface for easy programming and monitoring. Users can adjust flow rates and other parameters effortlessly, enhancing operational efficiency. • Adaptive Pumping: Users can adjust flow rates even during the pumping process, allowing for fine-tuning of parameters for optimal performance. This adaptive capability ensures precise handling of fluid delivery tasks with flexibility and control. Technical Specifications: • Motor Type: Stepper Motor • Linear Force Connectors: No • Recipe Save-Recall: No • Power Supply: 12 VDC 1A (110-240 VAC adapter included) • Dimensions: Width (W): 211 mm, Length (L): 257 mm, Height (H): 137 mm • Weight: 3.6 kg Environmental Specifications: • Operating Temperature: Between -10°C and 50°C • Storage Temperature: Between -30°C and 85°C • Operating Humidity: RH 10% – RH 90% (not condensed) • Storage Humidity: RH 10% – RH 90% (not condensed) |
   |
|
|
||
| IPS-14S | ||
   |

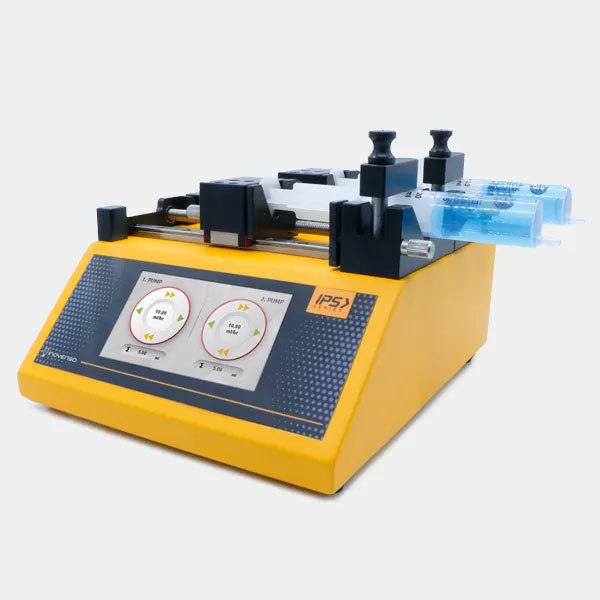

IPS-14S Syringe Pump The IPS-14S Syringe Pump is an advanced dual-channel fluid handling device designed to meet the demanding requirements of various industries. With its versatile features and precise control, the IPS-14S offers reliable performance for a wide range of fluid delivery applications. Key Features: • Independent Syringe Channels: The IPS-14S features two independent syringe channels, allowing simultaneous operation of different fluids or separate control over each channel. This versatility enables efficient handling of complex fluid delivery tasks. • Wide Syringe Compatibility: Compatible with glass, plastic, and steel syringes, the IPS-14S supports syringes ranging from Hamilton 0.5 μl (ID: 0.103mm) to Monoject 140 ml (ID: 38mm). This broad compatibility provides flexibility to users for various volume requirements. • Precise Flow Control: With a flow rate range from 17.89 picoliters per minute to 121.51 milliliters per minute, the IPS-14S ensures accurate and consistent fluid delivery. Its stepper motor and microcontroller with Microstep Drive technology offer precise control over flow rates with a resolution of 357 nm/μstep. • Intuitive Interface: Equipped with a 4.3-inch Resistive Touch TFT LCD screen and user-friendly microcontroller software, the IPS-14S provides an intuitive interface for easy programming and monitoring. Users can adjust flow rates and other parameters effortlessly, enhancing operational efficiency. • Adaptive Pumping: The IPS-14S allows for adjustable flow rates even during the pumping process, enabling users to fine-tune parameters for optimal performance. This adaptability ensures precise handling of fluid delivery tasks with flexibility and control. Technical Specifications: • Motor Type: Stepper Motor • Linear Force Connectors: No • Recipe Save-Recall: Yes (Wi-Fi optional) • Power Supply: 12 VDC 1A (110-240 VAC adapter included) • Dimensions: Width (W): 200 mm, Length (L): 257 mm, Height (H): 137 mm • Weight: 3.3 kg Environmental Specifications: • Operating Temperature: Between -10°C and 50°C • Storage Temperature: Between -30°C and 85°C • Operating Humidity: RH 10% – RH 90% (not condensed) • Storage Humidity: RH 10% – RH 90% (not condensed) Additional Features: • 5 Steps Operation Mode: Enables users to program up to 5 different steps for precise fluid handling. • Saving and Recalling Recipes: Allows users to save and recall up to 5 recipes for convenient operation. • Repeating Cycles: Capable of repeating recipes up to 50 cycles, enhancing efficiency in repetitive tasks. |
|
|
||
| IPS-14RS | ||
| IPS-14RS Syringe Pump The IPS-14RS Syringe Pump is a sophisticated dual-channel fluid handling system designed to meet the exacting demands of modern laboratories and industrial settings. Offering precise control and advanced features, the IPS-14RS enables efficient and accurate fluid delivery for a variety of applications. Key Features: • Independent Syringe Channels: Featuring two independent syringe channels, the IPS-14RS allows for simultaneous operation of different fluids or independent control over each channel. This capability enhances flexibility and efficiency in fluid handling tasks. • Wide Syringe Compatibility: Compatible with glass, plastic, and steel syringes, the IPS-14RS accommodates syringes ranging from Hamilton 0.5 μl (ID: 0.103mm) to Monoject 140 ml (ID: 38mm). This versatility enables users to handle various volumes with ease. • Precise Flow Control: The IPS-14RS offers precise control over flow rates, with a range from 17.89 picoliters per minute to 121.51 milliliters per minute. Equipped with a stepper motor and microcontroller featuring Microstep Drive technology, it ensures accurate and consistent fluid delivery. • Intuitive Interface: With a 4.3-inch Resistive Touch TFT LCD screen and user-friendly microcontroller software, the IPS-14RS provides an intuitive interface for easy programming and monitoring. Users can adjust flow rates and other parameters effortlessly, enhancing productivity. • Adaptive Pumping: Users can adjust flow rates even during the pumping process, allowing for fine-tuning of parameters for optimal performance. This adaptability ensures precise fluid handling for a wide range of applications. Technical Specifications: • Motor Type: Stepper Motor • Linear Force Connectors: No • Recipe Save-Recall: Yes (Wi-Fi optional) • Power Supply: 12 VDC 1A (110-240 VAC adapter included) • Dimensions: Width (W): 211 mm, Length (L): 257 mm, Height (H): 137 mm • Weight: 3.6 kg Environmental Specifications: • Operating Temperature: Between -10°C and 50°C • Storage Temperature: Between -30°C and 85°C • Operating Humidity: RH 10% – RH 90% (not condensed) • Storage Humidity: RH 10% – RH 90% (not condensed) Additional Features: • 5 Steps Operation Mode: Allows programming of up to 5 different steps for precise fluid handling. • Saving and Recalling Recipes: Users can save and recall up to 5 recipes for convenient operation. • Repeating Cycles: Capable of repeating recipes up to 50 cycles, enhancing efficiency in repetitive tasks. |
   |
|
|
||
Technical Datasheet
BUY NOW
