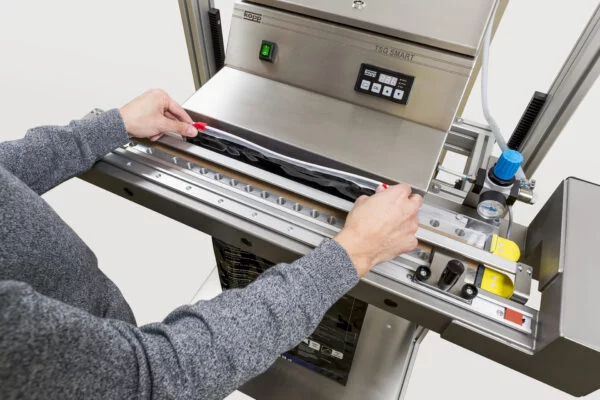

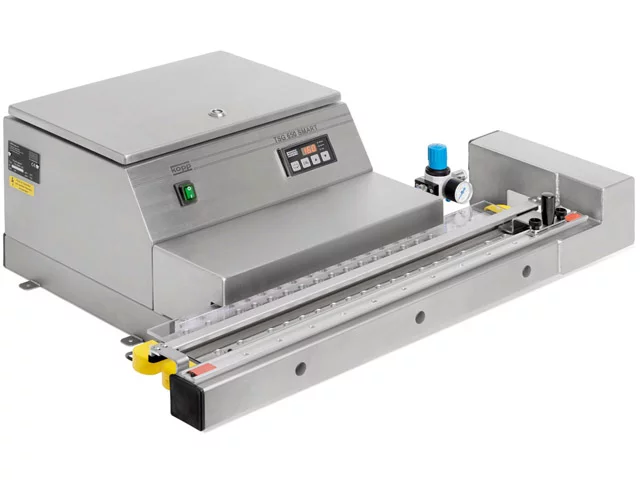

Universally suitable for sealing bags and sacks made of thermoplastic materials such as polyethylene, polypropylene.

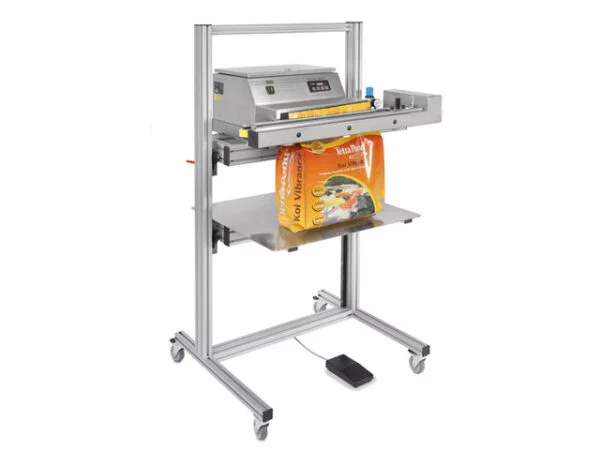

- Stand-alone device or can be integrated into a packaging line
- Double-sided impulse heating
- Digital temperature control
- Low wear and tear, hardly any follow-up costs
- The bag can be introduced from the left side
- The temperature control prevents overheating of the sealing bands and thus enables a constant sealing quality
| Sealing | 650 x 5mm |
| Sealing time | up to 9.9sec. adjustable |
| Sealing temperature | up to 240°C adjustable |
| Cooling temperature | adjustable |
| Sealing system | double-sided impulse heating |
| Max. bag width | 650mm |
All data are approximate only.
The TSG impulse sealing unit can be perfectly integrated into a filling process or a packaging line.

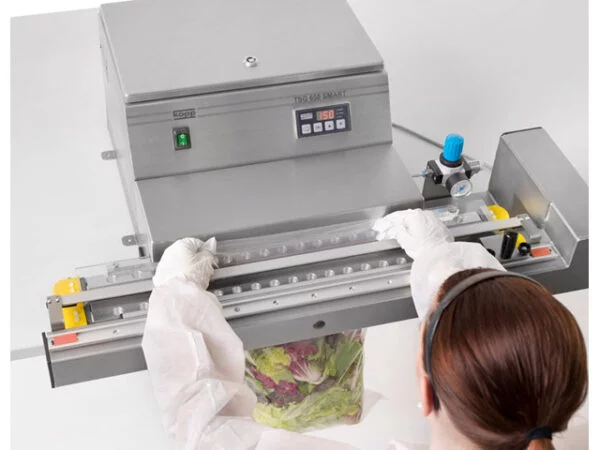

The sealing device is used to pack food such as spices, herbs, dried fruits, flavors, powdered drinks, natural casings, gelatine powder, gelatine capsules, salads, vegetables, bread, rolls, pastries, ingredients, milk powder, food supplements …
but also for packaging medical products such as breathing tube systems and other tube system variants, operating sets, analysis systems or hygiene products and health products
as well as for other products: plastic granulate, fertilizer, plant protection, additional packaging for bottles and canisters, …
