เครื่องวัดคุณสมบัติการไหลของยางและพลาสติก (RHEOCHECK OD - Drive) ยี่ห้อ Gibitre (SIT537)

เครื่องวัดคุณสมบัติการไหลของยางและพลาสติก (RHEOCHECK OD - Drive) ยี่ห้อ Gibitre (SIT537)
*ราคาอาจมีการเปลี่ยนแปลงตามอัตราแลกเปลี่ยน โปรดสอบถาม Line : @siamintercorp

แท็ก:

05 กรกฎาคม 2567

ผู้ชม 329 ผู้ชม

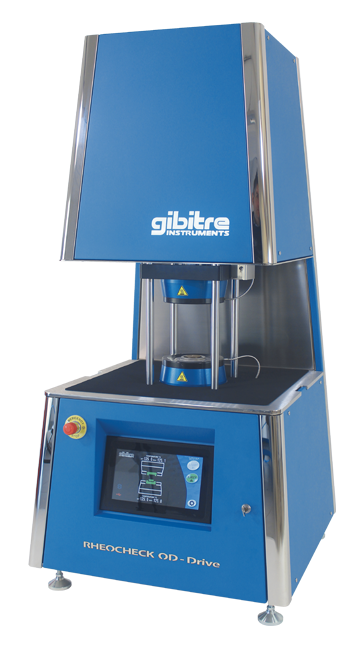

RHEOCHECK OD - Drive
Oscillating Disk Rheometer controlled by Personal Computer.

Standards
Rubber & Elastomers
Standards the instrument complies with:
ASTM D2084 , ISO 6502-1 , ISO 6502-2
Note: compliance with some standards may require optional accesories or setups.

References
Gibitre RheoCheck is currently installed in 39 countries


Why Choose Rheocheck MD - Drive?
Overview Why choose Rheocheck OD - Drive? The new 'Drive' generation
The Rheocheck OD - Drive measures the cure characteristics of a rubber compound in conformity with the international standards ISO 6502-2 and ASTM D2084
The measure of the vulcanization is carried out by measuring the modification in the mechanical characteristics of the sample. The instrument permits to apply a cyclic strain to a test piece and to measure the associated force. The test is performed at a defined temperature and the measure of stiffness recorded continuously as a function of time.

• Totally developed and produced in Italy
• Top brand Components
• Test Chamber and Rotor in conformity with international standards
• Independent temperature controllers with 0.1°C resolution
• Touch-screen display for instrument control
• Full license of Rheocheck_10 software optimized for Bar-code sample identification
• Full license of Datagest software for complete management of Gibitre SQL Database

Produced with care in Italy to last over time
The new generation of 'Drive' instruments is the result of 40 years of experience in the measurement of rheology of rubber and incorporates the most modern technologies regarding mechanical construction, measurement sensors and control software.

Software

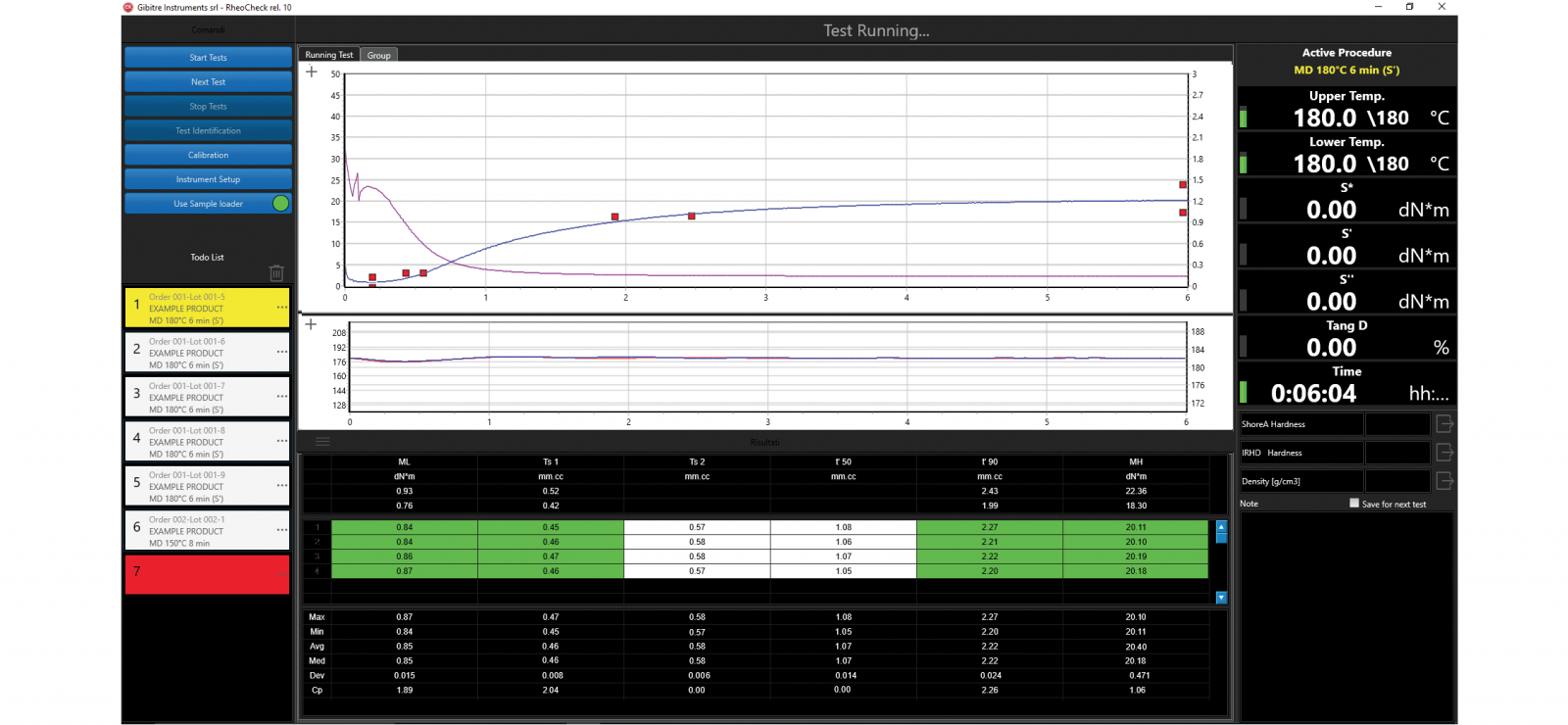

RheoCheck_10 Software Calculated Results Pressure control
The RheoCheck_10 program connects to the Gibitre SQL database and allows you to collect all the results within the Datagest data management program.
The program allows you to:
• Quickly identify the sequence of tests to be performed
• Automatically adjust the instrument according to the required test conditions

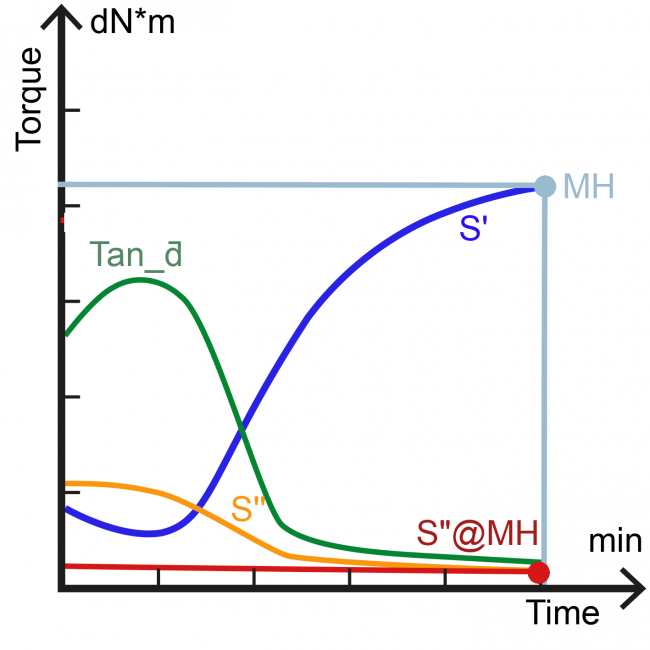

• Analyze the Test curves (S', S", S* Tang_Delta, Der(S'), Temperatures of the dies)
• Compare the results with the tolerance limits
• Elaborate statistical analysis (Carta-X, Gaussiana, Media, Dev St., Max, Min, Cp, Cpk)
• Produce customized reports

The software allows you to prepare customized test procedures that include all the calculations required by the standards and product specifications. The dedicated page describes all the available calculations.

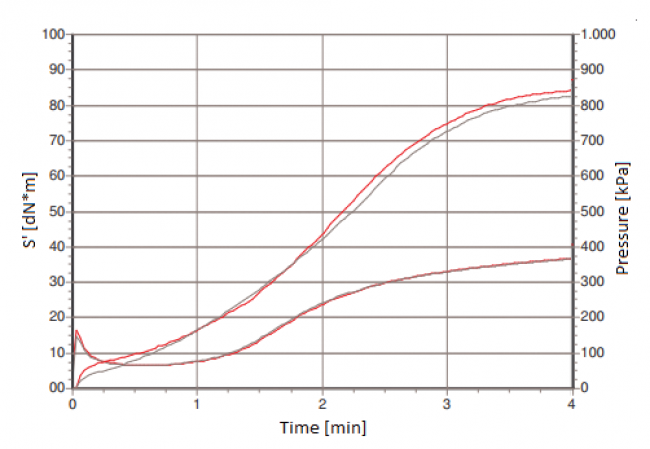

The instrument can be optionally equipped with a pressure sensor for the testing of the expansion evolution of the sample during the curing.
This option is useful for the analysis of cellular rubber formulations.

Measure the expansion of
cellular rubber formulations



Designed for the user
Instrument Control Panel Light panel Temperature regulation

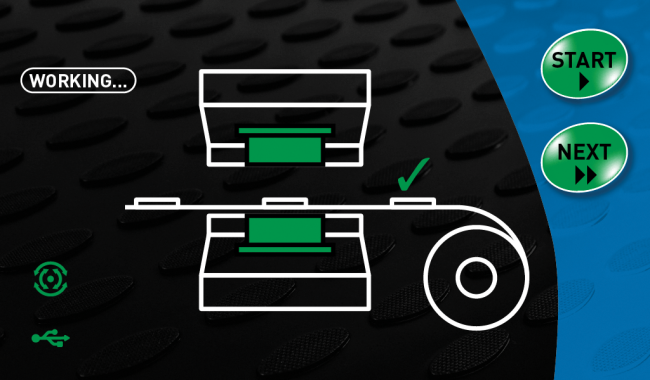

The instrument is equipped with a large touch-screen display with dimensions 10.2“. The buttons on the display permit to start and stop the tests. The display provides complete information about the status of the instrument: connection to the software, temperature of the dies, diagnostic of the sensors installed.

Touch-screen display: everything at your fingertips

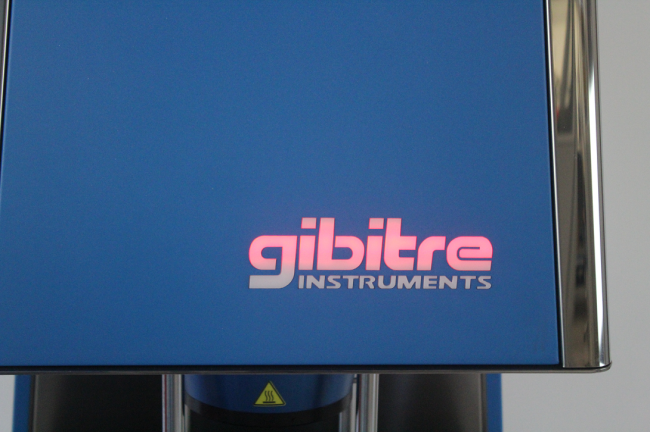

A light panel, installed in the front part of the instrument, changes the color and permits to check the status of the instrument from a distance. The indicator light identifies the following statuses: Instrument ready, instrument under test, instrument setting test temperature.

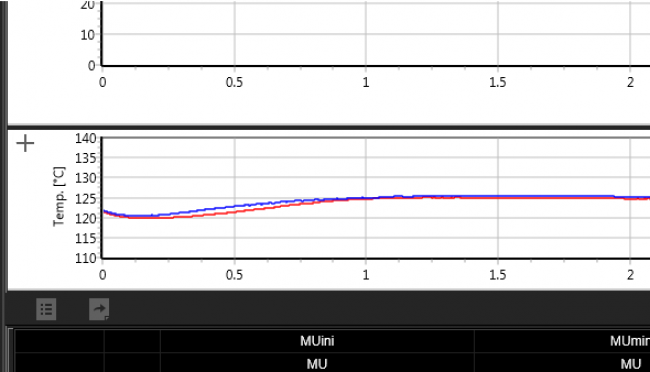

The regulation of the temperature is performed using thermo-regulators with PID micro-processor and with 0.1°C resolution.
Independent temperature control units ensure sophisticate temperature control and easy replacement in case of failure.
Electrical heating resistances have been specifically designed for this instrument to ensure quick and efficient heating.

Data Management

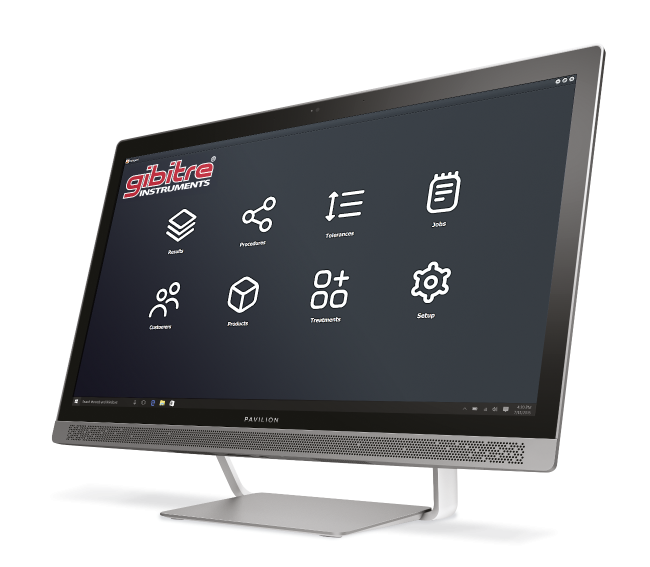

Datagest program: total Traceability Gibitre Standard SQL Database Industry 4.0 integration

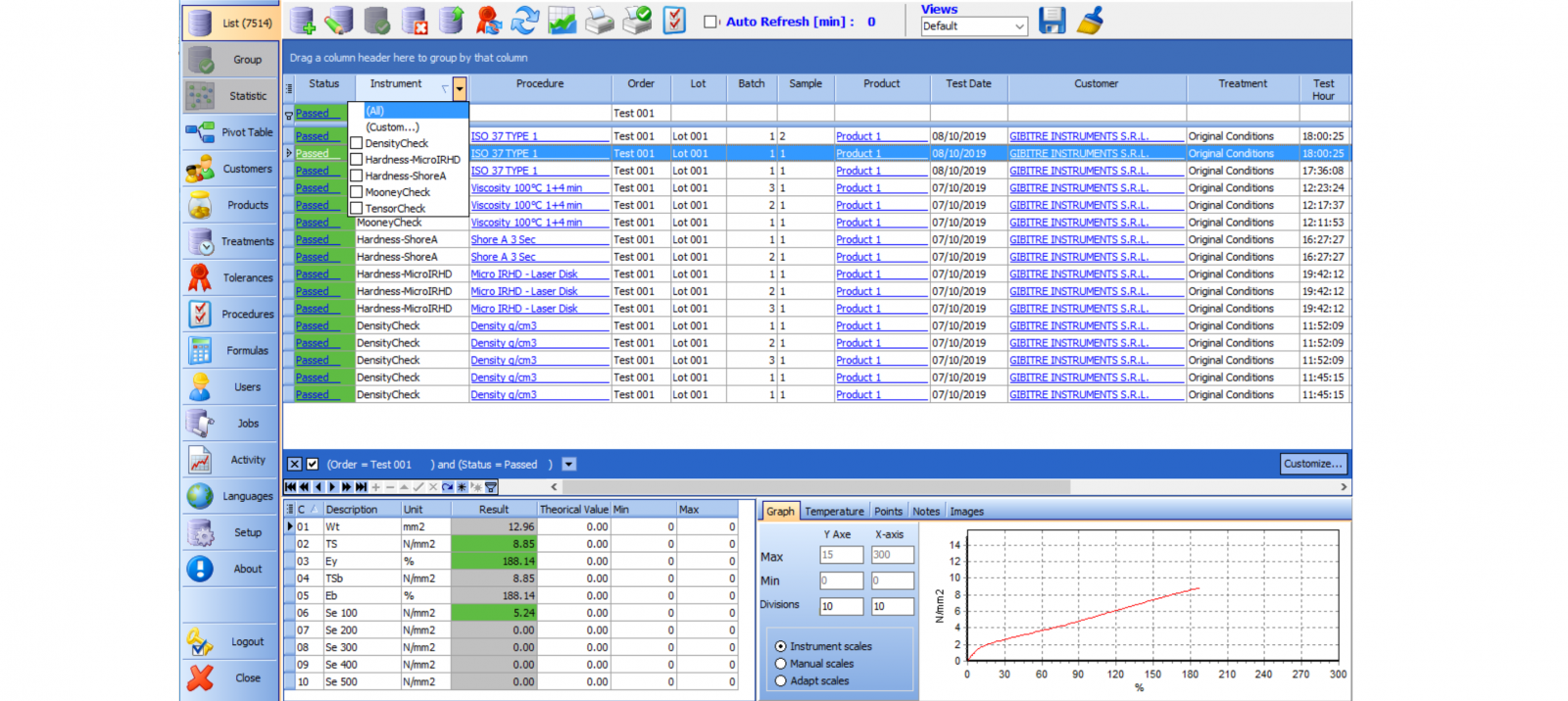

The Datagest program is the Database Management Tool always installed in combination with all Gibitre instrument-control programs.
The program permits to:
• Select, filter, print, export and analyse the test results stored with all the instruments connected.
• Prepare test procedures by defining the test conditions and the results to be produced
• Set tolerance limits for each product by manual insertion or using the statistical analysis (mean and standard deviation) of saved results
• Prepare multi-instrument test reports

One single management of all results
All the Gibitre programs use a database with SQL structure for saving the results.
The database can be installed inside an SQL instance present on the company server or it can be installed on a PC connected to a measuring instrument. The installation of the Microsoft SQL service (Express version) is included in the delivery.

SQL: total security for your data

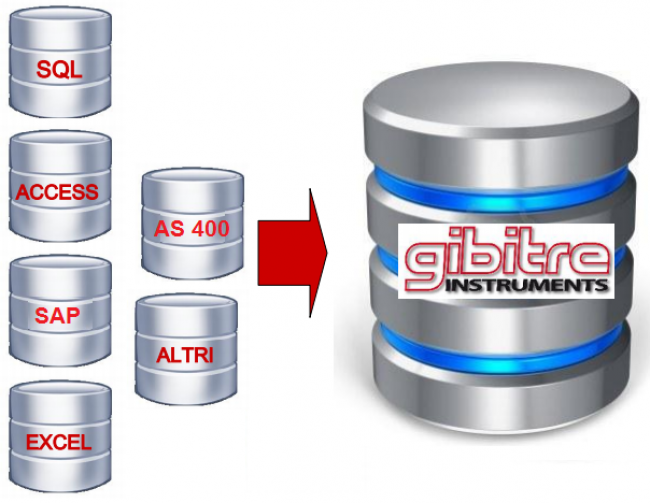

The instrument and the software have been specifically developed to optimize integration with other environments.
The database in SQL format and the Gibitre_Company_Connect program allows you synchronize your company management software with Gibitre database and to speed up the identification of the tests and to use bar-code readers or similar devices.

Integration between Management software and Laboratory

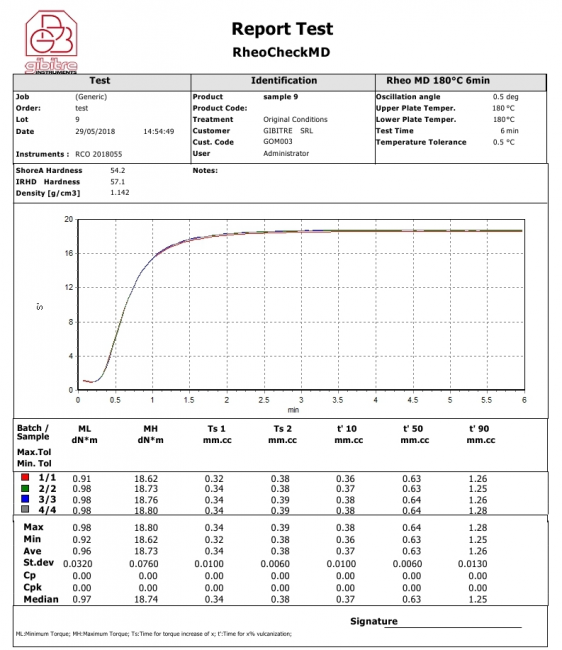

Preparation of Test Reports
Calibration of the Instrument
 Safety devices

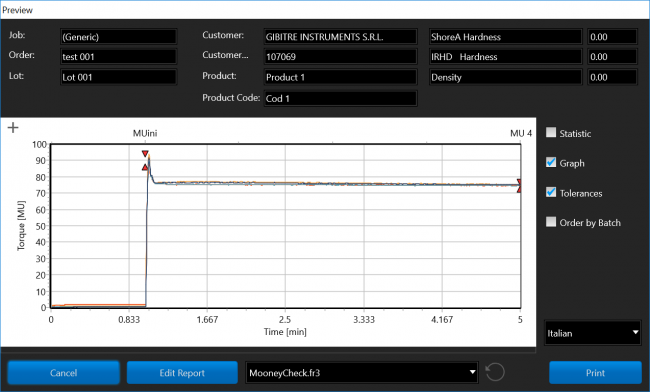

Version 10 programs make the following options available for preparing test reports:
• Selection of printing language
• Company logo insertion
• Print a single test / a Group of tests
• Print of Test Curves
• Print Numerical Results
• Print the Limits of Tolerance
• Print Statistical Results
• Print Legend with explanation of results
• Print the Operator Signature
• Print Customized Notes
• Preparation of PDF file

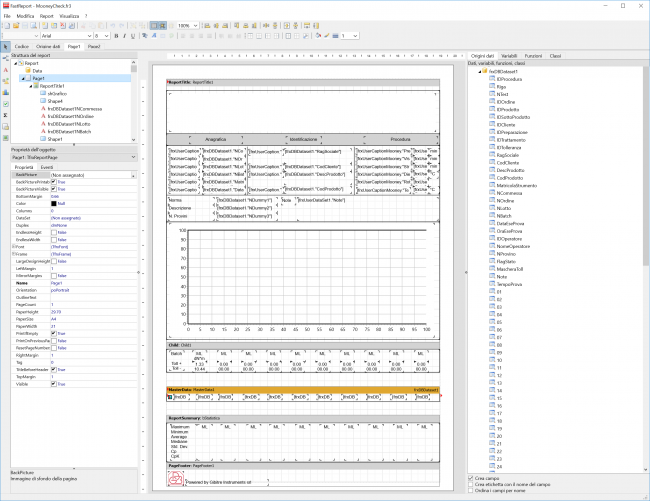

The program integrates a REPORT EDITOR that allows you to completely edit the report and prepare fully customized report formats.

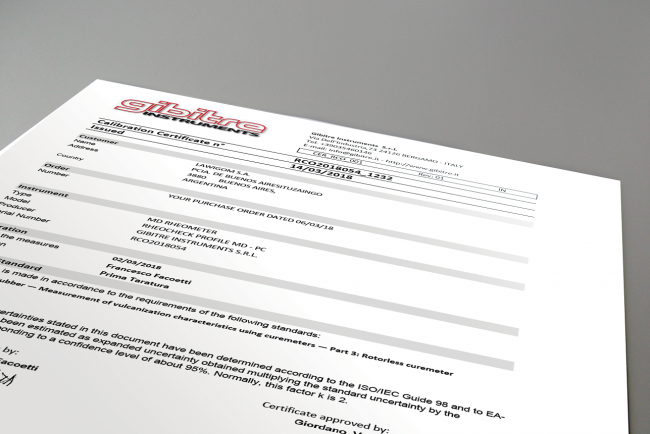

The calibration is performed in conformity with the requirements of ISO 6502-2 standard.
The service includes:
• Ordinary maintenance of the instrument
• Calibration of the temperature of the dies at 3 temperatures (177°C, 190°C).
• Calibration of the time for temperature recovery at test start at 180°C (NEW)
• Calibration of the Torque (at 50 dN*m)
• Calibration of the torque standard supplied with the instrument.
• Final check with Standard Gibitre Compound (NEW)
• Issue and e-mail shipment of the Calibration Certificate with traceability to primary standards.

All the calibrations requested by ISO 6502-2

The instrument is equipped with:
• Class 1 Safety switch, which prevents the closure of the dies if the safety panel is not closed.
• Safety Push-button
• Safety lock of the maintenance access door, which ensures safe usage even in non-standard operation conditions.
• CE Labelling
Die oscillation control Test dies
Development and production

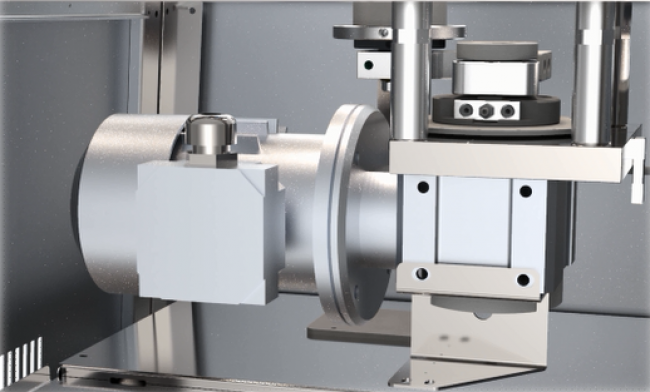

The kinematic for the oscillatory movement of the lower test chamber has been developed to ensure perfect operation of the instrument under heavy operating conditions and for extremely long periods: Siemens® motor, SKF® bearings
Calibrated gauges are supplied together with the instrument to easily set the oscillation angle to 1.0° or 3.0°.

Motor and Kinematics: the secret of longevity

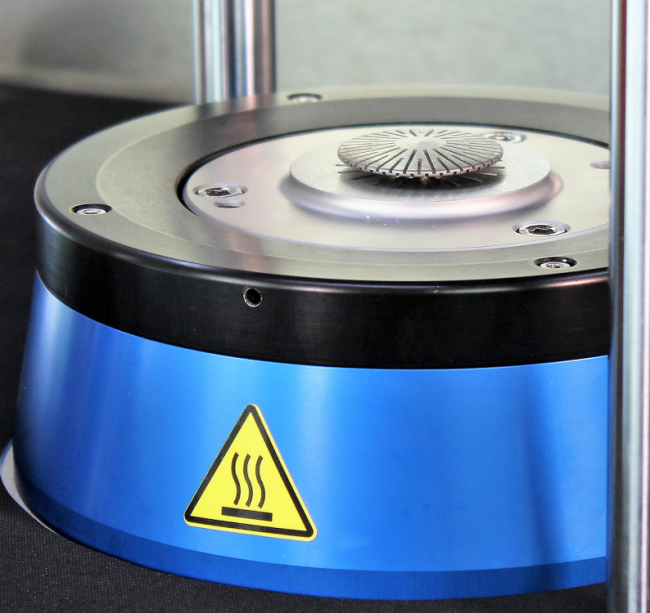

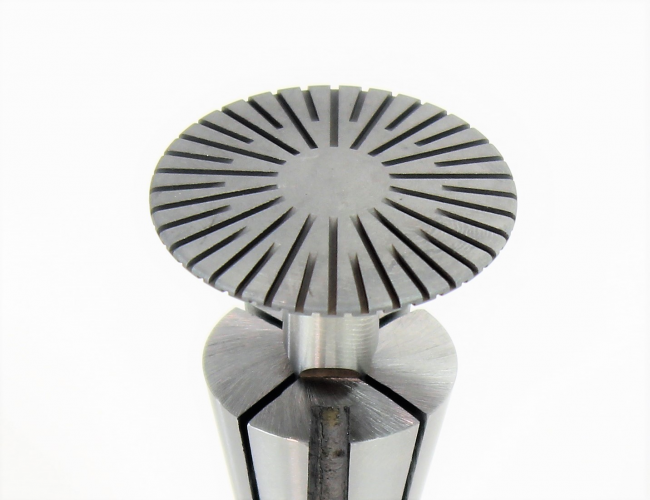

Test chamber and Rotor conforming to the international standards.
The seal around the rotor has been developed by Gibitre to ensure Low friction and long duration.

Test Dies and Rotor according to ISO 6502-2
The instrument is totally developed and produced in the plant of Gibitre Instruments in Italy.
All the mechanical parts are produced in the company workshop using modern CNC machines.
Components and sensors from well-known brands are selected in order to ensure the maximum reliability in the measures
Internal trained personnel takes care of all the production stages: assembly, start-up, calibration, packing, shipment and installation.

Proudly made in Italy

Accessories

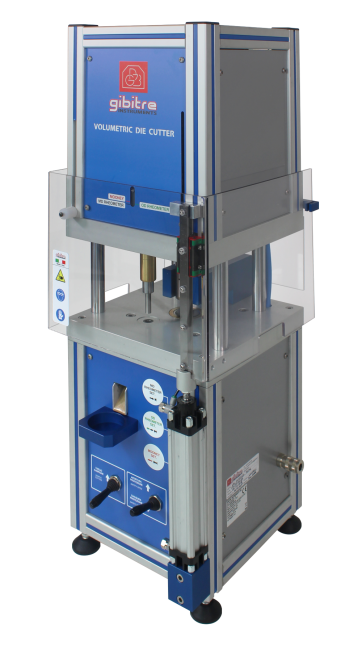

Constant Volume Sample Cutter
• Volumetric Die Cutter for the preparation of samples with constant volume required by the standard.

Samples with constant volume = Higher Repeatability

Technical specification
Reference Standards
STANDARDS THE INSTRUMENT COMPLIES WITH:
ASTM D2084; ISO 6502-1; ISO 6502-2;
Instrument Characteristics
OSCILLATION FREQUENCY
100 cycles /minute (1,7 ±0,1 Hz)
OSCILLATION ANGLE
1°, 3°. Easy adjustment with calibrated gauges
TEMPERATURE
Room Temperature to +250 °C - Resolution 0.1 °C
TORQUE SENSOR
Capacity: 220 N*m
Resolution: 0.01 dN*m
PRESSURE SENSOR (OPTIONAL)
Resolution 0.1 bar, Scale base 200 bar
Software
NUMERICAL TEST DATA

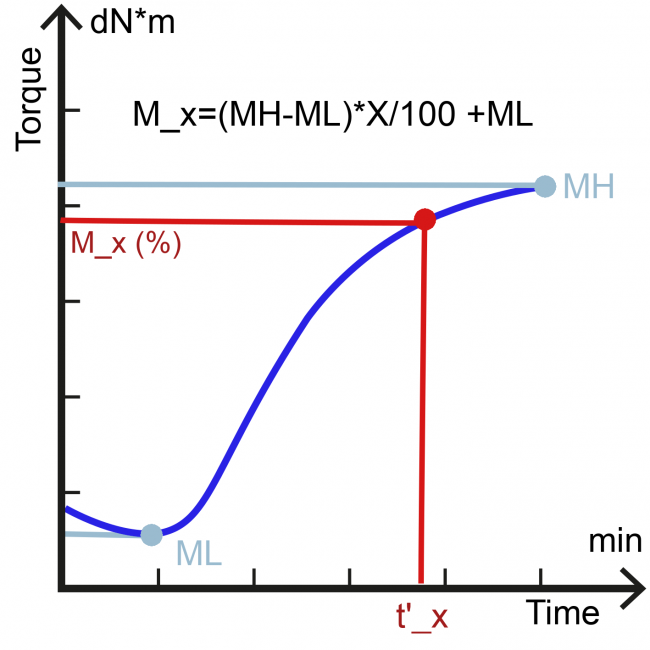

Torque Values: MI, ML, M90, MX, MH, PCR, S"@ML, TanD@ML, S"@MH, TanD@MH (X=customer-defined)
Scorch Time: tS1, tS2, tSX
Cure Time: t90, tX, tML, tMH, tPCR, tRX
Pressure (optional) PL, PH, tP, MPR, tMPR
GRAPHIC REPRESENTATION
Elastic curve (S'), Viscose curve (S"), Complex curve (S*)Tan-Delta curve, Curing speed, Upper and Lower test chamber temperatures
RESULTS STORAGE
The test result sand the curves are stored in the SQL Gibitre database which is installed in combination with the software
UNITS
Torque: dNm or lbf.in.
Time: minutes and seconds, minutes and minutes/100, seconds
Temperature: °C, °F
SOFTWARE USAGE LANGUAGES
Italian, English, French, Spanish, German, Portuguese, Russian, Chinese, Japanese, Turkish, Polish, Czech
SAFETY DEVICES
The sample holder is protected with a transparent plastic cover fitted with a safety lock. The supply source is fitted with safety button
Safety Devices
SAFETY DEVICES
Class 1 Safety switch for main piston (Idem)
Safety Pushbutton
Safety lock of the maintenance access door
CE labelling
LABELLING
CE Labelling
Calibration
CALIBRATION REPORT
Calibration report with traceability to primary standards in conformity with the Calibration requirements specified in ISO 6502-2 standard
CALIBRATED PARAMETERS
The certificate includes the calibration of:
- Torque reading
- Temperature of the dies
- Speed of temperature recovery at test start.
- Oscillation amplitude and frequency
- Closure force of the dies
- Final verification with standard compound
TORQUE SPRING FOR CALIBRATION
Torque calibration spring supplied with the instrument
Construction Characteristics
POWER SUPPLY
220 VAC ±10%,50 Hz ±3,4 A,single phase -Other on request
ELECTRICAL POWER
1100 Watt
COMPRESSED AIR
6 bar
DIMENSIONS OF INSTRUMENT
(Width x Depth x Height) 684 x 671 x 1419 mm
WEIGHT
180 Kg
Personal Computer (optional)
PERSONAL COMPUTER (OPTIONAL)
Minimum Configuration: Intel Core i5 4 GB RAM.
Compatible Operating Systems: Windows 10;
Connection to the instrument via USB Cable (included)

FAQ
The results obtained with a MD (Moving Die) rheometer are comparable with the ones obtained with OD (Oscillating Disk) Rheometer
The results obtained with the two kind of instruments have a positive correlation but they are numerically different because of:
- different instrument construction
- different sample volume
