เครื่องเขย่าตะแกรง (Sieve Analysis of up to 3 kg Sample Weight) ยี่ห้อ Nexopart รุ่น Ro-Tap® RX-29 (SIT212) เครื่องเขย่าตะแกรง (Sieve Analysis of up to 3 kg Sample Weight) ยี่ห้อ Nexopart รุ่น Ro-Tap® RX-29 (SIT212)
หมวดหมู่สินค้า: Ro-Tap Test Sieve Shaker
*ราคาอาจมีการเปลี่ยนแปลงตามอัตราแลกเปลี่ยน โปรดสอบถาม Line : @siamintercorp

22 สิงหาคม 2567

ผู้ชม 1781 ผู้ชม




Sieve Analysis of up to 3 kg Sample Weight

W.S. TYLER  Ro-Tap® RX-29 for dry sieving

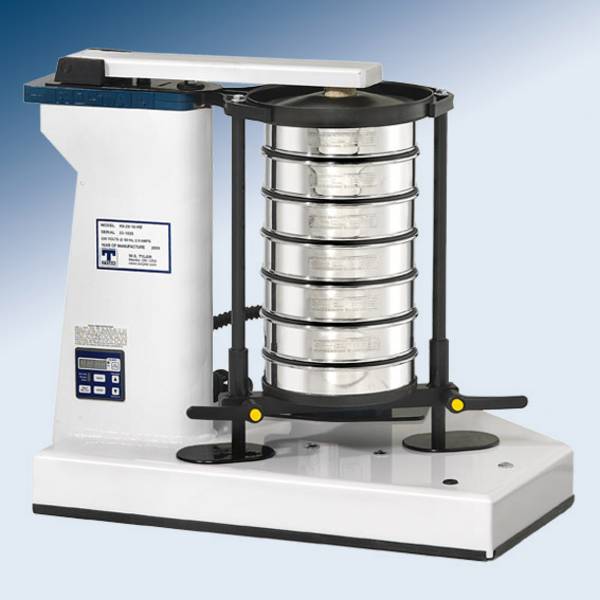

W.S. TYLER Ro-Tap RX-29  The W.S. TYLER® Ro-Tap® RX-29 for test sieves up to 203 mm diameter reproduces the circular and tapping motion of hand sieving but with an even mechanical action. The W.S. TYLER® Ro-Tap® RX-29 is manufactured by W.S. TYLER®, the American subsidiary of HAVER & BOECKER.

Most suitable machine for abrasive materials
• Enables sieving of agglomerating bulk materials.
• Prescribed in the FEPA-standard for abrasive industry.

Further advantages at a glance
• The 2D sieving action saves time and manual re-sieving.
• Easy handling – only sieving time has to be set.

Applications

W.S. TYLER® Ro-Tap® RX-29 - application examples
• Diamonds
• AbrasivesMetal powder and metal swarf
• Powder
• Tobacco
• Cacao
• Mining Industry

Suitable test sieves for your application
It depends on your application which test sieves should be used for sieve analysis with the W.S. TYLER® Ro-Tap® RX-29. It is suitable for up to 6 test sieves with full height or 13 half-height sieves and one sieve pan with a diameter of up to 203 mm (8”) or 200 mm.

Please note that the W.S. TYLER® Ro-Tap® RX-29 without cupboard does not reach the requirements of CE-labelling. We therefore recommend to use the CE-execution with safety cupboard with external control gear (W.S. TYLER® Ro-Tap® RX-29 CE).

Technical data
Sieve diameters 200 mm, 203 mm (8")
Sample weight approx. 3 kg
Operating voltage 230 Volt or 115 Volt, 50-60 Hertz
Timer 0-99 minutes
Taps per minute 150
Oscillations per minute 278
Drive electric motor with worm gear
Sound emission 86 dB
Weight ca. 82 kg (without test sieves)
Dimensions 710 x 540 x 640 mm (B x T x H)

W.S. TYLER Ro-Tap  RX-29 and RX-30
The numbering of the items in the picture (download here) corresponding to the position in the table below and allows you a correct assignment of the original part numbers from W.S. TYLER®.

By clicking on the part number you go directly to our e-shop of HAVER particle analysis. There you can order the item quickly and easily online.
  Click here or on the image to the left to see a detailed view.

Item Description Part No.
1 Base
2 Hammer
3 Hammer Block
4 Sheet Guard
5 Rotating Guard
6 Lift Rod
7 Upper Main Shaft Washer
8 Main Shaft
9 Upper Carrying Plate (plastic) RX-29
9A Upper Carrying Plate (aluminium) RX-29
9B* Upper Carrying Plate (steel) RX-30
10 Lower Carrying Plate
12 Cam Gear
13 Timing Belt Pulley
14 Eccentric Disc
15 Block
16 Sieve Cover Ro-Tap® RX-29
16A Sieve Cover Ro-Tap® RX-30
17 Sieve Support Plate RX-29
17A Sieve support plate RX-30
18 Sieve support clamp bar RX-29
18A Sieve support clamp bar RX-30
19 Backup Plate
20 Bearing Plate
21 Shield
22 Tube Spacer
23 Cam Shoulder Screw
23A 1/2" I.D. Shim
24 Main Shaft Key to Eccentric
25 Main Shaft Key - Lower
26 Hammer Pin
27 Cork Plug
29 Tie Rod
30 Motor Adaptor
31 Grommet
* position not marked
Item Description Part No.
32 Lift Rod Coupling (2 1/2" lg.)
33 Pedestal Cover
34 Flange Bearing
35 Bearing
36 Flange Bearing
37 Thrust Washer
38 Steel Bushing
39 3/8-16 NC x 2,25" Carriage Bolt
40 Sprocket-14 teeth (1800 RPM) w/Set Screw
40 Sprocket-17 teeth (1500 RPM) w/Set Screw
41 Electronic timer (230 V, 50 Hz)
41 Electronic timer (110 V, 60 Hz)
41A Timer Mounting Clip
42 Motor Standard 115/230 V, 60/50 Hz 1 Phase
42A 3/8-16 x 1" long Hex Head Screw
42B 3/8 I.D. Flat Washer
43 Timing Belt
44 Shim
45 1/2-13x2,50" long Hex Hd. Bolt
45A 1/2 I.D. Lock Washer
47 Clamp Screw
48 3/8" Lock Nut
49 1/2" Lock Nut
50 10-32x0,50" long Flat Head Socket Cap Screw
51 3/8-16x.75" long Flat Head Socket Cap Screw
51A 3/8-16x.1" long Hex Head Screw (replaces ZF-10183)
52 3/8-16x.62" long Hex Hd. Screw
53 5/16-24x1.25" long Socket Head Cap Screw
54 handles for sieve support plate (=1 pair)
55 #10-24x.25" Socket hd. Set Screw
56 3/8 I.D.x1.50" O.D. Fender Washer
60* Timer Cord w/Plug
61* Straight Connector (APC-050)
62* Flexible Conduit
