อุปกรณ์เสริม และการบำรุงรักษา (Accessories & Maintenance) (SIT182) อุปกรณ์เสริม และการบำรุงรักษา (Accessories & Maintenance) (SIT182) อุปกรณ์เสริม และการบำรุงรักษา (Accessories & Maintenance) (SIT182)
หมวดหมู่สินค้า: Cutting Machines
*ราคาอาจมีการเปลี่ยนแปลงตามอัตราแลกเปลี่ยน โปรดสอบถาม Line : @siamintercorp

แท็ก: Accessories-Maintenance

06 มิถุนายน 2567

ผู้ชม 2448 ผู้ชม


Multi-screw sample holder for irregular parts
60 CTM03 50
For machines CUTLAM®Micro 1.1 & 2.0
Screw vice holder: max Ø 12 mm
60 CTM03 30
For machines CUTLAM®Micro 1.1 & 2.0
Screw V-shape sample holder: max Ø 24 mm
60 CTM03 20
For machines CUTLAM®Micro 1.1 & 2.0
Screw double vice sample holder: Ø 12 mm maxi
60 CTM03 40

For machines CUTLAM®Micro 1.1 & 2.0
Screw cylindrical sample holder: Ø 12 mm to 50 mm
60 CTM03 10

For machines CUTLAM®Micro 1.1 & 2.0
Small vice with screw tightening system: Ø 12 mm
60 CTM02 10

For machines CUTLAM®Micro 1.1 & 2.0
Set of flanges
For machine CUTLAM®Micro 1.1
Set of flanges Ø 35 mm for cut-off wheels Ø 75 to 100 mm

For machine CUTLAM®Micro 2.0
Set of flanges Ø 35 mm for cut-off wheels Ø 75 to 100 mm

Set of flanges Ø 75 mm for cut-off wheels until Ø 230 mm
For machine CUTLAM®Micro 3.0
Set of flanges Ø 35 mm for cut-off wheels Ø 75 to 100 mm
Set of flanges Ø 50 mm for cut-off wheels Ø 125 to 150 mm
Set of flanges Ø 75 mm for cut-off wheels until Ø 230 mm

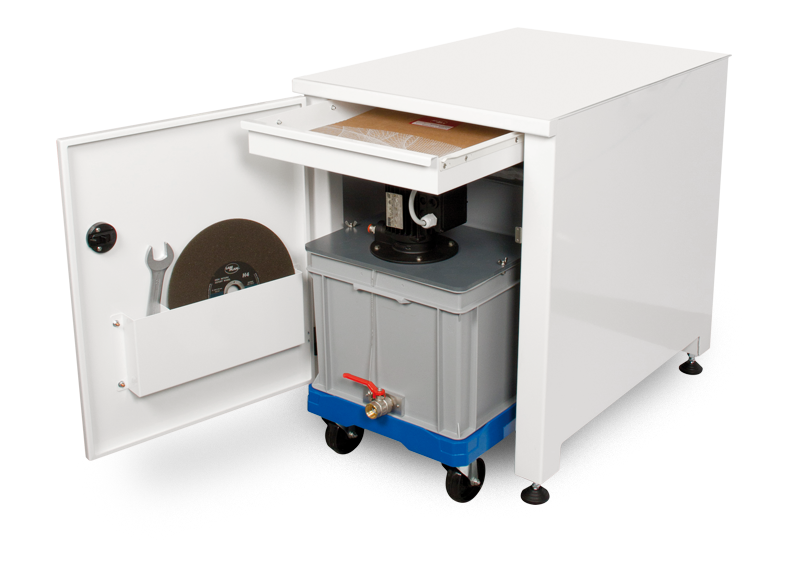

  CUTLAM® support cabinet

60 M0100 00
Solid painted-steel piece of furniture specially designed for CUTLAM® products.
It contains a storage door for tools and cut-off wheels, a drawer on top and a space for the recirculation tank. This piece of furniture is stable and has adjustable feet.

Dimensions W x H x D: 630 x 800 x 835 mm


Multi-screw sample holder for irregular parts
60 CTM03 50
For machines CUTLAM®Micro 1.1 & 2.0
Screw vice holder: max Ø 12 mm
60 CTM03 30
For machines CUTLAM®Micro 1.1 & 2.0
Screw V-shape sample holder: max Ø 24 mm
60 CTM03 20
For machines CUTLAM®Micro 1.1 & 2.0
Screw double vice sample holder: Ø 12 mm maxi
60 CTM03 40

For machines CUTLAM®Micro 1.1 & 2.0
Screw cylindrical sample holder: Ø 12 mm to 50 mm
60 CTM03 10

For machines CUTLAM®Micro 1.1 & 2.0
Small vice with screw tightening system: Ø 12 mm
60 CTM02 10

For machines CUTLAM®Micro 1.1 & 2.0
Medium vice with screw tightening system: Ø 24 mm
60 CTM021 10

For machine CUTLAM®Micro 2.0
Set of flanges
For machine CUTLAM®Micro 1.1
Set of flanges Ø 35 mm for cut-off wheels Ø 75 to 100 mm

For machine CUTLAM®Micro 2.0
Set of flanges Ø 35 mm for cut-off wheels Ø 75 to 100 mm

Set of flanges Ø 75 mm for cut-off wheels until Ø 230 mm
For machine CUTLAM®Micro 3.0
Set of flanges Ø 35 mm for cut-off wheels Ø 75 to 100 mm
Set of flanges Ø 50 mm for cut-off wheels Ø 125 to 150 mm
Set of flanges Ø 75 mm for cut-off wheels until Ø 230 mm
  CUTLAM® support cabinet

60 M0100 00
Solid painted-steel piece of furniture specially designed for CUTLAM® products.
It contains a storage door for tools and cut-off wheels, a drawer on top and a space for the recirculation tank. This piece of furniture is stable and has adjustable feet.

Dimensions W x H x D: 630 x 800 x 835 mm

Adaptor rings for cut-off wheels
For machine CUTLAM®Micro 2.0
Steel Ø 25,4 x 12,7 mm

PVC Ø 25,4 x 12,7 mm
For machine CUTLAM®Micro 3.0
Steel Ø 22 x 12,7 mm
PVC Ø 22 x 12,7 mm
Steel Ø 25,4 x 12,7 mm
PVC Ø 25,4 x 12,7 mm

  Small right vice with fast tightening system stroke 53 mm
60 CTM32 00

For machine CUTLAM®Micro 3.0
Small left vice with fast tightening system stroke 53 mm
60 CTM33 00

For machine CUTLAM®Micro 3.0
Double vice with screw tightening system (left and right side of the wheel)
60 CT200 40

For machine CUTLAM®Micro 3.0
2 x 2 element vice, without sole, to obtain maximal length clamping
Jaws width 80 mm
Jaws height 45 mm
T-slot 12 mm screw included
Left and right levers
Universal clamping KOPAL 54
60 CTM36 00

For machine CUTLAM®Micro 3.0
Transversal table (X movement) to execute parallel cuts
60 CTM31 00

For machine CUTLAM®Micro 3.0
Manual movement with a roller, stroke 55 mm, precision 0,01 mm.
Can receive right vice reference 60CT200 20 or 60 CT200 40
Automatic transversal table (X movement)
60 CTM34 00
For machine CUTLAM®Micro 3.0
Stroke 50 mm, precision 0,01 mm
Laser positioning device
60 CTM35 00

For machine CUTLAM®Micro 3.0
Set of flanges
For machine CUTLAM®Micro 1.1

Set of flanges Ø 35 mm for cut-off wheels Ø 75 to 100 mm
For machine CUTLAM®Micro 2.0
Set of flanges Ø 35 mm for cut-off wheels Ø 75 to 100 mm
Set of flanges Ø 75 mm for cut-off wheels until Ø 230 mm
For machine CUTLAM®Micro 3.0
Set of flanges Ø 35 mm for cut-off wheels Ø 75 to 100 mm

Set of flanges Ø 50 mm for cut-off wheels Ø 125 to 150 mm
Set of flanges Ø 75 mm for cut-off wheels until Ø 230 mm

CUTLAM® support cabinet
60 M0100 00
Solid painted-steel piece of furniture specially designed for CUTLAM® products.
It contains a storage door for tools and cut-off wheels, a drawer on top and a space for the recirculation tank. This piece of furniture is stable and has adjustable feet.

Dimensions W x H x D: 630 x 800 x 835 mm

Adaptor rings for cut-off wheels
For machine CUTLAM®Micro 2.0
Steel Ø 25,4 x 12,7 mm

PVC Ø 25,4 x 12,7 mm
For machine CUTLAM®Micro 3.0
Steel Ø 22 x 12,7 mm

PVC Ø 22 x 12,7 mm
Steel Ø 25,4 x 12,7 mm
PVC Ø 25,4 x 12,7 mm
