SMARTLAM®2.0 is a polisher that offers you a wide range of possibilities for both manual and semi-automatic polishing, controlled entirely by a colour touch screen with an intuitive interface. The internal memory can store 9 programmes, which can be exported via the USB port.
The power of the bidirectional rotation, variable-speed, constant -torque motor and the possibility to use plates with a diameter from 200 to 300 mm are exclusive assets that will allow you to face up to all situations encountered in metallographic research polishing.
Evolutive
Thanks to the mechanical pressure head option SPRINGLAM® and the central-pressure holders but also use of the M.M. 909 M programmable dosing unit slaved to the machine, you will have a very efficient, semi-automatic polishing system.
Technical data AMARTLAM® 2.0 |
|
|---|---|
| Plate Capacity | Ø 200 to 300 mm |
| Body | Steel, coated with epoxy paint |
| Bowl | Removable resin basin for easy cleaning |
| Control | 3,5“ touch screen to control the machine: start/stop, timer, speed and direction of plate, water solenoid valve |
| Plate rotation speed | Variable from 20 to 650 rpm |
| Rotation | Clockwise / counter-clockwise |
| Programming | Loads 9 programs |
| Connection | Slave connector for dosing unit |
| Water inlet | Removable pipe with flow-rate adjustment and safety solenoid valve |
| Power max | 0,75 kW |
| Voltage | 230 V - 50 Hz single phase |
| Dimension (WxHxD) |
450 x 300 x 650 mm |
| Weight | 30 kg |
| Reference | 60 SL200 00 |

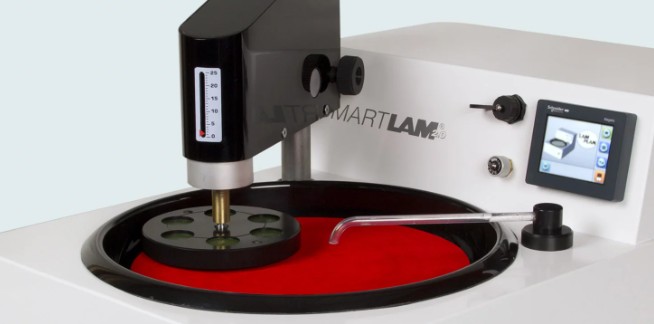

- Option: SPRINGLAM® pressure head
Use the SMARTLAM® as a semi-automatic polisher.
Two models are available, classic and low pressure.
|
SPRINGLAM classic: 0 > 250 N
|
|
|
SPRINGLAM low pressure: 0 > 50 N
 |
|
|
Attachment system for central pressure sample-holder
|

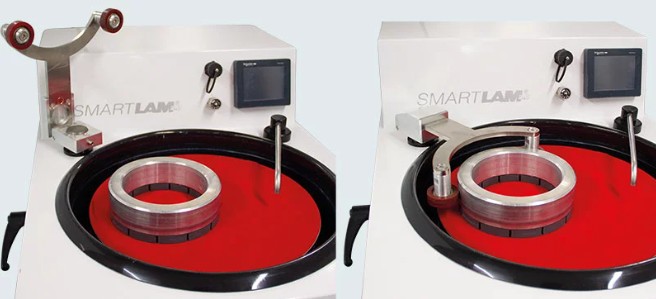

Option: lapping arm for SMARTLAM®2.0
The lapping arm for SMARTLAM®2.0 is an adaptable accessory for holding a lapping ring to prepare the surface of complex-shaped parts.
The system is compatible with rings with an internal diameter of 106 mm.
|
Lapping arm kit for SMARTLAM® 2.0
|
|
|
PVC lapping ring
|
Downloads :
Technical sheet
