CUTLAM® 4.0
The CUTLAM®4.0 is designed especially for manufacturing companies with high standards who are looking for high- quality and reliable equipment for heavy-duty use with a great cutting capacity.
La CUTLAM®4.0 is a pedestal-mounted single-block machine with an integrated recirculation/decanter tank. The wheel’s vertical descent can be controlled automatically (oleo pneumatic) or manually using the joystick. The maximum cutting descent is 240 mm.
Adapted for intensive use on heavy components, the CUTLAM®4.0 is fitted with a powerful 5.5 kW motor. The wheel’s speed is adjustable from 1000 to 4000 rpm, the feed speed is adjustable. 2 cutting modes are available: sequential automatic with adjustable frequency or continuous.
An end of cycle sensor shuts off the machine and automatically raises the wheel after each operation. The controls are easy to use and intuitive: they are centralized on the 5.7’’ arm-mounted touch-screen. The wide cast-iron clamp bench has 6 T-longitudinal grooves and 5 transversal grooves, and as an optional extra may be made mobile along the X and the A axes.
  |
Technical data CUTLAM® 4.0 |
||
|---|---|---|
| Wheel ∅ | 300 to 400 mm | |
| Shaft ∅ | 25.4 mm | |
| Standard flanges Ø | 100 mm | |
| Max cutting capacity | Ø 154 mm or 145 x 160 mm or 90 x 275 mm (with a Ø 400 mm wheel) + right and left opening for long parts) | |
| Passage under the wheel | 190 mm (with a Ø 400 mm wheel) | |
| Longitudinal movement - table | 300 mm | |
| Vertical movement | Manual | |
| Lubrication | Recirculation system, 140 litres, on casters Cleaning system integrated, with a shower head outside of the cutting chamber |
|
| Motor power | 5.5 kW | |
| Rotational sppeed | Variable, from 1000 to 4000 rpm | |
| Arm speed advance | 5 to 200 mm/min during cutting | |
| Table | Double grooved treated cast iron, 400 x 400 mm | |
| Lightening | LED | |
| Protection | Cover with locking system | |
| Body | Steel coated with epoxy paint | |
| Pneumatic feeding compressed air | 6 bars filtered 5 µm | |
| Electrical power | 6 kW cumulate | |
| Electrical consumption | 24 Ah | |
| Voltage | 400 V - 50 Hz three phase + ground | |
| Dimension (WxHxD) | 818 (+ 300 mm with control panel) x 1802 x 1280 mm | |
| Weight | 650 kg | |
| Reference | 60 CT40A 00 | |
Technical characteristics and equipment |
||
|

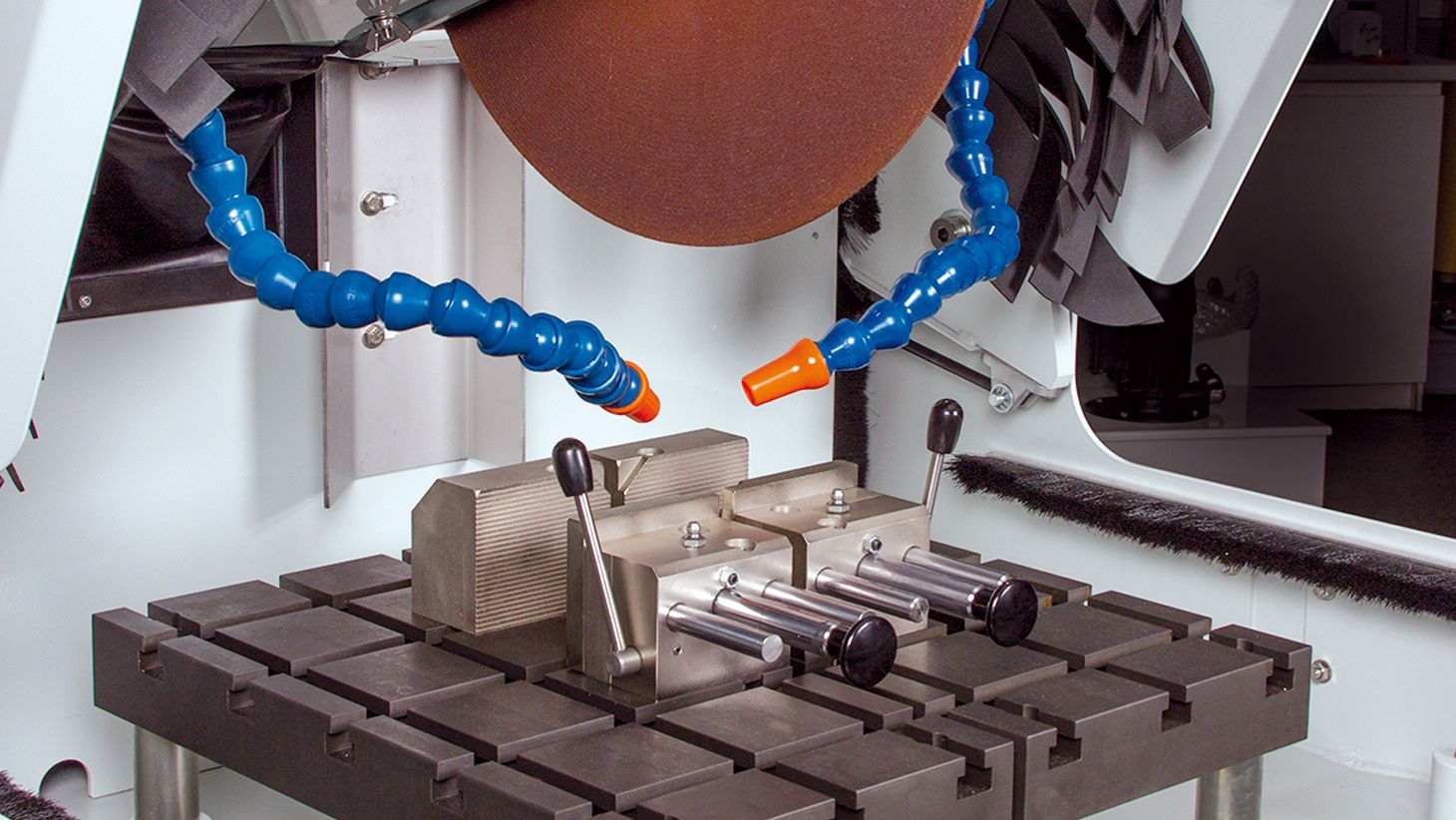

The multi-point hose over the wheel and part ensures optimum cooling for high-quality cuts and consistent results. In the standard configuration, the work area is illuminated by a adjustable spotlight, and an external shower head is provided for cleaning the cutting area. In order to optimise your equipment according to your needs, a variety of accessories and optional extras are available. Theoretical cutting capacity
|
||
Options |
||
| Table with manual longitudinal displacement (Y axis) of a 180 mm stroke | 60 CT401 00 | |
| Table with manual transversal displacement (X axis) of a 120 mm stroke | 60 CT402 00 | |
| Laser positioning device | 60 CT403 00 | |
