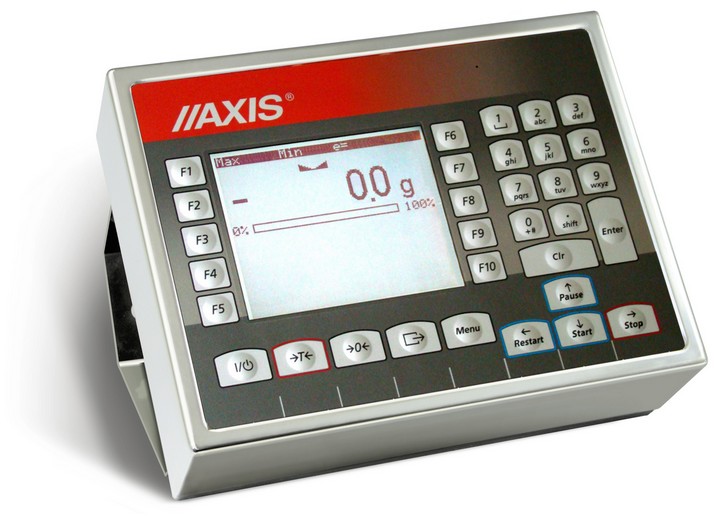

หน้าจอแสดงผลเครื่องชั่ง ME-12/N/G (Graphical)
หมวดหมู่สินค้า: Weight Indicators

10 มกราคม 2563

ผู้ชม 338 ผู้ชม



- data exchange with computer
- communication through RS-485 or LAN (option)
- function and alphanumerical keys
- big graphical display

Meters  ME-12 allow for entering additional data to scales, e.g. unitary weight, product code, to be used in special functions of scales or data collecting computer systems, packed products control, company control (stock on hand, sale). They have letter and digital keyboard and additional texts display, which allows to use text menu and displaying information from computer data base.

Technical data :
Model ME-12/N/G (Graphical)
Capacity
(number of verification units)
max 6000e (3000e for subrange in multirange operation)
Reading unit (d) 1, 2, 5, 10, ... (g, dkg, kg)
Verification unit (e) adjustable
Tare range -Max
Working temperature -10÷40°C
Dimensions 238x182x77mm
Power supply ~230V 50Hz 6VA
Weight 3kg
IP protection class IP65
Applied error fraction (pi) 0,5
Input voltage range 4,8÷19mV/9,6÷38mV/19,2÷72mV
Lowest possible input signal 0,3µV/e
Number of sensors max 8
Sensor impedance 40÷4000 Ohm
Sensor supply 5V AC 25Hz
Sensor connecting system 1 sensor: 4-wires system, 1-6 sensors: 6-wires system
Housing stainless steel
Keyboard function and alphanumerical keys
Display graphical
Certificates :
  PDF File
