เครื่องวัดค่าการสะท้อนแสงเส้นจราจร (Retroreflectometer Road Marking) ยี่ห้อ EASYLUX รุ่น MiniReflecto Horizontal

หมวดหมู่สินค้า: Retroreflectometer

สำหรับวัดค่าการสะท้อนแสงของสีตีเส้นจราจร ตามมาตรฐาน ASTM E1710, E2302, E2177, E2832, EN 1436 และ NBR14723 เป็นต้น

*ราคาอาจมีการเปลี่ยนแปลงตามอัตราแลกเปลี่ยน โปรดสอบถาม Line : @siamintercorp

17 มีนาคม 2566

ผู้ชม 6422 ผู้ชม

Certified instruments

StrausZert
DSGS - German Research Association for Road Markings Certificate No. 0913-2014-04 - MiniReflecto Horizontal

VNIIOFI
*The All-Russian Institute for Optical and Physical Measurements Federal State Unitary Enterprise. Certificate No. 72744-18 - MiniReflecto Horizontal*

Highlights

The new MINI is smart, light and robust. It is time to forget the old dinosaur’s technology.

	Android interface
	Android smartphone bluetooth interface (optional).
	Portable
	Light and small handheld instrument: only 2.1 kg and very compact dimensions.

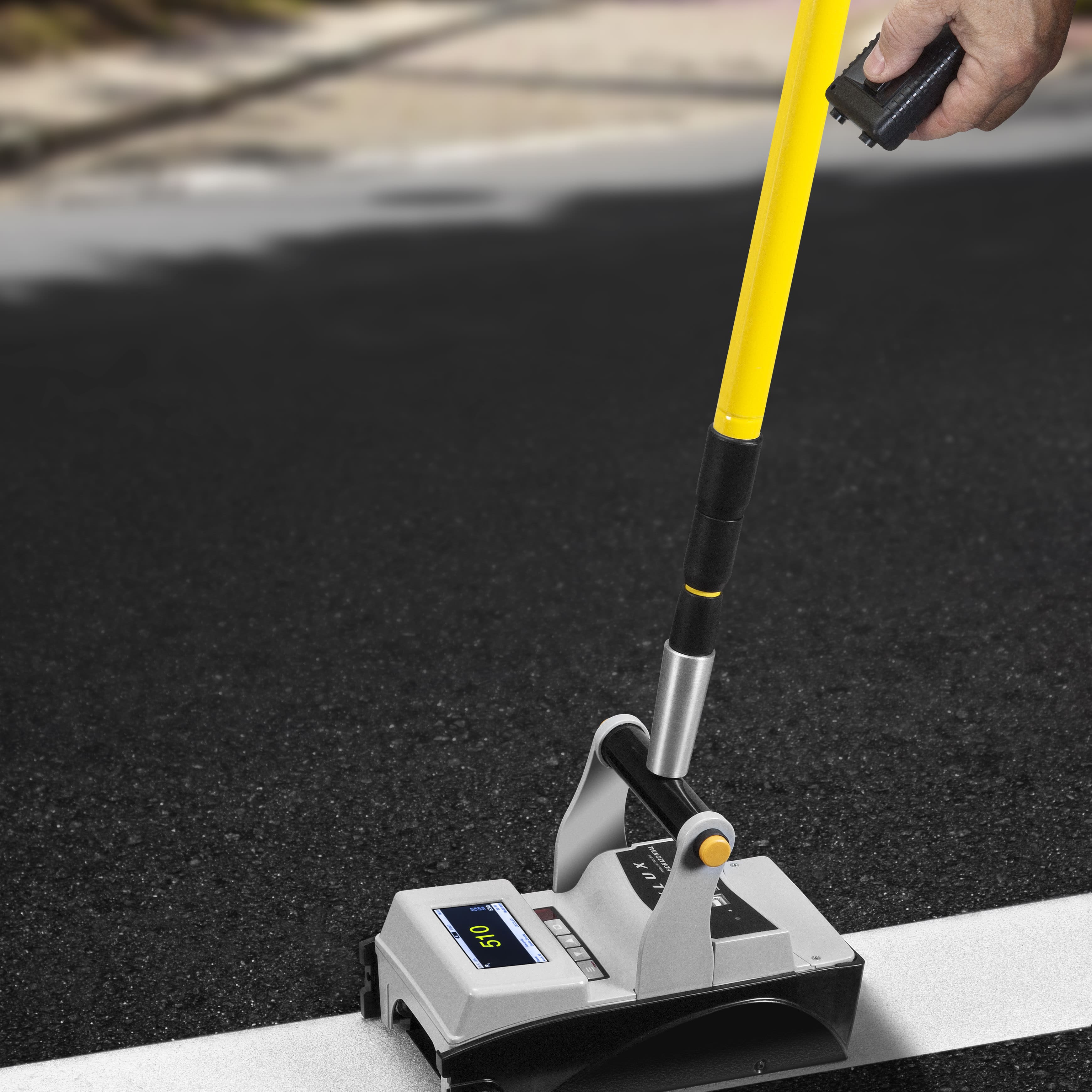

	Remote Control
	Ergonomic operation and wireless remote control.
	Fast Readings
	Fast readings : RL and Qd in 1 second
	External Beam
	Measurement of RL and Qd with External beam technology (allows RL-2 rain tests)

	Battery
	The new MINI can make around 8000 sequential measurements per battery charge. The MINI uses standard AA size batteries that are easy to and to replace at any time.
	Airplane carry-on
	Exclusive Airplane carry-on luggage compatible carrying case - dimensions sum less than 100 cm.
	Profiled marker
	Works with up to 15 mm profiled markers.
	Certificate
	Our instruments are certified to EN1436

Specifications

It is time to forget the BIG and HEAVY old technology horizontal retroreflectometers. Use your intelligence.

The new MiniReflecto Horizontal measures the night visibility (RL), the Day Visibility (Qd), the visibility under wet (RL wet) and continuous wetting conditions (RL-2 rain) of road markings.
With repeatability of 2% and reproducibility of 5% the new MINI can make around 8000 sequential measurements per battery charge. The MINI uses standard AA size batteries - easy to find and to replace at any time.

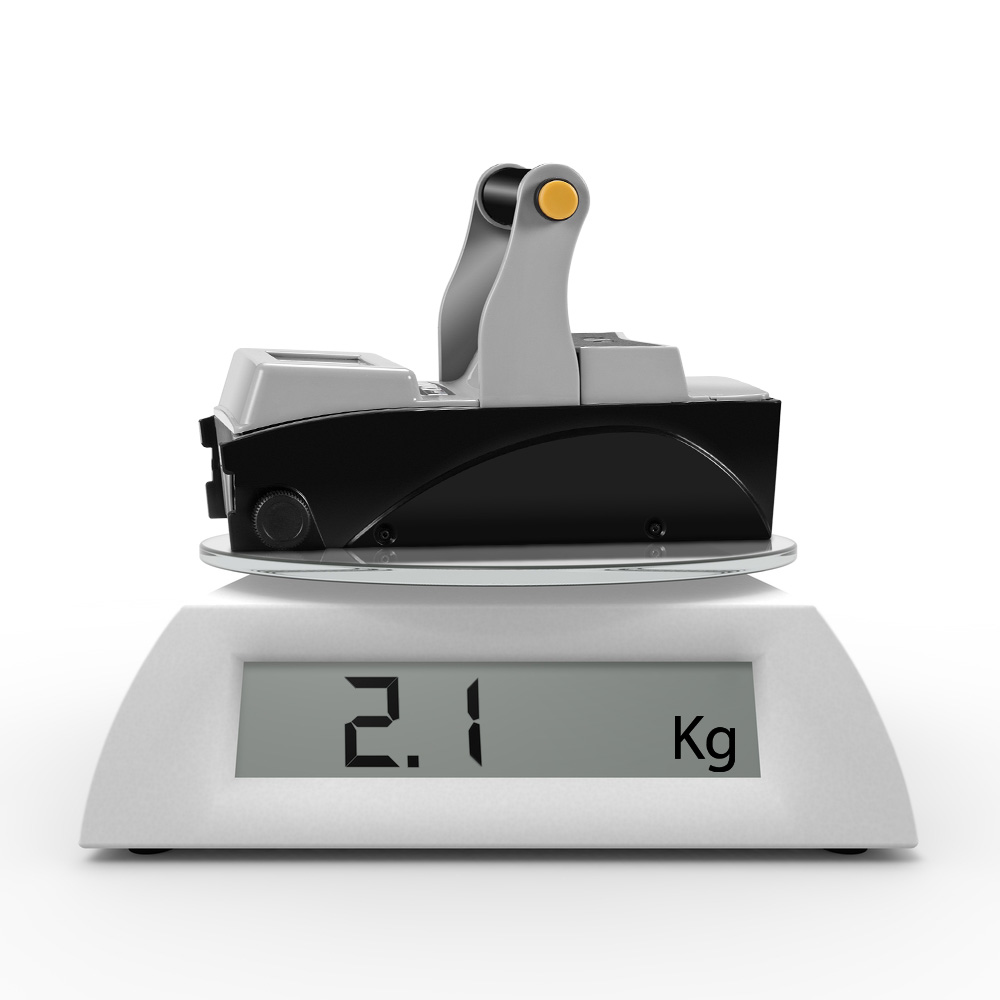

MINI weights is less than 2.1 kg - with AA batteries - and the size is very compact (255 mm x 160 mm x 220 mm). Those values are nearly half of the old technology competitors.
The MINI retroreflectometer for road markings meets all standards:
● 30-meter by ASTM E1710 and EN1436 for RL (88.76° / 1.05°). ● ASTM E2302 and EN1436 for Qd (2.29° ). ● ASTM E2177 and EN1436 for RLwet. ● ASTM E2832 and EN1436 for Continuous Wetting RL-2 . ● 15-meter by NBR14723 (86.5° / 1.5° ). (optional)
The MiniReflecto uses LED technology, which makes the instrument almost maintenance-free and energy efficient. The innovative patent pending optical system is in accordance with CIE V( ʎ ) specifications, enabling accurate measuring of all colors and types of road markings - even profiled up to 15 mm.

	Tilt meter
	Indicates the gradient (tilt) of the floor plane.

	LCD Sun Readable
	Color transflective (sun readable) LCD with touchscreen.

	Car adapter
	Battery charger compatible with car cigarette lighter adapter (12 V).

	LCD Sun Readable
	Color transflective (sun readable) LCD with touchscreen.

Approved by independent laboratory	Intertraffic World 2016 Article	Intertraffic World 2017 Article


Intertraffic World 2018 Article	Products Catalog

General Characteristics

Dimensions

Standards
