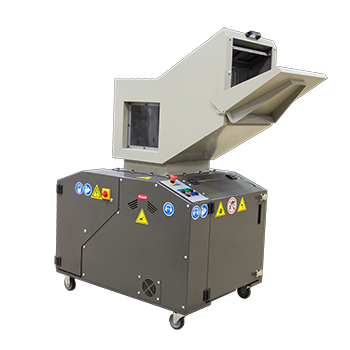

เครื่องบดพลาสติก (Beside-The-Press Granulator) ยี่ห้อ Cumberland รุ่น FX 1000 (SIT37)
หมวดหมู่สินค้า: Plastic Granulators
เครื่องบดพลาสติก หรือ เครื่องบดย่อยพลาสติก (Plastic Granulator) แบบ Beside-The-Press สำหรับบดย่อยพลาสติกชนิดต่างๆ
*ราคาอาจมีการเปลี่ยนแปลงตามอัตราแลกเปลี่ยน โปรดสอบถาม Line : @siamintercorp

05 มกราคม 2567

ผู้ชม 3237 ผู้ชม

Cumberland’s Beside the Press FX1000 Series allows easy access to the screen cradle and cutting chamber. The rotor is wide open, making cleaning and knife changes quick and easy. An improved discharge seal minimizes regrind leakage, while a larger discharge bin offers more uptime. Optional viewing windows on the hopper offer the opportunity to watch material being processed. This gives you the ability to gauge how full the cutting chamber is and verify consistent material flow without having to shut the machine down.
Superior Maintenance Access
  • Industry leading access to cutting chamber and screen cradle
  • Improved all discharge seals and increased manual bin volume
  • Optional hopper viewing windows for instant visual of the cutting chamber
Application Flexibility
  • Tangential and offset chamber geometry provides flexibility to size the chamber to your exact production needs
  • Configure your system with a variety of customizable options such as infeeds, hopper styles, and evacuation systems
Enhanced Safety
  • Category 3 redundant safety circuit with 2 sets of contacts, short circuit protection, meets ISO-12100 standards
  • Hopper viewing windows (optional) and sound dampened enclosures
Resources

Technical SpecificationTechnical Specifications

Product Brochure

Standard Features
  • Steep Angle Rotor Knives
  • 3 Blade Open Rotor
  • 2 Bed Knives
  • 1 Piece Reversible Screen
  • Double-Walled Hopper & Base Construction
  • NEMA 12 Control Enclosure for 230 or 460 Volts
  • Tangential Chamber Geometry
Option Features
  • Offset Cutting Chamber
  • Abrasion Resistant Cutting Chamber (1018)
  • Conveyor Feed Hopper with Window
  • Adjustable Tray Feed, Side Feed Hopper, Feedroll Infeed, or Custom Hoppers Available
  • Digital Amp Meter with Dual Set Point
  • CE Compliant or Custom Voltages Available
  • Machine Mounted Blower, Vacuum or Airveyor Discharges
Typical Application
  • Injection molded runners and reject parts
  • Blow-molded parts and tops/tails
  • Extruded tubes and profiles
  • Edge trims from sheet extrusion
