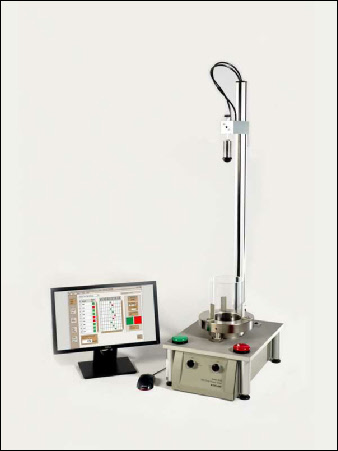

เครื่องทดสอบการตกกระแทกของฟิล์ม (Dart Drop Impact Tester) รุ่น DX-8300 Series เครื่องทดสอบการตกกระแทกของฟิล์ม (Dart Drop Impact Tester) รุ่น DX-8300 Series เครื่องทดสอบการตกกระแทกของฟิล์ม (Dart Drop Impact Tester) รุ่น DX-8300 Series
เป็นเครื่องทดสอบการตกกระแทกของฟิล์ม (Dart Drop Impact Tester) ตามมาตรฐาน ASTM D 1709 Method A และ B พร้อมโปรแกรมสำหรับการคำนวณผลการทดสอบ

แท็ก:

16 กันยายน 2561

ผู้ชม 32 ผู้ชม

Improved Film and Sheet Quality, Increased Profit Margins
The Series DX-8300 Dart Impact Tester is a proven tool for more closely controlling nominal and peak strength characteristics to speed your:
  • Production and additives settings and adjustments
  • Research and development of new film and sheet products
  • Inspection of incoming film and sheet products
  • In-process checks to ensure on-spec product for converting operations

Advanced Technical Features

Full Electronic Operation
Provides Advanced Safety Features plus Software and PC Connectivity.

Industry-Leading Software
Automate your Tester with the DX-8300 Dart Drop Software; allows Pass-Fail testing plus Staircase testing to automate ASTM D1709 testing requirements.

Easy Pneumatic-assisted Operation
Operates with pneumatic-assist for dart release and film/sheet sample clamping. Pneumatic-assisted clamping and dart release is useful for higher clamping forces without the requirement for large, inefficient electromagnetic releases.

Expandable; Flexible Operation for Method A & B Testing
Portable and expandable with models for Method A testing, or Method A & B combination testing. Extensions and custom dart stems & weights available for testing to your in-house developed requirements.

Affordable
Best of all, the series DX-8300 is economically priced. Comes complete with everything needed to run tests.

Technical Data

Technical Data
  Model DX-8385-A Model DX-8385-AB
Mode of Operation: Off-line testing / lab use
Materials: All sheet materials
Test Method Drop Height: Method A 26 in. (66 cm) Methods A & B 26 in. (66 cm) and 60 in. (152 cm)
Actuation Method: Electronic
Dart Release Mechanism: Pneumatic
Sample Clamp Mechanism: Pneumatic
Dart Sets Included: Method A
(412 gram), (2)120 gr., (1)60 gr., (1)30 gr., (2)15 gr., (2)5 gr.
Method B
(412 gram), (2)120 gr., (1)60 gr.,
(1)30 gr., (2)15 gr., (2)5 gr.
Optional Weights: (ASTM D1709 Suggested) Method A
(8)60 gr., (8)30 gr., (8)15 gr., (2)5 gr.
Method B
(8)90 gr., (8)45 gr., (2)15 gr.
Dart Head Material Provided: Phenolic Phenolic (Method A) / Stainless (Method B)
Optional Dart Head Materials: Aluminum / Stainless Steel Aluminum
Air Requirements: 60 psi / Dry & Filtered
Power Requirements: 115 VAC or 230 VAC
Overall Height: 48 inch 80 inch
Weight: 55 lb 65 lb
(Due to continuous product improvement, all specifications are subject to change without notice.)
